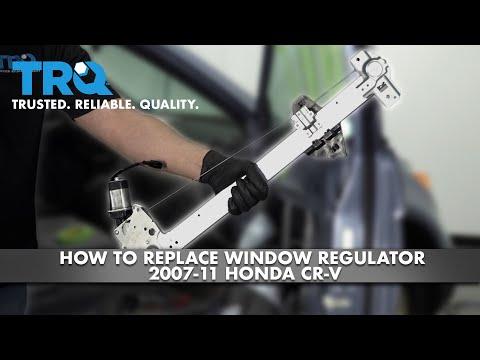

🔧 CR-V - Front Window Regulator Replacement

The front window regulator is the track-and-cable (or scissor) mechanism that raises and lowers your window glass. When it wears out, the window may move slowly, tilt, pop, or stop working. This job is mostly door-panel removal plus swapping the regulator inside the door.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

Quick questions (pick one each): Which front door are you replacing (Driver/Left or Passenger/Right)? And are you replacing regulator only or the regulator with motor assembly?

---

⚠️ Safety & Precautions

• Wear gloves and safety glasses—door sheet metal edges are sharp.
• Support the window glass with tape before unbolting it, or it can drop suddenly.
• Keep fingers out of the regulator tracks and cable path.
• Disconnect the negative battery cable to prevent accidental window movement while your hands are inside the door.
• Do not tear the clear plastic vapor barrier; it helps prevent water leaks into the cabin.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 6" socket extension
• Phillips screwdriver
• Flat trim panel tool
• Panel clip pliers
• Needle-nose pliers
• Painter’s tape (2")
• Pick tool
• Torque wrench (in-lb or low-range ft-lb)
• Work light
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator (Left/Driver or Right/Passenger) - Qty: 1
• Front window regulator motor - Qty: 1 (only if not included or if you’re replacing the motor too)
• Door panel retainer clips - Qty: 5-10 (optional, replace any that break)
• Butyl tape (vapor barrier adhesive) - Qty: 1 (optional, if the original won’t reseal)

---

📋 Before You Begin

• Park on level ground and turn the ignition OFF.
• Open the front door you’re working on fully for access.
• Use a 10mm socket to disconnect the negative battery cable, then wait 2 minutes.
• If the window still moves, turn the key ON briefly and lower the window until you can access the glass-to-regulator bolts through the door access holes, then turn the key OFF and disconnect the battery again.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the switch panel and door handle trim

• Use a flat trim panel tool to gently pry up the power window switch panel.
• Unplug the electrical connectors by releasing the tabs with a pick tool.
• Use a Phillips screwdriver to remove any visible screws behind trim caps (pop caps with the pick tool first).
• Trim tool = plastic pry tool to avoid scratches.

Step 2: Remove the front door panel

• Use a Phillips screwdriver to remove the screw(s) in the door pull/armrest area.
• Use a flat trim panel tool to start popping the door panel clips free around the edges.
• Use panel clip pliers to pull stubborn clips straight out (helps prevent breaking them).
• Lift the door panel upward to unhook it from the window ledge.
• Disconnect the door handle cable(s): use needle-nose pliers to rotate the plastic retainer out, then lift the cable end out of the handle.

Step 3: Peel back the vapor barrier

• Carefully peel the plastic vapor barrier back using your hands and a flat trim panel tool.
• If the butyl adhesive strings everywhere, use the trim panel tool to “roll” it off instead of yanking.
• Do not fully remove it unless necessary—just open enough area to access the regulator and glass bolts.

Step 4: Secure the window glass

• If the glass is still attached to the regulator and you can move it by hand, slide the glass until the clamp/bolt area lines up with the door access holes.
• Use painter’s tape (2") to tape the glass to the door frame (run 2–3 vertical strips from outside glass over the top into the inside).
• This prevents the glass from dropping when you remove the clamp bolts.

Step 5: Unbolt the glass from the regulator

• Through the access holes, use a 10mm socket, ratchet, and extension to remove the glass clamp bolts.
• Once bolts are out, gently push the glass up by hand until it’s fully up, then add more painter’s tape to hold it.
• When reinstalling later: Torque to 9 N·m (80 in-lb).

Step 6: Disconnect the regulator motor electrical connector

• Locate the motor connector on the regulator inside the door.
• Press the tab and unplug it (use a pick tool only if the tab is stuck).

Step 7: Remove the regulator (and motor if included)

• Use a 10mm socket, ratchet, and extension to remove the regulator mounting bolts.
• Carefully maneuver the regulator out through the large opening in the door.
• If you’re reusing the motor: remove the motor from the old regulator using a Phillips screwdriver (or the fastener type on your unit) and transfer it to the new regulator.
• When installing regulator bolts later: Torque to 9 N·m (80 in-lb).

Step 8: Install the new regulator

• Slide the new regulator into the door the same way the old one came out.
• Hand-start all bolts first to avoid cross-threading, then tighten using a 10mm socket and ratchet.
• Finish with a torque wrench: Torque to 9 N·m (80 in-lb).
• Plug in the motor connector until it clicks.

Step 9: Reattach the glass to the regulator

• Remove some tape so the glass can lower carefully into position.
• Guide the glass into the regulator clamp(s) by hand.
• Install the clamp bolts using a 10mm socket and ratchet.
• Finish with a torque wrench: Torque to 9 N·m (80 in-lb).

Step 10: Test operation before reassembling the door

• Reconnect the negative battery cable using a 10mm socket.
• Reconnect the window switch temporarily and cycle the window up/down while watching that the glass stays straight and doesn’t bind.
• If it tilts or chatters, stop and re-check that the glass is seated correctly in the clamps.
• Disconnect the negative battery cable again using a 10mm socket before finishing reassembly.

Step 11: Reinstall vapor barrier and door panel

• Press the vapor barrier back into the sticky butyl. If it won’t stick, apply butyl tape to reseal.
• Reconnect the door handle cable(s) (use needle-nose pliers if needed).
• Hang the door panel on the top ledge, then press the clips in around the edges.
• Reinstall screws using a Phillips screwdriver, then reinstall trim caps using a pick tool.
• Reconnect the switch panel connectors and snap the switch panel back in using hand pressure.

---

✅ After Repair

• Reconnect the negative battery cable using a 10mm socket.
• Cycle the window 5–10 times and listen for clicking/grinding (should be smooth).
• If your auto-up/auto-down doesn’t work, initialize the window: hold the switch to fully lower the window, keep holding 2 seconds; then fully raise it and keep holding 2 seconds.
• Check for water leaks later by running water over the window and confirming the carpet stays dry.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor, per front door)

DIY Cost: $90-$250 (parts only, per front door)

You Save: $260-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
