🔧 F-150 - Power Steering Pump Replacement

The power steering pump supplies hydraulic pressure so the steering turns smoothly. If it’s leaking, whining, or not building pressure, replacing the pump (and sealing the pressure fitting with a new O-ring) is the correct fix.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🛑 Work on a cool engine; hot parts and fluid can burn.
• 🛑 Support the truck with jack stands if you lift the front; never rely on a jack.
• 🛑 Keep power steering fluid off the serpentine belt and pulleys (it can cause belt slip).
• 🛑 Wear safety glasses; fluid can spray when hoses are removed.
• 🛑 Battery disconnect is recommended before working near the fan/belt area.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Drain pan (at least 2-gallon)
• Shop rags
• Funnel
• 3/8" drive ratchet
• 3/8" drive extension set
• Socket set (8mm, 10mm, 13mm)
• Serpentine belt tool or 1/2" breaker bar
• Line wrench set (18mm)
• Torque wrench (10-80 ft-lbs range)
• Power steering pulley puller/installer set (specialty)
• Hose clamp pliers
• Hose pinch-off pliers
• Trim/pick tool set

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Power steering pump - Qty: 1
• Power steering pressure line O-ring seal - Qty: 1
• Power steering fluid (MERCON V ATF) - Qty: 2-3 quarts
• Return hose clamp - Qty: 1
• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• If you can, lift the front end with a floor jack and set it on jack stands so the front tires are off the ground (this makes bleeding easier).
• Disconnect the negative battery cable using a 10mm socket and move it aside so it can’t spring back.
• Locate the serpentine belt routing diagram (usually on the radiator support) or take a clear photo before removing the belt.
• Tip: Clean around hoses before disconnecting.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve belt tension and move the belt off the pump pulley

• Use a serpentine belt tool or 1/2" breaker bar on the belt tensioner to rotate it and release tension.
• Slip the belt off the power steering pump pulley and slowly let the tensioner return.
• If you’re replacing the belt, remove it fully and set it aside.

Step 2: Drain the reservoir and prep for hose removal

• Place a drain pan under the pump area.
• Use hose pinch-off pliers to gently clamp the return hose (this reduces mess).
• Remove the reservoir cap and use a funnel and shop rags to keep the area clean.

Step 3: Disconnect the return hose

• Use hose clamp pliers to move the clamp back on the return hose.
• Twist the hose free (use a trim/pick tool set carefully if it’s stuck), then pull it off and aim it into the drain pan.
• Plug/cap the hose end with a clean rag to keep dirt out.

Step 4: Disconnect the high-pressure line

• Clean the fitting area with shop rags so debris can’t enter the system.
• Use an 18mm line wrench to loosen the high-pressure line fitting at the pump.
• Once loose, finish by hand and direct any fluid into the drain pan.
• Remove and discard the old pressure line O-ring seal.
• Tip: A line wrench helps prevent rounding.

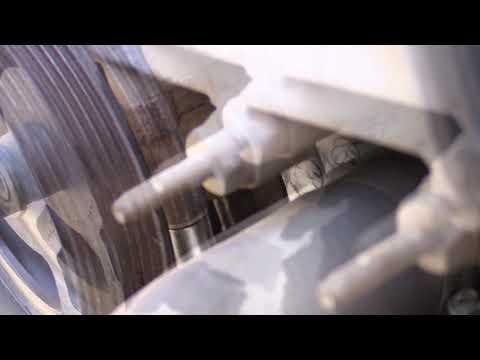

Step 5: Remove the pump from its bracket

• Remove the pump mounting bolts using a 13mm socket with a 3/8" drive ratchet and extensions.
• Support the pump as you remove the last bolt, then lift it out.

Step 6: Transfer the pulley to the new pump

• The pulley is press-fit (no nut). Use a power steering pulley puller/installer set (specialty).
• Use the puller to remove the pulley from the old pump.
• Use the installer to press the pulley onto the new pump shaft until it matches the original installed depth (pulley alignment must be straight with the other pulleys).
• Tip: Crooked pulley = belt squeal and failures.

Step 7: Install the new pump

• Set the pump into position and start the mounting bolts by hand.
• Tighten the mounting bolts with a 13mm socket, then Torque to 25 Nm (18 ft-lbs) using a torque wrench.

Step 8: Reconnect the high-pressure line with a new seal

• Install the new pressure line O-ring seal (lightly wet it with clean MERCON V ATF first).
• Thread the pressure fitting in by hand to avoid cross-threading.
• Tighten with an 18mm line wrench, then Torque to 27 Nm (20 ft-lbs) using a torque wrench if your tool setup allows.

Step 9: Reconnect the return hose

• Slide the return hose onto the pump nipple fully.
• Position the clamp using hose clamp pliers (replace the clamp if it’s weak or rusted).
• Remove the hose pinch-off pliers.

Step 10: Reinstall the serpentine belt

• Route the belt according to the underhood diagram (or your photo).
• Use a serpentine belt tool or 1/2" breaker bar to rotate the tensioner and slip the belt onto the power steering pump pulley.
• Double-check the belt is seated in every pulley groove.

Step 11: Fill and bleed the power steering system

• Fill the reservoir with MERCON V ATF using a funnel to the correct level.
• With the engine OFF and front tires off the ground, slowly turn the steering wheel from lock-to-lock 15–20 times.
• Check the fluid level and top off as needed (don’t let it run dry).
• Start the engine and let it idle. Turn lock-to-lock 5–10 times slowly.
• Watch for foaming; if it foams, shut off and let it sit 10 minutes, then repeat the bleed.

---

✅ After Repair

• Check for leaks at the pressure fitting and return hose with the engine running.
• Verify the steering is smooth and quiet during a short test drive.
• Recheck the fluid level after the test drive and top off with MERCON V ATF if needed.
• Inspect belt tracking: the belt should run centered on the pump pulley.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $120-$300 (parts only)

You Save: $330-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
