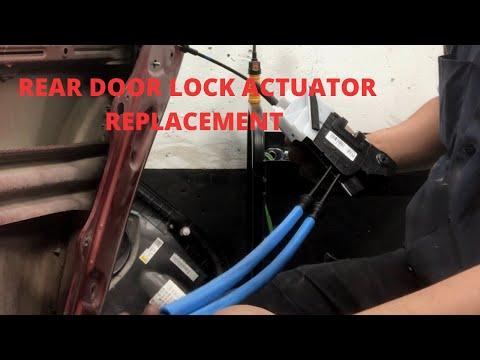

🔧 Tucson - Rear Door Lock Actuator Replacement

The rear door lock actuator is the electric motor/gear unit that locks and unlocks the rear door. On your Tucson, it’s typically serviced as part of the rear door latch/actuator assembly inside the door.

Assumption: Rear door latch and actuator are serviced as one assembly; fastener types can vary slightly by production date.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work with the ignition OFF and key/fob away from the vehicle so the locks can’t cycle unexpectedly.
• ⚠️ Disconnect the negative battery terminal before unplugging door wiring to reduce risk of short circuits.
• ⚠️ Wear gloves—inner door metal edges can be razor sharp.
• ⚠️ Support the door panel as you remove it so it doesn’t hang by the wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4" drive)
• Torx T30 screwdriver
• Phillips #2 screwdriver
• Small flat trim screwdriver
• Plastic trim removal tool set
• Needle-nose pliers
• Pick tool
• Torque wrench (in-lb or small Nm range)
• Panel clip removal tool
• Painter’s tape
• Shop light
• Mechanic gloves
• Safety glasses
• 10mm wrench

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear door lock actuator/latch assembly - Qty: 1
• Rear door trim panel clips - Qty: 6-12
• Butyl tape (vapor barrier adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Lower the rear window about halfway (this gives you more hand room inside the door).
• Use a 10mm wrench to disconnect the negative battery terminal and isolate it so it can’t spring back.
• Put painter’s tape along the door edge/paint near the handle area to prevent scratches.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear door switch/trim pieces

• Use a plastic trim removal tool set to gently pry up the window switch panel.
• Unplug the switch connector(s) and set the switch panel aside.
• Use a small flat trim screwdriver to pop off any small screw covers in the pull handle/armrest area.

Step 2: Remove screws holding the door panel

• Use a Phillips #2 screwdriver to remove the screws in the armrest/pull handle area.
• If your panel uses bolts instead of Phillips screws in the handle area, use a 10mm socket with a 1/4" drive ratchet.

Step 3: Pop the door panel clips loose

• Use a panel clip removal tool to work around the bottom and sides of the door panel and pop the clips out.
• Pull straight out to avoid breaking clips.

Step 4: Lift the door panel off the window ledge

• With clips released, lift the panel straight upward to unhook it from the top window channel.
• Support the panel close to the door (don’t let it hang).

Step 5: Disconnect inner handle cable and remaining wiring

• Find the inside door handle cable (a sheathed cable with a ball-end). Use a pick tool to flip the cable retainer open.
• Lift the cable end out of the handle lever, then slide the cable housing out of its bracket.
• Unplug any remaining connectors using a small flat trim screwdriver only as needed to release tabs.
• Set the door panel somewhere safe.

Step 6: Peel back the vapor barrier

• Carefully peel the plastic vapor barrier back using a plastic trim removal tool set.
• Try not to tear it. If the butyl adhesive strings, it’s normal—keep it clean so it reseals.

Step 7: Disconnect the latch/actuator electrical connector

• Locate the latch/actuator connector near the rear edge of the door inner skin.
• Press the lock tab and unplug it. Use a pick tool gently if the tab is stubborn.

Step 8: Disconnect the rods/cables going to the latch

• You may have a rod (metal linkage) for the outer handle and/or a cable, depending on build.
• Use needle-nose pliers to rotate the plastic retainer clip off the rod, then lift the rod out of the hole.
• For a cable, use a pick tool to open the retainer, then unhook the ball end.
• Take a photo first for reassembly.

Step 9: Remove the latch/actuator assembly from the door

• On the door edge (where the latch grabs the body striker), remove the latch screws using a Torx T30 screwdriver.
• Support the latch as the last screw comes out so it doesn’t drop inside the door.
• Work the latch/actuator assembly out through the access opening in the door.
• Torque to 8-10 Nm (71-89 in-lbs) when reinstalling the latch screws.

Step 10: Install the new rear door lock actuator/latch

• Transfer any brackets/grommets from the old unit to the new one (use a pick tool as needed).
• Slide the new latch/actuator into position inside the door.
• Install the door-edge latch screws by hand first, then tighten with a Torx T30 screwdriver.
• Torque to 8-10 Nm (71-89 in-lbs).

Step 11: Reconnect rods/cables and the electrical connector

• Reconnect the outer handle rod/cable to the latch and fully lock the plastic retainers back into place (use needle-nose pliers if needed).
• Plug the latch/actuator connector back in until it clicks.
• Gently tug each rod/cable to confirm it’s secured.

Step 12: Re-seal the vapor barrier

• Press the vapor barrier back into the butyl adhesive all the way around.
• If it won’t stick, apply butyl tape and press firmly by hand.

Step 13: Reinstall the door panel

• Reconnect the inner handle cable to the handle (hook the ball end first, then seat the housing and close the retainer) using a pick tool if needed.
• Reconnect any wiring connectors.
• Hang the panel on the top window ledge and push straight down to seat it.
• Align clips and press around the perimeter to snap them in.

Step 14: Reinstall screws and switch panel

• Reinstall the armrest/handle screws using a Phillips #2 screwdriver (or 10mm socket if equipped).
• Reconnect the window switch connector(s), then snap the switch panel back in using a plastic trim removal tool set.

Step 15: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm wrench.

---

✅ After Repair

• With the door open, test lock/unlock using the key fob and the driver’s lock switch.
• Test the inside handle and outside handle: the door should open smoothly and the lock should prevent opening when locked.
• Close the door and confirm the latch fully catches (no bouncing back).
• If the door won’t open from inside or outside, recheck the rod/cable routing and that the retainers are fully clipped.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $120-$280 (parts only)

You Save: $230-$370 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
