🔧 F-150 - Front Window Regulator Replacement

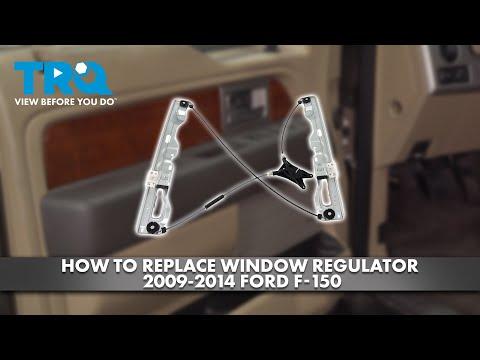

The front window regulator is the cable-and-track mechanism that moves the glass up and down. Replacing it involves removing the door panel, securing the glass, swapping the regulator (and motor if equipped as an assembly), then reinitializing the window if it has auto up/down.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours per door

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before door work; the front doors can contain a side airbag and you don’t want an accidental deployment.
• Wait at least 5 minutes after battery disconnect before unplugging door connectors.
• Support the window glass with tape before loosening the clamps; the glass can drop suddenly.
• Wear gloves; the door’s inner metal edges are sharp.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim removal tool set
• Small flat-blade screwdriver
• Phillips screwdriver
• 1/4" drive ratchet
• 3/8" drive ratchet
• 7mm socket
• 8mm socket
• 10mm socket
• Extension set (3" and 6")
• Torque wrench (inch-pound)
• Torque wrench (foot-pound)
• Painter’s tape (2" wide)
• Pick tool
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator - Replace in pairs (recommended) - Qty: 2
• Front window regulator motor - Only if not included with regulator - Qty: 1-2
• Door trim panel push clips - Qty: 6-12
• Vapor barrier butyl tape - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and keep the key out of the truck.
• Lower the window to about halfway if it still moves; this usually exposes the glass-to-regulator clamp bolts.
• Disconnect the battery using a 10mm socket on the negative terminal and wait 5 minutes.
• Trim tools beat screwdrivers for clip removal. A trim removal tool is a flat plastic lever that pops panels off without scratching.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the front door trim panel

• Use a trim removal tool set to pry up the window/lock switch panel and disconnect the electrical connectors.
• Use a small flat-blade screwdriver to pop off any small screw covers in the pull handle/armrest area.
• Remove the door panel screws using a 7mm socket.
• Use a trim removal tool set to pop the perimeter clips free, then lift the panel straight up and off the door.
• Disconnect any remaining connectors and the door handle cable (use a pick tool if the clip is tight).

Step 2: Remove/peel back the vapor barrier

• Carefully peel the plastic vapor barrier back by hand; use a trim removal tool set to help separate sticky butyl without tearing it.
• If the butyl won’t reseal cleanly, plan to install vapor barrier butyl tape during reassembly.

Step 3: Secure the window glass

• If the regulator still moves, temporarily reconnect the window switch and reconnect the battery just long enough to position the glass so the clamp bolts are accessible, then disconnect the battery again using a 10mm socket.
• Use painter’s tape (2" wide) to tape the glass to the door frame (run 2-3 long strips from outside of glass over the top of the door frame to the inside).
• Use more tape than you think you need.

Step 4: Detach the glass from the regulator

• Through the access holes, loosen (do not fully remove unless required) the glass-to-regulator clamp bolts using an 8mm socket or 10mm socket (varies by regulator design).
• Once loose, lift the glass by hand to the full-up position and add more painter’s tape (2" wide) to hold it safely.
• When reinstalling later: Torque to 8 Nm (71 in-lbs) for the glass clamp bolts.

Step 5: Remove the regulator (and motor if serviced together)

• Unplug the window motor connector.
• Remove the regulator mounting bolts using a 10mm socket and extension set (3" and 6").
• If your replacement regulator does not include the motor, remove the motor fasteners from the old regulator using an 8mm socket.
• Maneuver the regulator assembly out through the largest door opening.
• When installing later: Torque to 10 Nm (89 in-lbs) for regulator-to-door bolts.
• When transferring motor: Torque to 8 Nm (71 in-lbs) for motor fasteners.

Step 6: Install the new regulator

• Slide the new regulator into the door and loosely start the mounting bolts by hand.
• Tighten the regulator mounting bolts using a 10mm socket, then Torque to 10 Nm (89 in-lbs).
• Reconnect the motor electrical connector.

Step 7: Attach the glass to the regulator

• Remove some tape so the glass can lower carefully into the regulator clamps.
• Align the glass in the clamps evenly, then tighten the clamp bolts using an 8mm socket or 10mm socket.
• Torque to 8 Nm (71 in-lbs) for the glass clamp bolts.

Step 8: Reinstall the vapor barrier and door panel

• Press the vapor barrier back into place; add vapor barrier butyl tape if needed.
• Reconnect door handle cable and all connectors.
• Hang the door panel on the top edge first, then press the clips in around the perimeter.
• Install the screws using a 7mm socket and reinstall trim covers using a trim removal tool set.
• Reconnect the window/lock switch panel connectors and snap it back in place.

Step 9: Reconnect battery and initialize the window (if equipped)

• Reconnect the negative battery terminal using a 10mm socket.
• If auto up/down acts weird: close the window fully and hold the switch UP for 2 seconds, then open it fully and hold the switch DOWN for 2 seconds.

---

✅ After Repair

• Run the window fully down/up 5 times and listen for popping, binding, or cable noise.
• Confirm the glass seals evenly at the top and the wind noise is normal on a short drive.
• Confirm door lock, mirror, and speaker functions (if applicable) before calling it done.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$950 per front door (parts + labor)

DIY Cost: $90-$280 per front door (parts only)

You Save: $360-$670 per door by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours per door.

---
