🔧 Accord - A/C Compressor Replacement

Replacing the A/C compressor on your Accord involves recovering the refrigerant, removing the drive belt, swapping the compressor, and then pulling a deep vacuum before recharging to the exact factory amount. This is critical because the A/C system must stay clean and dry to prevent repeat failure and poor cooling.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant must be recovered with an A/C machine—do not vent to the air.
• ⚠️ Wear safety glasses and gloves; refrigerant/oil can cause frostbite and eye injury.
• ⚠️ Keep all A/C ports and lines capped; moisture/dirt ruins compressors.
• ⚠️ Support the vehicle with jack stands; never rely on a floor jack alone.
• ⚠️ Battery disconnect is recommended to prevent accidental shorting near the alternator belt area.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10–80 ft-lbs range)
• 6" socket extension (3/8" drive)
• Trim clip removal tool
• Flat blade screwdriver
• Serpentine belt tool or 14mm long-handled wrench
• A/C manifold gauge set R-134a
• Vacuum pump (specialty)
• Refrigerant scale (specialty)
• A/C refrigerant recovery machine (specialty)
• Line caps/plug kit for A/C fittings (specialty)
• O-ring pick set

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor assembly - Qty: 1
• A/C compressor clutch (if not included with compressor) - Qty: 1
• A/C compressor O-ring set - Qty: 1
• PAG A/C compressor oil (Honda-compatible) - Qty: 1
• R-134a refrigerant - Qty: 2-3 cans
• A/C receiver/drier or condenser with integrated drier (if applicable) - Qty: 1
• Serpentine belt (recommended if worn/cracked) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Have the refrigerant recovered at a shop or with an approved A/C refrigerant recovery machine before opening any A/C line.
• Disconnect the negative battery cable using a 10mm socket.
• Tip: Take photos before removing brackets and clips.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant

• Connect the A/C refrigerant recovery machine (specialty) to the high/low service ports and recover the refrigerant completely.
• Verify system pressure is at/near zero on the machine display before disconnecting.

Step 2: Raise the front of the car and remove lower splash shield

• Lift the front using a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove the lower engine splash shield using a trim clip removal tool and 10mm socket.

Step 3: Remove the drive belt from the A/C compressor

• Relieve belt tension using a serpentine belt tool or 14mm long-handled wrench on the belt tensioner.
• Slip the belt off the compressor pulley and let it rest out of the way.
• Tip: Sketch the belt routing before removal.

Step 4: Unplug the compressor electrical connector

• Locate the compressor clutch/control connector and release the tab using a flat blade screwdriver.
• Pull the connector straight off; do not yank on the wires.

Step 5: Disconnect the A/C lines from the compressor

• Place rags under the compressor area.
• Remove the suction/discharge line bolt(s) using a 10mm socket (some fasteners may be 12mm socket depending on line block).
• Carefully wiggle the line block free and immediately cap the open lines using a line caps/plug kit for A/C fittings (specialty).
• Remove old O-rings using an O-ring pick set.
• Install new O-rings and lightly coat them with PAG A/C compressor oil (this prevents tearing during assembly).

Step 6: Remove the A/C compressor

• Support the compressor with one hand and remove the mounting bolts using a 12mm socket and 14mm socket with a 6" socket extension (3/8" drive).
• Lower the compressor out carefully; it’s heavier than it looks.

Step 7: Prepare the new compressor (oil balance)

• Drain the oil from the old compressor into a measuring container (note the amount).
• Check the new compressor oil amount (many come pre-filled). Add or remove oil so the total matches Honda spec for your system.
• Rotate the compressor hub by hand a few turns to distribute oil (do not use power tools).
• Tip: Too much oil reduces cooling performance.

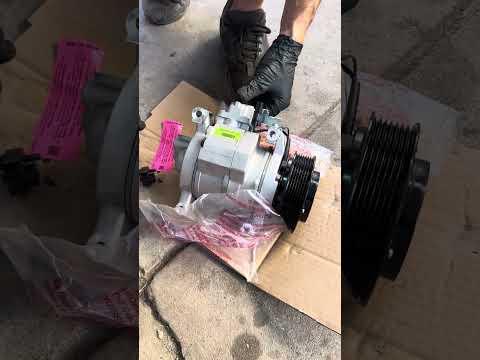

Step 8: Install the new compressor

• Position the compressor and start all mounting bolts by hand using a 12mm socket / 14mm socket.
• Tighten evenly, then torque with a 3/8" drive torque wrench (10–80 ft-lbs range).
• Torque to 25 Nm (18 ft-lbs) for compressor mounting bolts (typical for this application).
• Assumption: Torque listed is typical; verify against service data if available.

Step 9: Reconnect A/C lines with new O-rings

• Remove caps and install the line block straight onto the compressor to avoid pinching O-rings.
• Install the line bolt(s) using a 10mm socket (or 12mm socket if equipped).
• Torque to 12 Nm (9 ft-lbs) for A/C line manifold bolt (typical).

Step 10: Reconnect compressor electrical connector

• Push the connector on until it clicks.

Step 11: Reinstall the drive belt

• Route the belt correctly and relieve tension using a serpentine belt tool or 14mm long-handled wrench.
• Slip the belt onto the last pulley, then slowly release the tensioner.
• Visually confirm the belt sits fully in all pulley grooves.

Step 12: Reinstall splash shield and lower the car

• Reinstall the splash shield using a trim clip removal tool and 10mm socket.
• Lower the vehicle from the jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).

Step 13: Evacuate the system (vacuum) and leak check

• Connect the A/C manifold gauge set R-134a to the service ports.
• Connect the center hose to the vacuum pump (specialty).
• Pull vacuum for 30–45 minutes, then close the valves and verify it holds vacuum for 10–15 minutes (basic leak check).
• Tip: If vacuum drops, fix leaks before charging.

Step 14: Recharge with the correct amount of R-134a by weight

• Place refrigerant on a refrigerant scale (specialty) and charge by weight through the manifold per standard charging procedure.
• Charge only the factory-specified amount (under/overcharge hurts cooling and can damage the compressor).
• Assumption: Exact charge spec varies by under-hood label; charge to that label.

Step 15: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm socket.

---

✅ After Repair

• Start the engine and set A/C to MAX with recirculation; verify the compressor engages and the center vents blow cold.
• Check for abnormal noises (squeal, grinding) and inspect for oil residue at the compressor line connections.
• Verify condenser fans run when A/C is on.
• If cooling is weak, re-check charge amount by weight and confirm no leaks.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,800 (parts + labor)

DIY Cost: $250-$800 (parts only)

You Save: $650-$1,000 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-6 hours.

---
