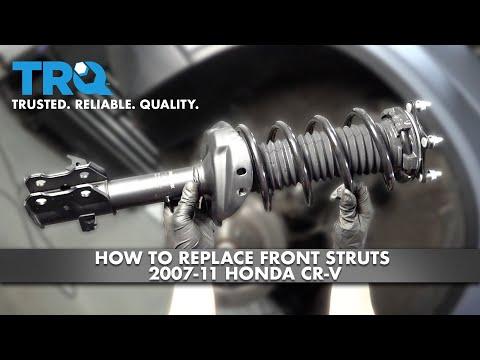

🔧 CR-V - Strut Replacement

On your CR-V, the front suspension uses struts (strut + spring assembly). The rear uses shocks (spring is separate), so I’ll cover both so you can do the full ride refresh.

Difficulty Level: Advanced | Estimated Time: 4-8 hours

---

⚠️ Safety & Precautions

• ⚠️ Support the vehicle with jack stands on solid ground; never rely on a jack.
• ⚠️ If you are reusing springs, a coil spring compressor is required; compressed springs store dangerous energy.
• ⚠️ Keep the steering knuckle supported so the CV axle doesn’t over-extend.
• ⚠️ Use eye protection; rust flakes and debris fall when removing suspension bolts.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Breaker bar (1/2")
• Torque wrench (1/2" drive)
• Torque wrench (3/8" drive)
• Ratchet (3/8" drive)
• Ratchet (1/2" drive)
• Socket set: 10mm, 12mm, 14mm, 17mm, 19mm, 22mm
• Wrench set: 14mm, 17mm, 19mm
• Hex key set: 5mm, 6mm
• Pry bar
• Hammer
• Needle-nose pliers
• Trim panel tool
• Penetrating oil
• Paint marker
• Coil spring compressor (specialty)
• Pass-through strut nut socket set (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front complete strut assemblies (quick-struts) - Replace in pairs - Qty: 1 set (2 assemblies)
• OR Front struts (bare) - Replace in pairs - Qty: 2
• Front strut mount/bearing kit - Replace in pairs - Qty: 1 set
• Front dust boot & bump stop kit - Replace in pairs - Qty: 1 set
• Rear shock absorbers - Replace in pairs - Qty: 2
• Rear upper shock mount hardware kit - Qty: 1
• Sway bar end links (optional if loose/torn) - Front - Qty: 2

---

📋 Before You Begin

• Park on level ground, shift to P, and chock the rear wheels.
• Spray penetrating oil on the front strut-to-knuckle bolts and rear lower shock bolts 10–20 minutes before removal.
• If using quick-struts (pre-assembled), you can skip spring-compressor work. This is the safer beginner-friendly option.
• Plan for a front wheel alignment after replacing front struts.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the front wheels

• Use a 19mm socket to loosen lug nuts 1/2 turn on the ground.
• Use a floor jack to lift the front and set the vehicle on jack stands.
• Remove lug nuts with a 19mm socket and remove both front wheels.

Step 2: Disconnect brackets and the sway bar link (front)

• Use a 10mm socket to remove the ABS/brake line brackets from the strut body (don’t pull on the wires/hoses).
• Remove the sway bar end link nut at the strut using a 17mm wrench while holding the stud with a 6mm hex key.
• If the nut spins, add penetrating oil and try again.

Step 3: Mark and remove the strut-to-knuckle bolts (front)

• Use a paint marker to mark the bolt positions where the strut meets the knuckle.
• Support the steering knuckle with a floor jack so it doesn’t drop.
• Remove the two lower bolts/nuts using a 19mm socket and breaker bar.
• If stuck, tap bolts out with a hammer while holding the knuckle steady.

Step 4: Remove the strut top nuts (front)

• Open the hood.
• Use a 14mm socket to remove the strut mount nuts at the top (leave one nut loosely threaded until you’re ready to catch the strut).
• Hold the strut with your hand, remove the last nut with a 14mm socket, and lift the strut out.

Step 5: If reusing springs (skip if installing quick-struts)

• Install the coil spring compressor (specialty) on opposite sides of the spring and tighten evenly until the spring is loose in the mount.
• Remove the center top nut using a pass-through strut nut socket set (specialty).
• Transfer the spring and components to the new strut (mount/bearing, boot, bump stop).
• Reinstall the center top nut and release the compressors slowly and evenly.
• Keep hands out of “spring line of fire.”

Step 6: Install the front strut

• Place the strut into the strut tower and hand-start the top nuts using a 14mm socket.
• Line up the knuckle and insert the two lower bolts; start nuts by hand using a 19mm socket.
• Torque strut-to-knuckle bolts to 177 Nm (131 ft-lbs) using a torque wrench (1/2").
• Torque strut mount nuts to 44 Nm (33 ft-lbs) using a torque wrench (3/8").

Step 7: Reconnect sway bar link and brackets (front)

• Install the sway bar link nut using a 17mm wrench and hold the stud with a 6mm hex key.
• Torque sway bar end link nut to 44 Nm (33 ft-lbs) using a torque wrench (use a crowfoot if needed) or tighten firmly to spec if your setup allows.
• Reinstall ABS/brake line brackets using a 10mm socket.

Step 8: Reinstall front wheels

• Reinstall wheels and hand-thread lug nuts using a 19mm socket.
• Lower the vehicle and torque lug nuts in a star pattern.
• Torque lug nuts to 108 Nm (80 ft-lbs) using a torque wrench (1/2").

Step 9: Replace the rear shocks (rear “struts”)

• Chock the front wheels, then lift the rear with a floor jack and support with jack stands.
• Remove rear wheels using a 19mm socket.
• Support the rear suspension arm with a floor jack so it doesn’t drop when the shock comes out.
• Remove the lower shock bolt using a 17mm socket and breaker bar.
• Access the upper shock mount fasteners from inside the cargo area side trim:
  • Use a trim panel tool to carefully pop the rear side trim access as needed.
  • Remove upper mount nuts/bolts using a 14mm socket.
• Remove the shock and install the new one in reverse order.
• Torque rear lower shock bolt to 118 Nm (87 ft-lbs) using a torque wrench (1/2").
• Torque rear upper mount nuts to 44 Nm (33 ft-lbs) using a torque wrench (3/8").
• Reinstall rear wheels and torque lug nuts to 108 Nm (80 ft-lbs).

---

✅ After Repair

• Test drive slowly and listen for clunks over small bumps.
• Recheck all visible fasteners after the first short drive.
• Get a front wheel alignment as soon as possible (new struts can change camber/toe).
• If the steering wheel is off-center or it pulls, don’t delay the alignment.

---

💰 DIY vs Shop Cost

Shop Cost: $800-$1,600 (parts + labor)

DIY Cost: $350-$900 (parts only)

You Save: $450-$700 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-6 hours.

---
