🔧 F-150 - Front Door Lock Actuator Replacement

The door lock actuator is the small motor/latch unit inside the door that locks and unlocks the door when you press the key fob or switch. Replacing it means removing the interior door panel, peeling back the moisture barrier, swapping the actuator/latch, then reassembling and testing.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before working in the door; your F-150 may have side-impact airbag wiring in the door.
• ⚠️ Keep the key away from the truck while working to avoid accidental lock/unlock or power cycling.
• ⚠️ Support the window glass if you loosen any window-track fasteners; do not let glass drop.
• ⚠️ Use trim tools only; metal screwdrivers can crack panels and cut wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim panel removal tool set
• Pick tool
• 1/4" drive ratchet
• 6" 1/4" drive extension
• 7mm socket
• 8mm socket
• 10mm socket
• Torx T20 bit
• Torx T27 bit
• Torx T30 bit
• Small flat trim screwdriver
• Painter's tape
• Magnetic pickup tool
• Torque wrench (in-lb/ft-lb capable)
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door lock actuator/latch assembly - Qty: 1
• Door panel trim clips - Qty: 5-10
• Butyl tape (moisture barrier adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and open the window on the door you’re working on.
• Turn ignition off and remove the key.
• Use a 10mm socket to disconnect the negative battery cable and isolate it so it can’t spring back.
• Take photos as you unplug connectors.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior door handle trim

• Use a trim panel removal tool set to gently pry off the small trim cover behind/around the inside door handle.
• Use a Torx T20 bit to remove any screw(s) revealed.

Step 2: Remove the pull-handle/armrest screws

• Use a pick tool to lift the rubber mat/cover in the pull handle pocket (if equipped).
• Use a 7mm socket or 8mm socket to remove the bolts in the armrest/pull handle area (varies by panel).
• Put screws in a cup so none vanish.

Step 3: Remove the window/lock switch panel

• Use a trim panel removal tool set to pry up the switch panel from the armrest.
• Unplug the electrical connector(s) by pressing the tab and pulling straight out.
• Don’t yank wires—pull the connector body.

Step 4: Pop the door panel loose and lift it off

• Use a trim panel removal tool set to pop the door panel clips around the perimeter (you’ll hear snaps).
• Lift the whole panel straight up to unhook it from the top window channel.
• Unplug any remaining connectors (courtesy light, speaker) using the pick tool if needed.

Step 5: Remove the inside handle cable(s)

• Locate the inside handle cable end at the back of the door panel.
• Use a small flat trim screwdriver to swing the cable retainer open, then lift the cable end out.
• A “retainer” is the little clip that holds the cable housing.

Step 6: Peel back the moisture barrier

• Carefully peel back the plastic moisture barrier using your hands and a trim panel removal tool set.
• If the adhesive won’t stick later, plan to use butyl tape during reassembly.

Step 7: Remove the door latch/actuator fasteners

• On the door edge (where the latch is), use a Torx T27 bit or Torx T30 bit to remove the latch screws (varies by build).
• Inside the door, unplug the actuator/latch electrical connector by pressing the lock tab (use a pick tool if tight).
• Use a work light to clearly see the linkage rods/cables.

Step 8: Disconnect the lock linkage(s)

• Disconnect any linkage rod/cable going to the latch (typically a rod uses a colored plastic clip).
• Use a small flat trim screwdriver to flip the clip open, then lift the rod out.
• Flip the clip—don’t pry the rod out first.

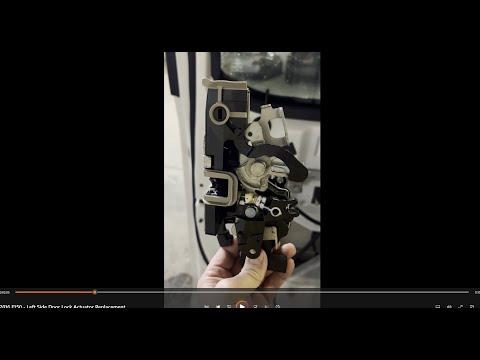

Step 9: Remove the actuator/latch assembly

• Work the latch assembly out through the door opening (it may need twisting/rotating).
• Use a magnetic pickup tool if you drop a screw inside the door.
• Compare the new and old unit before installing (connector and lever locations should match).

Step 10: Install the new actuator/latch assembly

• Position the new latch/actuator in the door the same way the old one came out.
• Reconnect the linkage rod(s)/cable(s) and close the plastic retainers fully.
• Plug in the electrical connector until it clicks.

Step 11: Reinstall latch screws and tighten

• Install the door-edge latch screws by hand first to avoid cross-threading.
• Use a Torx T27 bit or Torx T30 bit with a torque wrench to tighten: Torque to 9 Nm (80 in-lbs).
• Even tightening helps the latch sit square.

Step 12: Function test before reassembly

• Reconnect the negative battery cable using a 10mm socket.
• Test lock/unlock with the switch and key fob while the panel is still off.
• Test inside handle operation with the door open (use the latch with care).
• Disconnect the battery again with the 10mm socket before reassembly if you’ll be near wiring.

Step 13: Reinstall the moisture barrier

• Press the moisture barrier back into place.
• Use butyl tape to reseal any areas that won’t stick.

Step 14: Reinstall door panel

• Reconnect all door panel electrical connectors.
• Hook the top of the panel over the window channel, then press the panel down into place.
• Press around the perimeter to snap the clips in.
• Replace any broken clips with new door panel trim clips.

Step 15: Reinstall screws and trim pieces

• Reinstall armrest/pull handle bolts using a 7mm socket or 8mm socket.
• Reinstall handle trim screw(s) using a Torx T20 bit.
• Snap the trim covers back on.

---

✅ After Repair

• Reconnect the negative battery cable using a 10mm socket.
• Verify lock/unlock from: key fob, door switch, and key cylinder (if equipped).
• Confirm the door opens from inside and outside, and that the door-ajar light works normally.
• Listen for abnormal grinding/clicking; if present, recheck linkage clip seating.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor)

DIY Cost: $60-$200 (parts only)

You Save: $190-$350 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
