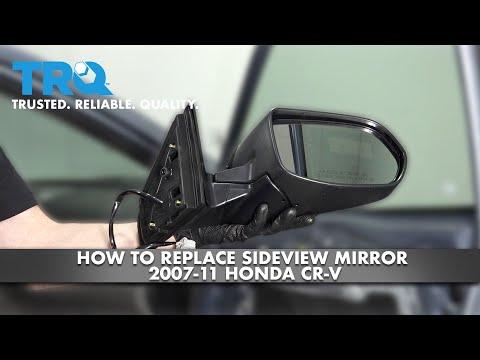

🔧 CR-V - Side View Mirror Replacement

You can replace either the entire mirror assembly (housing + motor + glass) or just the mirror glass if the housing is still good. The job is mostly interior trim removal, unplugging the mirror connector, and swapping parts without damaging clips.

Difficulty Level: Intermediate | Estimated Time: 0.5-1.5 hours

Quick questions (answer when you can): Which side (driver, passenger, or both), and are you replacing the whole mirror assembly or glass only?

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging door wiring.
• ⚠️ Wear gloves and safety glasses; mirror glass can shatter.
• ⚠️ Use plastic trim tools; metal tools can crack panels and scratch paint.
• ⚠️ Support the mirror when removing the last nut so it doesn’t fall and chip the door.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" extension for ratchet
• Torque wrench (inch-pound or small Nm range)
• Phillips #2 screwdriver
• Plastic trim removal tool set
• Small flat plastic pry tool
• Needle-nose pliers
• Painter’s tape
• Shop towels
• Mechanic gloves
• Safety glasses
• 10mm wrench

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Side view mirror assembly (left/driver or right/passenger, power) - Qty: 1
• Mirror glass (left/driver or right/passenger) - Qty: 1
• Mirror mounting nuts/clips (as needed) - Qty: 1 set
• Door trim panel clips (as needed) - Qty: 1 set

---

📋 Before You Begin

• Park on level ground, key OFF, and lower the window on the side you’re working on.
• Use painter’s tape around the mirror base on the outside to protect the paint.
• Disconnect the battery: use a 10mm wrench to remove the negative (-) cable, then isolate it so it can’t touch the terminal.
• Keep bolts/nuts in a cup so none disappear.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the inner mirror trim (“sail panel”)

• At the front top corner of the door (by the mirror), use a plastic trim removal tool set to pry off the small triangular trim panel.
• If it feels stuck, work around the edges gently until the clips pop free.

Step 2: Unplug the mirror connector

• Behind the sail panel, locate the mirror electrical connector.
• Press the locking tab and disconnect it by hand; use needle-nose pliers only if needed and gently.
• Don’t pull on the wires—pull on the connector body.

Step 3: Remove the mirror mounting nuts

• Support the mirror on the outside with one hand.
• Use a 10mm socket, 6" extension, and 1/4" drive ratchet to remove the (typically) three mounting nuts.
• Set the nuts aside (you may reuse them if your new mirror doesn’t come with new hardware).

Step 4: Remove the mirror assembly

• From the outside, lift the mirror straight off the door.
• Feed the mirror wiring and connector out through the hole carefully.
• Use shop towels to wipe the mounting area clean.

Step 5A: Install the new mirror assembly (whole assembly replacement)

• Feed the new mirror’s connector/wiring through the door opening.
• Set the mirror onto the door and align the studs.
• Hand-thread the nuts first to avoid cross-threading.
• Use a 10mm socket and ratchet to snug the nuts evenly.
• Final tighten using a torque wrench: Torque to 9 Nm (7 ft-lbs).

Step 5B: Replace mirror glass only (if housing is good)

• Put on mechanic gloves and safety glasses.
• Use the mirror switch to tilt the mirror glass fully inward/down (if it still moves). If it won’t move, you can still pry carefully.
• Place a shop towel under the glass edge to catch it.
• Use a small flat plastic pry tool to carefully pop the glass off the motor plate (it’s held by snap clips).
• If equipped with heated glass, pull off the heater terminals using needle-nose pliers (grip the terminal, not the wire).
• Reconnect heater terminals (if applicable), line up the glass with the center plate, then press evenly with both hands until it snaps in.
• Press near the center—avoid pushing on corners.

Step 6: Reconnect wiring and reinstall the sail panel

• Plug the mirror connector back in until it clicks.
• Reinstall the sail panel: line up the clips and press it in by hand.

Step 7: Reconnect the battery

• Reconnect the negative battery cable using a 10mm wrench and tighten securely.

---

✅ After Repair

• Turn key ON and test mirror movement (up/down/left/right).
• If applicable, test mirror heat (it may take a few minutes to feel warm).
• Check the mirror sits flush on the door and doesn’t wiggle.
• Take a short drive and listen for wind noise; if present, re-check nut torque and mirror seating.

---

💰 DIY vs Shop Cost

Shop Cost: $200-$650 (parts + labor)

DIY Cost: $60-$350 (parts only)

You Save: $140-$300+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.7-1.2 hours.

---
