🔧 Wrangler - Rear Window Regulator Replacement

On your Wrangler, a “rear window regulator” usually means the mechanism inside a rear door that moves the glass up and down (most common on the 4-door). Replacement involves removing the interior door panel, supporting the glass, swapping the regulator, then reassembling and testing.

Quick check (2 questions): Is this for the rear door window (4-door) or the hardtop rear liftgate glass? And are your rear windows power or manual crank?

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

---

⚠️ Safety & Precautions

• ⚠️ Keep fingers clear of the regulator and tracks while testing.
• ⚠️ Support the window glass with tape before unbolting it so it can’t drop and shatter.
• ⚠️ If you have power windows, disconnect the battery negative cable before unplugging door wiring.
• ⚠️ Work on level ground with the key out of the ignition.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim panel removal tool
• Small pick tool
• Phillips screwdriver
• Torx T20 screwdriver
• Torx T30 screwdriver
• 10mm socket
• 1/4" drive ratchet
• 3" socket extension
• Needle-nose pliers
• Masking tape 1" wide
• Torque wrench 20–200 in-lb
• Multimeter

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear window regulator assembly - Qty: 1
• Rear window motor - Qty: 1 (only if not included with regulator)
• Door trim panel clips - Qty: 1 set (as needed)
• Moisture barrier butyl tape - Qty: 1 (as needed)

---

📋 Before You Begin

• Park on level ground and open the rear door you’re working on.
• If you have power windows, use the switch to put the glass about halfway down (if possible).
• Disconnect the battery negative cable: use a 10mm socket and move the cable aside so it can’t spring back.
• Have masking tape ready to hold the glass once it’s loosened.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear door trim panel

• Use a Torx T20 screwdriver to remove the screws in the pull handle/armrest area (locations vary by door panel style).
• If equipped with a manual window crank, pop off the crank retaining clip using a small pick tool, then pull the crank off.
• Use a trim panel removal tool to pop the panel clips around the edges of the door panel.
• Lift the door panel upward to unhook it from the top edge of the door.
• If equipped with power windows/locks, unplug connectors using a small pick tool to release the lock tabs (don’t yank the wires).

Step 2: Remove the speaker (if it blocks access)

• Use a Phillips screwdriver or 10mm socket (varies) to remove the speaker fasteners.
• Unplug the speaker connector by hand and set the speaker aside.

Step 3: Peel back the moisture barrier

• Carefully peel the plastic moisture barrier back by hand.
• Go slow to save the sticky butyl.
• If the butyl won’t re-stick later, plan to use the moisture barrier butyl tape during reassembly.

Step 4: Support the window glass

• Move the glass to where you can access the glass-to-regulator fasteners through the door openings (power: reconnect switch briefly; manual: move by hand).
• Once aligned, secure the glass to the door frame with several strips of masking tape 1" wide run over the top of the door and onto the glass.

Step 5: Separate the glass from the regulator

• Use a 10mm socket and 1/4" drive ratchet to remove the glass clamp bolts/nuts (accessed through the door openings).
• Confirm the glass is still held firmly by the tape before proceeding.
• Torque to 89 in-lb (10 Nm) when reinstalling these glass fasteners.

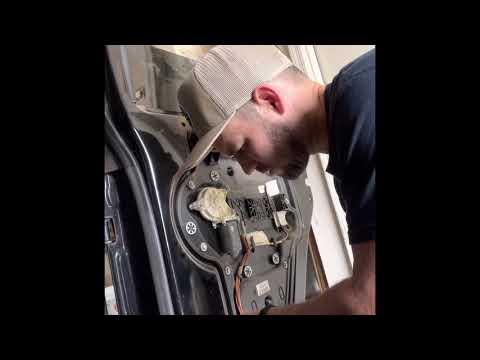

Step 6: Remove the regulator (and motor if applicable)

• If you have a separate motor connector, unplug it by hand (use a small pick tool to release the lock tab if needed).
• Use a 10mm socket, ratchet, and 3" socket extension to remove the regulator mounting bolts.
• Work the regulator assembly out through the large access opening in the door.
• Torque to 89 in-lb (10 Nm) when reinstalling regulator mounting bolts.

Step 7: Install the new regulator

• Slide the new regulator into the door through the access opening.
• Start all mounting bolts by hand to avoid cross-threading, then tighten using a 10mm socket.
• Torque to 89 in-lb (10 Nm).
• Reconnect the window motor connector (if equipped) by hand until it clicks.

Step 8: Reattach the glass to the regulator

• Remove just enough masking tape 1" wide so the glass can lower gently onto the regulator clamp points.
• Install the glass clamp bolts/nuts using a 10mm socket and ratchet.
• Torque to 89 in-lb (10 Nm).
• Remove the remaining tape from the glass.

Step 9: Function test before reassembly

• Reconnect the battery negative cable using a 10mm socket.
• For power windows: plug the switch back in and cycle the window up/down while watching the tracks.
• If the window binds or tilts, stop immediately and re-check that the glass is seated evenly in its run channels.

Step 10: Reinstall moisture barrier, speaker, and door panel

• Press the moisture barrier back into place by hand; add moisture barrier butyl tape if needed.
• Reinstall the speaker using a Phillips screwdriver or 10mm socket (match what you removed).
• Reconnect all door panel electrical connectors by hand until they click.
• Hang the door panel on the top edge first, then press in the clips using your palms.
• Reinstall screws using a Torx T20 screwdriver and Torque to 18 in-lb (2 Nm).
• If manual crank: reinstall crank and retaining clip using needle-nose pliers.

---

✅ After Repair

• Cycle the rear window fully down and fully up at least 5 times to confirm smooth travel.
• Listen for clicking/grinding; if heard, stop and inspect alignment.
• Confirm the door lock and speaker work (if equipped).
• If the door panel feels loose, replace any broken trim clips.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor, per door)

DIY Cost: $90-$250 (parts only, per door)

You Save: $260-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
