🔧 CR-V - Rear Window Regulator Replacement

You’ll be removing the rear door panel, separating the glass from the regulator, then swapping in a new regulator and motor assembly. This fixes slow, stuck, or crooked rear windows in your CR-V.

Difficulty Level: Intermediate | Estimated Time: 1.5–2 hours per side

---

⚠️ Safety & Precautions

• 🔹Disconnect the negative battery cable before unplugging window motor wiring to avoid accidental movement.
• 🔹Support the glass securely with tape while the regulator is disconnected so it cannot drop and shatter.
• 🔹Work with the ignition off at all times; do not use the window switch while parts are loose.
• 🔹Use care when prying trim panels to avoid breaking plastic clips or cutting your hands on sharp edges.
• 🔹Keep small children and pets away from the work area, especially when glass is unsecured.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🔹Phillips #2 screwdriver
• 🔹Flathead screwdriver (small)
• 🔹Trim removal tool set (plastic)
• 🔹Ratchet (1/4" drive)
• 🔹10mm socket
• 🔹8mm socket
• 🔹Extension bar 3"
• 🔹Torque wrench (inch‑pound or low‑range Nm)
• 🔹Needle‑nose pliers
• 🔹Razor blade or utility knife
• 🔹Masking tape (wide)
• 🔹Work gloves
• 🔹Safety glasses
• 🔹Shop light or flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔹Rear window regulator with motor assembly (left) - Qty: 1
• 🔹Rear window regulator with motor assembly (right) - Qty: 1
• 🔹Rear door panel retaining clips - Qty: 10–15 per door optional but recommended
• 🔹Butyl tape or waterproof door vapor barrier adhesive - Qty: 1 roll
• 🔹Multi‑purpose grease (for regulator tracks, light coating) - Qty: small tube
• 🔹Masking tape (1–2") - Qty: 1 roll

---

📋 Before You Begin

• Park your CR-V on level ground, engage the parking brake, and turn the ignition off.
• Open the rear door you are working on fully for maximum space.
• Disconnect the negative battery terminal using a 10mm socket and move the cable aside so it cannot spring back.
• Lower the affected rear window to about halfway down before disconnecting the battery, if the regulator still moves. This makes accessing the glass bolts easier.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove rear door trim screws and covers

• Use the trim removal tool to gently pry off the small plastic cover behind the interior door handle (where your fingers pull to close the door).
• Use a Phillips #2 screwdriver to remove the screw hidden behind that cover.
• Pry up the small trim insert in the armrest pull pocket using the trim removal tool, then remove the exposed Phillips #2 screw.
• If there is a small cover near the door latch side, pop it off with the trim tool and remove any additional Phillips #2 screws if present.

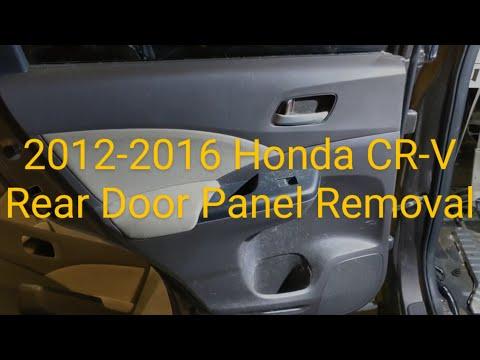

Step 2: Remove the rear door panel

• Starting at the bottom edge of the door, slide the trim removal tool between the panel and metal door frame and gently pry to release the plastic clips.
• Work your way around the sides of the panel, popping each clip loose. You will hear them "pop" free.
• Once clips are released, lift the panel straight up to unhook it from the window ledge using both hands.
• Support the panel and disconnect the electrical connector for the window switch using your needle‑nose pliers or fingers to press the tab.
• Set the door panel somewhere safe so it doesn’t get scratched.

Step 3: Remove the plastic moisture barrier

• The moisture barrier is the thin plastic sheet stuck to the metal door with sticky sealer (butyl).
• Carefully peel the barrier back using your hands; use a razor blade to cut the sealer only if needed, taking care not to cut the plastic.
• Peel it back enough to access the large opening where the regulator and glass bolts are, and tape the loose plastic up out of the way with masking tape.
• Try to keep the plastic as intact as possible.

Step 4: Secure the glass in place

• With the window about halfway down, locate the two glass-to-regulator bolts through the access holes in the inner door panel; they will be 10mm bolts clamping the glass to the regulator.
• On the outside of the door, use masking tape to tape the glass firmly to the upper window frame (run several long strips from outside of glass over the top frame to inside).
• Use at least 3–4 strips of tape per side.

Step 5: Detach the glass from the regulator

• Use a 10mm socket and ratchet to loosen and remove the two glass clamp bolts holding the glass to the regulator through the access openings.
• Once bolts are out, gently push the glass upward by hand to make sure it is free from the regulator track.
• Slide the glass fully up into the frame and add more masking tape to hold it tight in the up position.

Step 6: Disconnect the window motor and locate regulator bolts

• Find the window motor assembly (round section with wiring) on the inner door metal.
• Press the tab on the motor connector and unplug it by hand or with needle‑nose pliers if needed.
• Locate all the regulator and motor mounting bolts: usually several 10mm bolts around the rails and the motor.

Step 7: Remove the old regulator and motor

• Use a 10mm socket, extension, and ratchet to remove all the regulator and motor bolts.
• Once all bolts are removed, tilt and slide the regulator/motor assembly out through the large opening in the inner door. You may need to rotate it slightly to clear the opening.
• If the regulator catches on any door braces, gently flex it and adjust angle until it comes free.

Step 8: Prepare the new regulator assembly

• Compare the new regulator and motor to the old one on a bench to confirm they match in shape, mounting points, and connector type.
• Apply a very light coat of multi‑purpose grease to the sliding tracks on the new regulator if they are not already pre‑lubricated.
• Do not get grease on the glass area.

Step 9: Install the new regulator and motor

• Feed the new regulator/motor assembly into the door opening carefully.
• Align the mounting holes of the regulator rails and motor with the threaded holes in the door.
• Install all the 10mm bolts finger-tight first using the ratchet and 10mm socket so the assembly can still move slightly for alignment.
• Once all bolts are started, snug them evenly with the 10mm socket.
• Use a torque wrench with the 10mm socket to tighten regulator and motor bolts to 9 N·m (80 in‑lb).

Step 10: Reattach the glass to the new regulator

• Carefully remove some of the masking tape holding the glass, keeping one or two strips as a safety.
• By hand, slide the glass down slowly until the glass mounting tabs line up with the regulator clamp points (visible through the access holes).
• Insert the two glass clamp 10mm bolts and tighten them snug using the 10mm socket and ratchet.
• Use the torque wrench and 10mm socket to tighten the glass bolts to 9 N·m (80 in‑lb).
• Remove all remaining tape from the glass and frame.

Step 11: Reconnect battery temporarily and test operation

• Reconnect the negative battery cable using the 10mm socket and tighten to 6–8 N·m (53–71 in‑lb).
• Plug the window switch back into the door panel wiring (you can let the panel hang close by or support it with something soft).
• Turn the ignition to ON and test the window up and down several times, watching inside the door to make sure the regulator moves smoothly and the glass stays straight.
• If everything looks and sounds normal, turn the ignition off and disconnect the negative battery cable again with the 10mm socket before reassembly.

Step 12: Reinstall the moisture barrier

• Press the plastic moisture barrier back into place along the original sealer line.
• If the original sealer is damaged, apply new butyl tape around the perimeter, then press the plastic firmly to seal it.
• Good seal keeps water out of the cabin.

Step 13: Reinstall the rear door panel

• Reconnect the window switch wiring to the door panel connector by hand.
• Hook the top edge of the door panel over the window ledge and align it carefully.
• Press around the edges of the panel with your hands to snap all the plastic clips back into the door. Replace any broken clips with new ones by hand before pushing the panel on.
• Reinstall all Phillips #2 screws in the armrest and behind the handle and tighten them firmly with the Phillips screwdriver (about 2–3 N·m / 18–27 in‑lb).
• Snap the small plastic trim covers back over the screws by hand.

Step 14: Final battery connection and window reset

• Reconnect the negative battery cable for the last time using the 10mm socket and torque to 6–8 N·m (53–71 in‑lb).
• Turn ignition to ON and operate the rear window fully down and fully up several times.
• If the window has auto‑down/auto‑up, hold the switch in the up position for 2–3 seconds after the glass reaches the top to help the system learn the position.

---

✅ After Repair

• 🔹Check the repaired window from outside to confirm it tracks straight and seals properly against the weatherstrip.
• 🔹Listen for any grinding, clicking, or binding noises; the movement should be smooth and steady.
• 🔹Verify the child lock and rear door lock still work correctly after reassembly.
• 🔹Test all rear door switches (window and lock) with the engine running to ensure full power and normal speed.
• 🔹If you replaced both sides, test each window individually and together to ensure no blown fuses or electrical issues.

---

💰 DIY vs Shop Cost

Shop Cost: $300–$450 per rear window (parts + labor)

DIY Cost: $70–$130 per regulator assembly (parts only)

You Save: $230–$320 per window by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 1.0–1.5 hours per rear window.

---
