🔧 Wrangler - Rear Window Regulator Replacement

Rear window regulators are the cable-and-track assemblies that raise/lower the glass. On your Wrangler, “rear window” can mean the rear liftgate glass (tailgate window) or the rear door glass (4-door Unlimited). I’ll cover both procedures—use the one that matches where your stuck/broken window is.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per window)

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging window motors to prevent shorting or accidental movement.
• ⚠️ Support the glass with painter’s tape (or have a helper hold it) before loosening regulator bolts—glass can drop suddenly.
• ⚠️ Wear cut-resistant gloves; door and liftgate inner metal edges are sharp.
• ⚠️ Do not pry on the glass—only on trim panels and clips.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Cut-resistant gloves
• 10mm socket
• 13mm socket
• 1/4" ratchet
• 3/8" ratchet
• 6" extension
• Trim clip removal tool
• Phillips screwdriver #2
• Torx T20 screwdriver
• Torx T30 screwdriver
• Pick tool
• Painter’s tape (2" wide)
• Magnetic parts tray
• Torque wrench (in-lb)
• Torque wrench (ft-lb)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear window regulator assembly - Qty: 1
• Rear window motor - Qty: 1 (only if not included with regulator)
• Door/liftgate trim panel clips - Qty: 1 set (recommended)
• Water shield butyl tape - Qty: 1 (recommended)

---

📋 Before You Begin

• Park on level ground and remove the key.
• Lower the problem window (if it still moves) to about halfway so you can access the glass-to-regulator fasteners.
• Disconnect the battery: use a 10mm socket to remove the negative cable and isolate it so it can’t spring back. Negative is the “-” terminal.
• Have painter’s tape ready to hold the glass up once it’s detached.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Choose the correct procedure area

• If the stuck window is in the swing gate (rear-most glass), follow Procedure A: Liftgate Glass.
• If the stuck window is in a rear passenger door, follow Procedure B: Rear Door Glass.

Step 2 (Procedure A): Remove liftgate interior trim panel

• Use a trim clip removal tool to pop the liftgate trim panel clips loose around the edges.
• Remove any screws you find using a Phillips #2 or Torx T20 screwdriver (hardware varies by panel style).
• Lift the panel off and set it aside. Use a magnetic parts tray for screws and clips.

Step 3 (Procedure A): Peel back the water shield

• Carefully peel back the plastic water shield using a pick tool (don’t tear it).
• If the butyl (sticky seal) won’t re-stick, plan to use water shield butyl tape during reassembly.

Step 4 (Procedure A): Support the liftgate glass

• Use painter’s tape (2" wide) to tape the glass to the outside of the liftgate so it cannot drop.
• Add 2–3 long strips from glass to painted metal. More tape is safer than less.

Step 5 (Procedure A): Disconnect motor and unbolt regulator

• Unplug the window motor electrical connector by releasing the lock tab with a pick tool.
• Use a 10mm socket and 1/4" ratchet to remove the regulator/motor fasteners.
• Use a torque wrench (in-lb) for installation: Torque to 90 in-lb (10 Nm).

Step 6 (Procedure A): Detach glass from regulator and remove the regulator

• Locate the glass-to-regulator clamps/bolts through the access holes.
• Use a 10mm socket to loosen/remove the clamp bolts, then confirm the glass stays supported by tape.
• Remove the regulator assembly through the access opening, rotating it gently to clear edges.

Step 7 (Procedure A): Install the new regulator and reconnect the glass

• Position the new regulator in the liftgate and start bolts by hand to avoid cross-threading.
• Use a 10mm socket to snug the fasteners, then Torque to 90 in-lb (10 Nm).
• Reconnect the glass to the regulator clamps using a 10mm socket, then Torque to 70 in-lb (8 Nm).
• Plug in the motor connector until it clicks.

Step 8 (Procedure B): Remove rear door trim panel

• Remove trim screws using a Phillips #2 and/or Torx T20 screwdriver (commonly behind the pull handle and near the latch area).
• Use a trim clip removal tool to pop the panel clips loose around the perimeter.
• Lift the panel upward to unhook it from the window ledge.
• Disconnect any electrical connectors using a pick tool to release the lock tab.

Step 9 (Procedure B): Peel back the water shield

• Peel back the plastic water shield carefully; use a pick tool to separate sticky butyl without tearing.

Step 10 (Procedure B): Support the door glass and detach it from the regulator

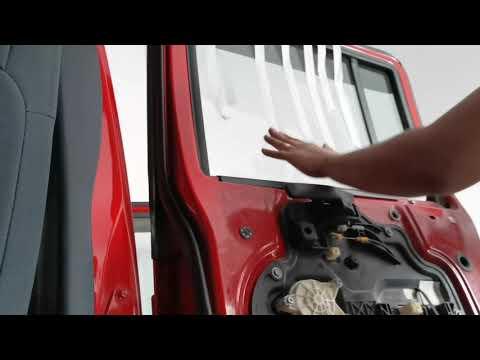

• Tape the glass to the door frame using painter’s tape.
• Through the access holes, use a 10mm socket to remove/loosen the glass clamp bolts.
• Torque for reassembly: use a torque wrench (in-lb) and Torque to 70 in-lb (8 Nm).

Step 11 (Procedure B): Remove regulator and motor

• Unplug the motor connector using a pick tool.
• Use a 10mm socket with a 1/4" ratchet and extension to remove regulator fasteners.
• If the motor is separate from the regulator, remove the motor fasteners using a Torx T30 screwdriver.
• Torque for regulator fasteners: Torque to 90 in-lb (10 Nm).

Step 12 (Procedure B): Install new regulator (and motor if needed)

• Set the new regulator into the door and start all fasteners by hand.
• Use a 10mm socket to tighten, then Torque to 90 in-lb (10 Nm).
• If transferring the motor, install it using a Torx T30 screwdriver and Torque to 90 in-lb (10 Nm).
• Reconnect the motor connector until it clicks.

Step 13 (Both procedures): Reconnect battery and function test before reassembly

• Reconnect the negative battery cable using a 10mm socket.
• Cycle the window up/down while watching the regulator tracks (keep fingers clear).
• If the glass tilts or binds, loosen the glass clamps with a 10mm socket, align the glass, then re-torque: Torque to 70 in-lb (8 Nm).

Step 14 (Both procedures): Reinstall water shield and trim

• Press the water shield back into place; add water shield butyl tape if needed.
• Reinstall the trim panel: align the top edge first, then press clips in by hand.
• Reinstall screws using a Phillips #2 or Torx T20 screwdriver.

---

✅ After Repair

• Run the window fully down and fully up 3 times to confirm smooth travel.
• Listen for clicking/popping (often a mis-seated clip or misaligned glass).
• Check for water leaks after the next rain or a car wash—water shield sealing is critical.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor)

DIY Cost: $90-$250 (parts only)

You Save: $260-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
