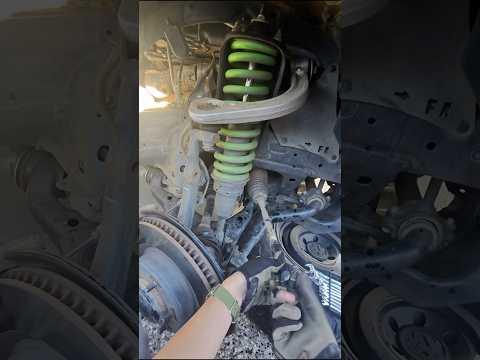

🔧 GX460 - Outer Tie Rod End Replacement

The outer tie rod end connects your steering rack to the steering knuckle, and it’s a common wear item that can cause loose steering, clunking, or uneven tire wear. The job is straightforward, but you must keep the toe setting close and get an alignment afterward.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (one side)

Assumption: Front outer tie rod end replacement (most common); torque values shown are typical for this platform—verify if you have access to OEM specs.

---

⚠️ Safety & Precautions

• ⚠️ Support the SUV with jack stands before working under/near the suspension.
• ⚠️ Keep fingers clear of pinch points while separating the tie rod from the knuckle.
• ⚠️ Do not hammer directly on the steering knuckle studs/threads.
• ⚠️ An alignment is required after replacement to prevent rapid tire wear.
• ⚠️ Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Breaker bar 1/2"
• Torque wrench 3/8" (10-100 ft-lbs)
• Torque wrench 1/2" (50-250 ft-lbs)
• 21mm socket
• 19mm socket
• 19mm combination wrench
• Needle-nose pliers
• Side cutters
• Paint marker
• Measuring tape
• Penetrating oil
• Ball joint separator (specialty)
• Pick tool
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front outer tie rod end - Qty: 1
• Cotter pin for tie rod end stud - Qty: 1
• Anti-seize compound - Qty: 1

---

📋 Before You Begin

• Park on level ground, center the steering wheel, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Break the front lug nuts loose slightly using a 21mm socket and breaker bar before lifting.
• Spray penetrating oil on the tie rod end jam nut (lock nut) and the stud nut at the knuckle.
• Measure and record toe reference: use a measuring tape to measure from tire tread to tread (front and rear of the tires) or count turns during removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the wheel

• Lift the front corner using a floor jack (rated 3-ton minimum) at the front jacking point.
• Support the frame with jack stands (rated 3-ton minimum).
• Remove the lug nuts with a 21mm socket and take the wheel off.

Step 2: Mark the current adjustment

• Use a paint marker to mark the position of the tie rod end relative to the inner tie rod threads.
• Use a measuring tape to record the length from the jam nut to the end of the tie rod end (or another repeatable point).
• This helps keep toe close for the drive to alignment.

Step 3: Remove the cotter pin and loosen the stud nut

• Straighten and remove the cotter pin using needle-nose pliers and side cutters.
• Loosen and remove the tie rod end stud nut with a 19mm socket.
• If the cotter pin is packed with rust, use a pick tool to clean the hole first.

Step 4: Separate the tie rod end from the steering knuckle

• Install a ball joint separator (specialty) and press the stud out of the knuckle.
• A ball joint separator is a tool that pushes tapered studs apart without damaging threads.
• Avoid striking the stud threads with a hammer.

Step 5: Loosen the jam nut (lock nut)

• Hold the inner tie rod with a 19mm combination wrench if needed, and loosen the jam nut with a 19mm combination wrench.
• Only crack it loose for now—do not spin it far away from its mark.

Step 6: Remove the old outer tie rod end

• Unthread the outer tie rod end by hand, counting exact turns until it comes off.
• Write the turn count down (example: “19.5 turns”).
• Turn counting keeps alignment close.

Step 7: Install the new outer tie rod end

• Apply a light coat of anti-seize compound to the inner tie rod threads.
• Thread the new tie rod end on the exact same number of turns you counted.
• Align it to your paint marks and measurement.

Step 8: Seat the stud into the steering knuckle and torque

• Insert the tie rod end stud into the steering knuckle.
• Install the stud nut and tighten using a 19mm socket.
• Torque to 67 Nm (49 ft-lbs).
• If the nut slot doesn’t line up with the cotter hole, tighten slightly more until it aligns (do not loosen to align).
• Install a new cotter pin using needle-nose pliers and bend the legs over.

Step 9: Tighten the jam nut (lock nut)

• Hold the tie rod end body to prevent twisting, then tighten the jam nut with a 19mm combination wrench.
• Torque to 74 Nm (55 ft-lbs).

Step 10: Reinstall the wheel and lower

• Reinstall the wheel and hand-tighten lug nuts.
• Lower the SUV from the jack stands using the floor jack.
• Tighten lug nuts in a star pattern with a 21mm socket and torque wrench 1/2".
• Torque to 131 Nm (97 ft-lbs).

---

✅ After Repair

• Start the engine and turn the steering wheel lock-to-lock while parked; confirm no binding or clunks.
• Road test at low speed first; verify the steering wheel is close to centered and the SUV tracks straight.
• Check the cotter pin is fully installed and the jam nut is tight.
• Get a professional 4-wheel alignment as soon as possible (toe will be off even if you counted turns).

---

💰 DIY vs Shop Cost

Shop Cost: $220-$500 (parts + labor, plus alignment)

DIY Cost: $35-$120 (parts only)

You Save: $185-$380 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
