🔧 Outback - Automatic Transmission Fluid Drain & Fill

On your Outback, a DIY “transmission fluid change” is typically a drain-and-fill (not a full machine flush). You’ll drain the pan, refill through the dipstick tube, then set the fluid level correctly—this matters because too much or too little ATF can cause shifting issues.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a level surface and support the car with jack stands, not just a jack.
• ⚠️ Transmission fluid can be hot—let it cool if needed to avoid burns.
• ⚠️ Keep the engine running only when instructed; stay clear of moving parts.
• ⚠️ Use wheel chocks so the car cannot roll.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 10-quart)
• 14mm socket
• 3/8" drive ratchet
• Torque wrench (10–100 ft-lb range)
• Long-neck funnel
• Shop rags
• OBD2 scan tool with ATF temperature data (specialty)
• Fluid transfer measuring container (at least 6-quart)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Automatic transmission fluid (Subaru ATF-HP equivalent) - Qty: 6 quarts
• Transmission drain plug crush washer - Qty: 1
• External automatic transmission filter - Qty: 1 (only if equipped)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Warm the transmission with a 10–15 minute drive so the ATF drains more completely.
• If you have an OBD2 tool: get it ready to view transmission fluid temperature (ATF temp).
• Plan to measure what you drain and refill the same amount as a starting point.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and level the car

• Use a floor jack (rated 3-ton minimum) to raise the front, then support with jack stands (rated 3-ton minimum).
• Keep the car as level as you can front-to-rear for an accurate dipstick reading.
• Place wheel chocks and wear safety glasses and nitrile gloves.

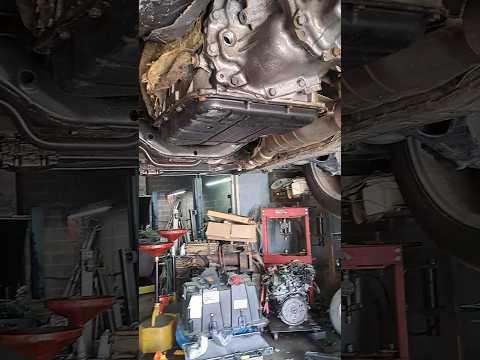

Step 2: Drain the old ATF

• Place a drain pan (at least 10-quart) under the transmission drain plug.
• Use a 14mm socket and 3/8" drive ratchet to remove the drain plug.
• Let it drain until it slows to an occasional drip.
• Pour the drained fluid into a fluid transfer measuring container so you know exactly how much came out.
• Tip: Write the drained amount on a paper towel.

Step 3: Reinstall the drain plug with a new crush washer

• Install a new transmission drain plug crush washer on the drain plug.
• Thread the drain plug in by hand first to avoid cross-threading.
• Use a torque wrench with a 14mm socket: Torque to 44 Nm (33 ft-lbs).
• Wipe the area clean with shop rags.

Step 4: Refill through the transmission dipstick tube

• Open the hood and locate the transmission dipstick (it’s the ATF level stick).
• Insert a long-neck funnel into the dipstick tube.
• Add the same amount of Subaru ATF-HP equivalent you measured out.
• Start by adding ~0.5 quart less than drained if you’re unsure, then top off during the level check.

Step 5: Circulate the fluid and check the level (important)

• With the car still safely supported, start the engine and keep your foot on the brake.
• Slowly move the shifter through P-R-N-D and back, pausing ~2 seconds in each position, then leave it in P.
• Use an OBD2 scan tool with ATF temperature data (specialty) to confirm the ATF is at normal operating temp before final level setting.
• With the engine idling in P, remove, wipe, and reinsert the dipstick, then read the level.
• Add ATF in small amounts (about 0.25 quart at a time) using the long-neck funnel until it’s at the correct mark for the current temperature range shown on the dipstick.
• Tip: Don’t overfill—small adds only.

Step 6: Inspect for leaks and clean up

• With the engine idling, look under the car for seepage at the drain plug.
• Shut the engine off, remove tools, and lower the car using the floor jack and jack stands.
• Dispose of used ATF responsibly (most parts stores accept it).

---

✅ After Repair

• Test drive 10–15 minutes and confirm normal shifting (no flare, shudder, or delayed engagement).
• Re-check the ATF level on level ground, following the dipstick’s temperature range guidance.
• Re-check for leaks around the drain plug after the test drive.
• If the fluid was very dark/burnt: consider doing another drain-and-fill after a few days to further refresh the fluid.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$450 (parts + labor)

DIY Cost: $55-$120 (parts only)

You Save: $165-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
