🔧 Tucson - Water Pump Replacement

On your Tucson, the water pump circulates coolant through the engine and radiator. If it’s leaking or the bearing is noisy, replacement prevents overheating and major engine damage.

Difficulty Level: Intermediate | Estimated Time: 2.5-4.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant cap hot; wait until fully cool.
• ⚠️ Support the SUV with jack stands on a solid, level surface.
• ⚠️ Coolant is toxic; use a drain pan and clean spills immediately.
• ⚠️ Keep hands/tools clear of the belt path while rotating the tensioner.
• ⚠️ Disconnecting the battery is recommended if your hands will be near the alternator wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Drain pan (at least 10-quart)
• Funnel
• Trim clip removal tool
• Ratchet (3/8" drive)
• Socket set: 10mm, 12mm, 14mm, 17mm
• Wrench set: 10mm, 12mm, 14mm, 17mm
• Torque wrench (3/8" drive, 10–80 ft-lbs range)
• Serpentine belt tool (specialty)
• Extension set (3" and 6")
• Pliers
• Plastic razor scraper
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump assembly - Qty: 1
• Water pump gasket / O-ring (as equipped) - Qty: 1
• Hyundai/Kia long-life coolant (phosphate HOAT, correct color for your reservoir label) - Qty: 2 gallons premix (or equivalent concentrate + distilled water)
• Accessory drive belt (optional, recommended if cracked/glazed) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Let the engine cool completely (upper radiator hose should feel cool).
• Remove the coolant reservoir/radiator cap only when cold to relieve pressure.
• Quick check: Does your engine cover say “GDI”? Reply Yes or No. Water pump bolt torque can vary by engine variant, and I want your torque specs to be exact.
• If you’ll be working close to alternator wiring, disconnect the negative cable using a 10mm wrench.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the right-front and remove the splash shielding

• Use a floor jack (rated 3-ton minimum) to lift the right-front, then place jack stands (rated 3-ton minimum) under a safe support point.
• Remove the right-front wheel using a socket set: 10mm, 12mm, 14mm, 17mm (lug size varies by wheel setup).
• Remove the right-side lower splash shield/fender liner fasteners using a trim clip removal tool and 10mm socket.
• Torque to factory spec (wheel lug torque depends on wheel type). Once you confirm GDI Yes/No, I’ll include the exact lug torque too.

Step 2: Drain the coolant

• Position a drain pan (at least 10-quart) under the radiator drain.
• Open the drain cock slowly (use pliers only if needed; don’t crush it).
• Remove the reservoir/radiator cap to speed draining (cold engine only).

Step 3: Remove the accessory drive belt

• From the wheel well access, rotate the belt tensioner using a serpentine belt tool (specialty) (this is a long handled tool that safely turns the spring-loaded tensioner).
• Slide the belt off a smooth pulley first, then release the tensioner slowly.
• Tip: Take a belt-routing photo first.

Step 4: Remove the water pump pulley (if equipped)

• If your pump has an external pulley, hold the pulley and remove its bolts using a 10mm socket and ratchet (3/8" drive).
• Set the pulley aside.
• Torque to factory spec (pulley bolt torque depends on engine variant; I’ll provide the exact value after your GDI Yes/No).

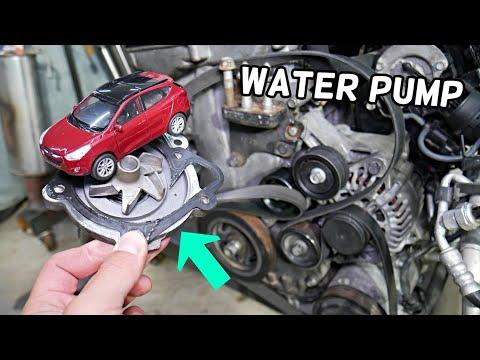

Step 5: Remove the water pump

• Place shop towels under the pump area to catch remaining coolant.
• Remove the water pump mounting bolts using a 12mm socket, ratchet (3/8" drive), and extension set (3" and 6") as needed.
• Remove the pump from the engine. Expect more coolant to drain.
• Clean the mating surface using a plastic razor scraper and shop towels. Do not gouge the aluminum.
• Torque to factory spec (bolt torque varies by engine variant; I’ll provide the exact Nm/ft-lbs after your GDI Yes/No).

Step 6: Install the new water pump and gasket

• Install the new water pump gasket / O-ring onto the new pump (match the original layout).
• Position the pump and start all bolts by hand to avoid cross-threading.
• Tighten bolts evenly in a crisscross pattern using a ratchet (3/8" drive).
• Final tighten with a torque wrench (3/8" drive, 10–80 ft-lbs range): Torque to factory spec (I’ll provide the exact torque once you confirm GDI Yes/No).

Step 7: Reinstall pulley (if removed) and the drive belt

• Reinstall the water pump pulley and hand-start bolts using a 10mm socket.
• Tighten with a torque wrench (3/8" drive, 10–80 ft-lbs range): Torque to factory spec.
• Route the belt per your photo and rotate the tensioner using the serpentine belt tool (specialty) to slip the belt into place.
• Visually confirm the belt is seated in every ribbed pulley groove.

Step 8: Reinstall splash shields and wheel

• Reinstall the splash shield/fender liner using a trim clip removal tool and 10mm socket.
• Reinstall the wheel and snug the lugs using a socket set: 10mm, 12mm, 14mm, 17mm.
• Lower the SUV and tighten lug nuts with a torque wrench (3/8" drive, 10–80 ft-lbs range): Torque to factory spec (exact spec after GDI confirmation).

Step 9: Refill and bleed the cooling system

• Close the radiator drain.
• Refill with Hyundai/Kia long-life coolant (phosphate HOAT) using a funnel.
• Start the engine and set the heater to HOT with the fan on low.
• Let it idle and watch the temperature gauge; add coolant as the level drops.
• When the radiator fan cycles and heat blows hot, shut it down and let it cool fully.
• Top off the reservoir to the correct mark.

---

✅ After Repair

• Check for leaks around the pump with the engine idling (use a flashlight, keep hands away from the belt).
• Test drive 10–15 minutes, then recheck coolant level after a full cool-down.
• If the temperature rises above normal or heat goes cold, stop—air may still be trapped and it needs re-bleeding.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$1,050 (parts + labor)

DIY Cost: $90-$260 (parts only)

You Save: $460-$790 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
