🔧 Rogue - Alternator Replacement

You’ll remove the old alternator, move the drive belt off it, and install a new one so your battery charges correctly again. This job is tight for space but very doable at home with patience and the right tools.

Difficulty Level: Intermediate | Estimated Time: 2–3 hours

---

⚠️ Safety & Precautions

• 🔋 Always disconnect the negative battery cable before working on the alternator to avoid sparks and short circuits.
• 🌀 The serpentine belt and pulleys can pinch fingers; never work near them with the engine running.
• 🧯 Let the engine cool completely to avoid burns from hot metal and coolant hoses.
• 🧱 If you raise the front of your Rogue, always use jack stands; never rely on a jack alone.
• ⚡ Keep metal tools away from the battery positive terminal and alternator power stud once the battery is reconnected.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ 3/8" drive ratchet
• 🛠️ 1/2" drive ratchet
• 🛠️ 10mm socket
• 🛠️ 12mm socket
• 🛠️ 14mm socket
• 🛠️ 14mm deep socket
• 🛠️ 17mm socket
• 🛠️ 3/8" drive torque wrench (5–80 ft-lbs range)
• 🛠️ 1/2" drive torque wrench (30–150 ft-lbs range)
• 🛠️ Serpentine belt tool or 3/8" breaker bar (18"+ length)
• 🛠️ Short extension (3") for sockets
• 🛠️ Flathead screwdriver (medium)
• 🛠️ Trim clip removal tool
• 🛠️ Needle-nose pliers
• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum)
• 🛠️ Wheel chocks
• 🛠️ Work light or flashlight
• 🛠️ Mechanic’s gloves
• 🛠️ Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Alternator (120A, MR20DD spec) - Qty: 1
• 🔩 Serpentine drive belt - Qty: 1
• 🔩 Alternator main power terminal nut (if not reusable) - Qty: 1
• 🔩 Plastic push clips for lower engine splash shield - Qty: 4–6
• 🔩 Dielectric grease (electrical) - Qty: 1 small tube
• 🔩 Battery terminal protector spray - Qty: 1

---

📋 Before You Begin

• 🅿️ Park the Rogue on a level surface, shift to Park, and set the parking brake.
• 🧊 Let the engine cool for at least 30 minutes if it was running.
• 🔋 Turn off all accessories (lights, AC, radio), then disconnect the negative battery terminal using a 10mm socket.
• 📸 Take a clear picture of the serpentine belt routing from above before removing it. This saves headaches later

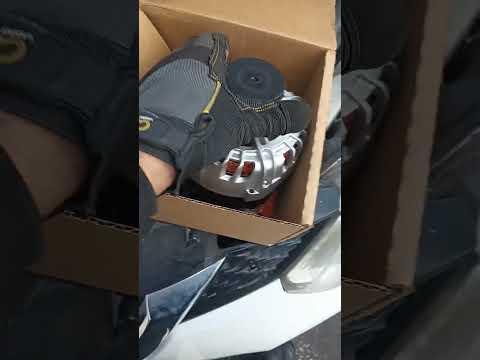

• 📦 Unbox the new alternator and compare it to the old one once removed: same plug, same mounting points, same pulley size.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and secure the vehicle

• Place wheel chocks behind the rear wheels.
• Use the floor jack to lift the front of your Rogue at the front center jacking point.
• Set the front of the vehicle down onto jack stands placed under the proper frame or pinch weld points.
• Give the vehicle a firm shake to confirm it is stable before going underneath. Never work under a jack alone

Step 2: Remove the lower engine splash shield

• Use the trim clip removal tool to pop out the plastic push clips holding the front part of the lower engine cover.
• Use a 10mm socket and ratchet to remove any small bolts along the edge.
• Lower the shield and set it aside; keep the clips and bolts together so you don’t lose them.

Step 3: Disconnect the battery

• Open the hood and locate the battery on the driver’s side.
• Use a 10mm socket to loosen the nut on the negative (black) battery terminal.
• Lift the negative cable off and tuck it to the side so it cannot spring back to the terminal.
• Torque on reassembly: 5 Nm (4 ft-lbs)

Step 4: Gain access to the alternator from above

• The alternator is mounted on the front of the engine, slightly toward the passenger side.
• If needed for space, remove the air intake snorkel: use a 10mm socket to remove its bolts and a flathead screwdriver to loosen any hose clamps, then lift it out.
• Set any removed parts where you can easily put them back in the same order.

Step 5: Relieve tension from the serpentine belt

• The belt tensioner is a spring-loaded pulley that keeps the belt tight.
• From above (or from below if easier), place a 14mm socket on the tensioner bolt using a serpentine belt tool or 3/8" breaker bar.
• Rotate the tensioner clockwise to relieve belt tension. It will be stiff; that’s normal.
• While holding the tensioner, slide the belt off the alternator pulley with your free hand.
• Slowly let the tensioner return to its rest position.
• You do not need to fully remove the belt yet; just get it off the alternator pulley.

Step 6: Remove alternator electrical connections

• At the back of the alternator, locate the main power cable held by a nut and the smaller plug connector.
• Use a 12mm socket and ratchet to remove the nut on the main power stud.
• Pull the cable eyelet off the stud and push it aside.
• Press the tab on the plastic connector and pull it straight out of the alternator; use needle-nose pliers gently if the tab is stiff.
• Do not pry hard on plastic tabs

Step 7: Remove the alternator mounting bolts

• Locate the upper and lower alternator mounting bolts.
• Use a 14mm socket and 3/8" ratchet to loosen and remove the upper mounting bolt.
• Use a 14mm socket (or 14mm deep socket if needed) and ratchet to remove the lower mounting bolt from the bracket.
• The alternator may still be snug in the bracket; gently rock it by hand to free it.
• Torque on reassembly (both bolts): 41 Nm (30 ft-lbs)

Step 8: Remove the alternator from the engine bay

• Once unbolted, slide the alternator out of its bracket.
• Work it upward through the top opening near the radiator support, rotating it as needed to clear hoses and wiring.
• If space is tight, double-check that any nearby brackets or the intake duct are out of the way.
• Set the old alternator aside and compare it with the new one: same mounting ears, pulley alignment, plug style, and power stud location.

Step 9: Transfer and inspect the belt (and replace if needed)

• If you are installing a new belt, fully remove the old belt by sliding it off all pulleys while holding the tensioner with the 14mm socket and breaker bar.
• Route the new belt following your photo or the under-hood diagram: around crank pulley, AC compressor, idler, alternator, and tensioner exactly as shown.
• Make sure the belt ribs sit fully in each pulley groove, not on the edges.

Step 10: Install the new alternator

• Lower the new alternator into place in the bracket, aligning the bolt holes.
• Install the lower mounting bolt by hand first to avoid cross-threading, then the upper bolt by hand.
• Use a 14mm socket and 3/8" ratchet to snug both bolts.
• Use the 3/8" drive torque wrench and 14mm socket to tighten both mounting bolts to 41 Nm (30 ft-lbs).

Step 11: Reconnect alternator electrical connections

• Apply a tiny dab of dielectric grease to the alternator plug terminals if you have it.
• Push the plug connector into the new alternator until it clicks.
• Place the main power cable eyelet onto the alternator power stud.
• Thread on the nut by hand, then tighten it with a 12mm socket and 3/8" ratchet to snug.
• Use the 3/8" drive torque wrench and 12mm socket to tighten the nut to 9 Nm (7 ft-lbs) — just firmly snug, not crushed.

Step 12: Reinstall the serpentine belt on the alternator

• Double-check belt routing on all lower pulleys from below using your work light.
• From above, place the belt near the alternator pulley but not fully on yet.
• Use the serpentine belt tool or 3/8" breaker bar with a 14mm socket to rotate the tensioner clockwise again.
• While holding tension off, slide the belt fully onto the alternator pulley.
• Slowly release the tensioner so it tightens the belt.
• Verify from above and below that the belt ribs are properly seated on every pulley.

Step 13: Reinstall intake parts and splash shield

• If you removed the air intake snorkel, reinstall it now using the 10mm socket and flathead screwdriver to tighten bolts and clamps.
• Reinstall the lower engine splash shield from underneath.
• Secure the shield with its bolts using a 10mm socket and its plastic clips using the trim clip removal tool or fingers.
• Torque for splash shield bolts: 7 Nm (5 ft-lbs) — just snug.

Step 14: Lower the vehicle and reconnect the battery

• Use the floor jack to lift the front slightly, remove the jack stands, then lower the Rogue to the ground.
• At the battery, place the negative cable back on the negative terminal.
• Use a 10mm socket to tighten the clamp.
• Use the 3/8" drive torque wrench and 10mm socket to tighten to 5 Nm (4 ft-lbs) — firm but not crushing.
• Spray a light coat of battery terminal protector if available.

Step 15: Initial start-up and charging check

• Start the engine and listen for any unusual squealing or grinding near the belt and alternator.
• Look at the belt with the engine running (keep hands/tools away) and confirm it runs smoothly without wobble.
• Check the instrument cluster: the battery/charging warning light should go out shortly after starting.
• If you have a multimeter, measure voltage at the battery with the engine idling: it should read about 13.5–14.8 volts.

---

✅ After Repair

• 🚗 Test drive your Rogue for 10–15 minutes with headlights, AC, and rear defogger on. Watch for warning lights.
• 🔍 After the drive, recheck belt seating and listen for any new noises with the hood open.
• 📊 If available, recheck charging voltage at the battery to confirm stable charging.
• 🔁 If you replaced the belt, recheck belt condition and tension after a few days of driving.

---

💰 DIY vs Shop Cost

Shop Cost: $550–$850 (parts + labor)

DIY Cost: $220–$380 (parts only)

You Save: $330–$470 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 1.5–2.0 hours.

---
