🔧 Accord - Front Door Lock Actuator Replacement

The door lock actuator is the electric motor/gear unit that locks and unlocks your door when you use the key fob or the lock switch. Replacing it requires removing the front door panel, peeling back the vapor barrier, then swapping the actuator on the latch assembly.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative cable to reduce airbag risk (side airbag is in the door).
• ⚠️ Do not turn the ignition on with door airbag connectors unplugged.
• ⚠️ Support the window glass if you loosen any window guide bolts.
• ⚠️ Work carefully around sharp door-inner metal edges.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" extension for 1/4" drive ratchet
• Phillips #2 screwdriver
• Flat trim clip tool
• Needle-nose pliers
• Pick tool
• Torx T30 bit
• Torque wrench (inch-pound)
• Work light
• Painter’s tape
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door lock actuator (left or right as needed) - Qty: 1
• Door panel plastic retainers/clips - Qty: 5-10
• Butyl tape (vapor barrier adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground and remove the key.
• Lower the window about halfway (this makes access easier).
• Use a 10mm socket to disconnect the battery negative cable and wait at least 3 minutes.
• Put painter’s tape along the door edge and around the handle area to prevent scratches.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the front door switch panel

• Use a flat trim clip tool to carefully pry up the window/lock switch panel.
• Unplug the electrical connectors by pressing the tabs with a pick tool.

Step 2: Remove screws from the door panel

• Use a Phillips #2 screwdriver to remove the screw behind the inside door handle trim area (if equipped).
• Use a Phillips #2 screwdriver to remove screws in the armrest pull handle area.
• Tip: Keep screws in a cup.

Step 3: Remove the front door panel

• Use a flat trim clip tool to pop the clips around the lower and side edges of the door panel.
• Lift the panel straight up to unhook it from the window ledge.
• Unplug any remaining connectors (speaker/courtesy light) using the pick tool.

Step 4: Remove the vapor barrier

• Carefully peel back the plastic vapor barrier by hand.
• Use needle-nose pliers to help separate sticky butyl without tearing the plastic.
• Tip: Don’t throw it away; it prevents water leaks.

Step 5: Unbolt the latch/actuator area

• At the door’s trailing edge (where the latch is), use a Torx T30 bit with a ratchet to loosen/remove the latch mounting screws.
• Inside the door, use a 10mm socket with a 6" extension to remove any latch/actuator mounting bolts you can access.

Step 6: Disconnect the rods and electrical connector

• Locate the lock rods (metal rods linking handle/lock knob to the latch).
• Use a pick tool to flip open the small plastic rod retainers, then lift the rod out.
• Unplug the actuator electrical connector by pressing the tab with the pick tool.
• Tip: Take a photo before removing rods.

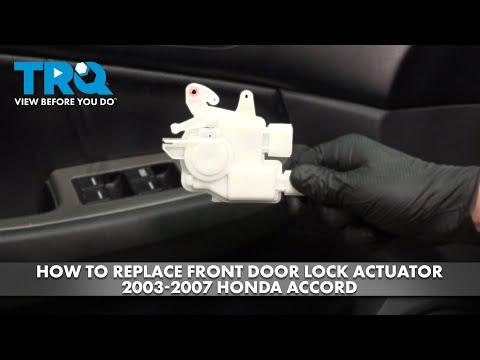

Step 7: Remove the actuator from the latch assembly

• Work the latch/actuator assembly out through the service opening in the door.
• On a bench or steady surface, use a Phillips #2 screwdriver or 10mm socket (varies by actuator design) to remove the actuator fasteners.
• Separate the actuator from the latch assembly.

Step 8: Install the new actuator

• Install the new actuator onto the latch assembly in the same orientation.
• Use the Phillips #2 screwdriver or 10mm socket to tighten the actuator fasteners.
• If you have an inch-pound torque wrench, snug fasteners firmly without over-tightening (these are small fasteners).

Step 9: Reinstall latch/actuator and reconnect rods

• Feed the latch/actuator assembly back into the door using your hands and a work light.
• Reconnect the electrical connector until it clicks.
• Reinstall the lock rods and close the plastic retainers using a pick tool.
• Reinstall the latch screws at the door edge using a Torx T30 bit.

Step 10: Reassemble the door

• Press the vapor barrier back into place; add butyl tape where it no longer sticks.
• Reconnect door panel electrical connectors.
• Hang the door panel on the top ledge, then press clips in around the edges.
• Reinstall the screws using a Phillips #2 screwdriver.
• Reconnect the switch panel connectors, then snap the switch panel back in using your hands.

Step 11: Reconnect battery and function test

• Use a 10mm socket to reconnect the battery negative cable.
• Test lock/unlock with the key fob and the interior switch.
• Test inside handle and outside handle operation to confirm the rods are seated correctly.

---

✅ After Repair

• Verify the door locks/unlocks smoothly 10+ times from the switch and key fob.
• Confirm the door opens from inside and outside every time.
• Check that the window and mirror switches work after reassembly.
• Listen for water/air leaks on a short drive; re-seat the vapor barrier if needed.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor)

DIY Cost: $50-$180 (parts only)

You Save: $200-$370 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
