🔧 Civic - Serpentine Belt Replacement

Your Civic’s serpentine belt drives key accessories like the alternator and A/C compressor. Replacing a worn or cracked belt helps prevent squealing, charging issues, and overheating (if the belt slips).

Difficulty Level: Intermediate | Estimated Time: 0.8-1.5 hours

Assumption: Your Civic uses an automatic spring tensioner (most do).

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; keep hands away from hot parts.
• ⚠️ Support the car with jack stands; never rely on a floor jack alone.
• ⚠️ Keep fingers clear of the tensioner; it is spring-loaded and snaps back hard.
• ⚠️ Do not start the engine until the belt is fully seated on every pulley.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 19mm lug nut socket
• 1/2" drive breaker bar
• 3/8" drive ratchet
• 3/8" drive torque wrench
• Flat trim clip tool
• Phillips screwdriver
• 10mm socket
• 12mm socket
• 14mm socket
• 14mm box wrench
• Flashlight
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1
• Engine splash shield / fender liner clips - Qty: 5-10

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Take a quick photo of the belt routing under the hood (or sketch it). This is your “map” for re-install.
• Lay out your new belt and compare its length and rib count to the old belt.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift the front-right corner and remove the wheel

• Use a 19mm lug nut socket and 1/2" drive breaker bar to loosen the lug nuts slightly (while the tire is still on the ground).
• Lift the front-right jack point using a floor jack, then support with jack stands.
• Remove the lug nuts with the 19mm lug nut socket and take the wheel off.

Step 2: Remove the splash shield / fender liner access

• Use a flat trim clip tool to pop out plastic clips holding the liner/splash shield.
• Remove any small bolts using a 10mm socket (some fasteners may vary).
• Peel the liner back enough to see the belt and pulleys clearly; use a flashlight.

Step 3: Relieve belt tension (automatic tensioner)

• Find the belt tensioner. It’s a spring-loaded arm with a pulley.
• Put a 14mm socket on the tensioner’s hex/bolt head (or use a 14mm box wrench if space is tight).
• Pull the wrench smoothly to rotate the tensioner and loosen the belt.
• Tip: Move slowly; the spring is strong.

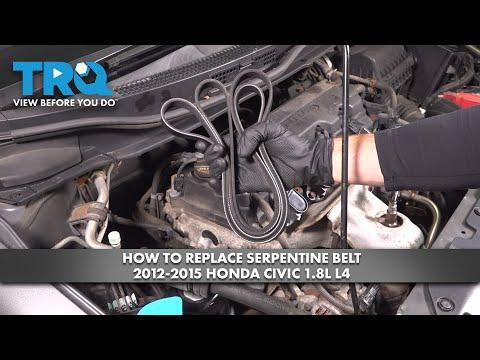

Step 4: Remove the old belt

• While holding the tensioner back with the 14mm socket/14mm box wrench, slip the belt off the easiest-to-reach pulley (often the alternator).
• Let the tensioner return gently (don’t let it snap back).
• Remove the belt fully and note how it was routed.

Step 5: Inspect pulleys and the tensioner pulley

• Spin each pulley by hand. They should spin smoothly and quietly (no grinding).
• Check pulley grooves for rubber buildup; wipe with a clean rag if needed.
• Look at the tensioner pulley surface for cracks or wobble.

Step 6: Route the new belt

• Route the new belt around the pulleys using your photo/sketch as a guide.
• Make sure the ribbed side sits in the grooved pulleys and the smooth side rides on smooth pulleys.
• Leave one easy pulley for last (the one you’ll slip it onto with the tension released).

Step 7: Apply tension and seat the belt

• Rotate the tensioner again using the 14mm socket or 14mm box wrench.
• Slip the belt onto the final pulley, then slowly release the tensioner.
• Visually confirm the belt is fully seated on every pulley (no ribs hanging off an edge).
• Tip: A mis-seated belt will shred quickly.

Step 8: Reinstall splash shield and wheel

• Reposition the liner/splash shield and reinstall fasteners using a 10mm socket, Phillips screwdriver, and the flat trim clip tool as needed.
• Reinstall the wheel and hand-thread lug nuts.
• Lower the car off the jack stands using the floor jack.
• Tighten lug nuts in a star pattern with a 3/8" drive torque wrench: Torque to 108 Nm (80 ft-lbs).

---

✅ After Repair

• Start the engine and let it idle for 30-60 seconds while you watch the belt track.
• Listen for squealing or slapping sounds; shut off immediately if the belt walks off a pulley.
• Turn A/C on and headlights on; confirm idle is smooth and no belt noise appears.
• Recheck the splash shield is secure and not rubbing the belt area.

---

💰 DIY vs Shop Cost

Shop Cost: $150-$300 (parts + labor)

DIY Cost: $25-$60 (parts only)

You Save: $125-$240 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.5 hours.

---
