🔧 Grand Cherokee - Front Brake Pad Replacement

You’ll remove the front wheels, swing the front brake calipers out of the way, swap the old pads for new ones, and compress the caliper pistons so everything fits back together. This restores safe stopping power and prevents rotor damage when pads get thin.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• 🛑 Support your Grand Cherokee with jack stands—never rely on a jack alone.
• 🧤 Brake dust is irritating—wear nitrile gloves and a dust mask; avoid blowing dust with compressed air.
• 🔥 Brakes can be hot—let the front brakes cool before starting.
• 🧪 Brake fluid can damage paint—keep rags handy and wipe spills immediately.
• 🔌 Battery disconnect is not required for front pads.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum) - Qty: 2
• Wheel chocks - Qty: 2
• 21mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (20-200 ft-lbs range)
• 13mm socket
• 21mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-50 ft-lbs range)
• Flat trim tool
• C-clamp (6" minimum)
• Bungee cord
• Wire brush
• Brake cleaner spray
• Nitrile gloves
• Safety glasses
• Dust mask

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad hardware kit (abutment clips) - Qty: 1
• Brake caliper grease (high-temp silicone) - Qty: 1
• Brake cleaner - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, put the shifter in PARK, and set the parking brake.
• 🧱 Place wheel chocks behind the rear tires.
• 🧪 Open the hood and check the brake fluid reservoir level. If it’s near “MAX,” siphon a little out (so it won’t overflow when you compress the pistons).
• 🛞 Crack the front lug nuts loose 1/4 turn using a 21mm socket and breaker bar before lifting.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front end

• Lift the front at the proper jacking point using a floor jack.
• Set the vehicle onto jack stands and give it a firm shake to confirm it’s stable.
• Remove the front wheels using a 21mm socket.

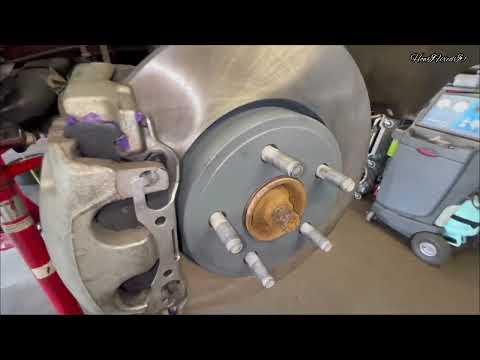

Step 2: Locate the front caliper and remove the caliper bolts

• Turn the steering to give yourself space (turn left to work on the right side, and vice-versa).
• On the back of the caliper, remove the two caliper guide pin bolts using a 13mm socket and 3/8" ratchet.
• Tip: Keep bolts from touching dirt.

Step 3: Remove the caliper and support it

• Carefully lift the caliper off the bracket.
• Hang the caliper from the suspension spring using a bungee cord.
• Do not let the caliper hang by the brake hose.

Step 4: Remove the old pads and hardware clips

• Slide the inner and outer pads out of the bracket by hand.
• Pry the stainless hardware clips (abutment clips) out of the bracket using a flat trim tool.
• Clean the pad “landing” areas on the bracket using a wire brush and brake cleaner spray.

Step 5: Compress the caliper piston

• Place one old brake pad against the piston face (this protects the piston).
• Compress the piston slowly using a C-clamp (6" minimum) until it bottoms out.
• Watch the brake fluid reservoir while compressing. If it rises too high, remove a little fluid.
• Tip: Slow pressure helps prevent mess.

Step 6: Install new hardware clips and pads

• Install the new stainless hardware clips into the bracket by hand.
• Apply a thin film of brake caliper grease (high-temp silicone) where the pad ears touch the clips (metal-to-metal contact points only).
• Slide the new inner and outer pads into place in the bracket.

Step 7: Reinstall the caliper

• Lower the caliper over the new pads.
• Install the caliper guide pin bolts using a 13mm socket and 3/8" torque wrench.
• Torque to 28 Nm (21 ft-lbs).

Step 8: Reinstall wheels and torque lug nuts

• Reinstall the wheels and hand-thread lug nuts.
• Lower the vehicle off the jack stands using a floor jack.
• Tighten lug nuts in a star pattern using a 21mm socket and 1/2" torque wrench.
• Torque to 135 Nm (100 ft-lbs).

Step 9: Pump the brake pedal and recheck fluid

• Before starting the engine, pump the brake pedal 10–15 times until it feels firm.
• Recheck the brake fluid level and top off if needed (use the correct DOT brake fluid listed on the reservoir cap).
• Do a quick visual check for any leaks or anything left loose.

---

✅ After Repair

• 🚗 Test at low speed first: verify the pedal is firm and the vehicle stops straight.
• 🔊 Some light noise is normal for the first few stops; loud grinding is not—stop and recheck your work.
• 🛑 Pad bed-in: make 6–10 moderate stops from ~30–40 mph with cool-down driving between stops (avoid hard panic stops for the first 200 miles).

---

💰 DIY vs Shop Cost

Shop Cost: $300-$550 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $240-$370 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.0 hours.

---
