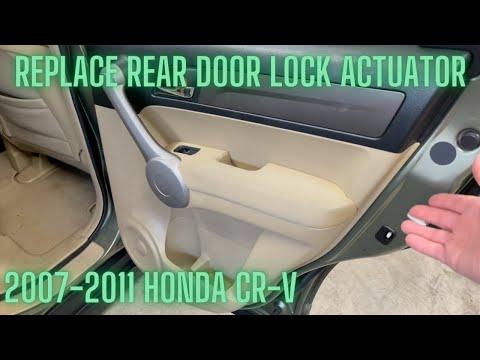

🔧 CR-V - Rear Door Lock Actuator Replacement

The rear door lock actuator is the small electric motor that locks/unlocks your rear door when you use the key fob or power lock switch. On your CR-V it’s commonly part of the latch/lock assembly inside the door, so you’ll remove the interior door panel, disconnect the linkage rods, and swap the actuator/latch unit.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (first-time DIY)

---

⚠️ Safety & Precautions

• ⚠️ Work with the window fully up to prevent glass damage.
• ⚠️ Keep fingers clear of sharp door edges and sheet metal.
• ⚠️ If you disconnect the battery, use a 10mm wrench and isolate the negative cable so it can’t spring back.
• ⚠️ Don’t tear the vapor barrier (plastic sheet). It keeps water off the electronics.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim removal tool set
• Small flathead screwdriver
• Phillips #2 screwdriver
• Phillips #3 screwdriver
• Torx T30 driver
• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4" drive)
• Needle-nose pliers
• Pick tool
• Flashlight
• Painter’s tape
• Torque wrench (inch-pound)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear door lock actuator - Qty: 1
• Rear door latch/lock assembly (if actuator is integrated) - Qty: 1
• Door panel retaining clips - Qty: 6-10
• Butyl tape (vapor barrier sealant) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and remove the key.
• Make sure the rear window glass is fully UP.
• Optional but recommended: disconnect the battery negative terminal using a 10mm wrench.
• Quick check (2 questions): Which rear door are you working on (left or right), and did you buy an actuator only or a latch/actuator assembly? (Procedure below covers both.)

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear interior door handle trim

• Use a trim removal tool set to gently pry off the small trim piece around/behind the inside door handle.
• Use a Phillips #2 screwdriver to remove the screw(s) hidden behind the trim (if equipped).

Step 2: Remove the armrest/pull-handle screws

• Use a small flathead screwdriver or trim removal tool set to pop out the little screw covers in the pull handle/armrest.
• Use a Phillips #2 screwdriver to remove the screws underneath.

Step 3: Release the door panel clips and lift the panel off

• Put painter’s tape on the painted door edge to avoid scratches.
• Use a trim removal tool set to pop the panel clips loose around the edges (you’ll hear loud “pops”).
• Lift the whole panel straight UP to unhook it from the top window channel.
• If the panel has a courtesy light at the bottom, unplug it using a pick tool to release the tab.
• Tip: Pull near each clip, not the middle.

Step 4: Peel back the vapor barrier (plastic water shield)

• Use a trim removal tool set to gently separate the plastic sheet from the door.
• Warm, sticky butyl is normal—go slow so the plastic doesn’t tear.
• If the butyl won’t reseal later, plan to use butyl tape.

Step 5: Locate and disconnect the actuator electrical connector

• Use a flashlight to find the latch/actuator area at the rear edge of the door (near the door striker).
• Press the connector tab using a pick tool and unplug the actuator/latch connector.

Step 6: Disconnect the linkage rods (lock rod and handle rod)

• Look for metal rods going into the latch. They’re held by small colored plastic clips.
• Use a small flathead screwdriver to flip the plastic clip “open,” then lift the rod out.
• Use needle-nose pliers only if needed—plastic clips can break if forced.
• Tip: Take a photo before removal.

Step 7: Remove the latch/actuator from the door edge

• Open the door and find the 3 fasteners on the door edge holding the latch.
• Remove them using either:
• Use a Phillips #3 screwdriver if they are Phillips-head, or
• Use a Torx T30 driver if they are Torx-head.
• Support the latch with your hand so it doesn’t drop inside the door.

Step 8: Remove the latch/actuator assembly through the access opening

• From inside the door, maneuver the latch out through the large access hole.
• If it hangs up, re-check for any rod still connected.

Step 9: Swap the actuator (if it’s a separate piece)

• If your replacement is actuator only, transfer it onto the latch on the bench.
• Remove actuator screws using a Phillips #2 screwdriver (or the same head type used on your unit).
• Install the new actuator and snug screws evenly.

Step 10: Reinstall the latch/actuator into the door

• Feed the assembly back into place through the access hole.
• Start the 3 door-edge latch fasteners by hand, then tighten using a Phillips #3 screwdriver or Torx T30 driver.
• Torque to 9 Nm (80 in-lb) using a torque wrench (inch-pound) if you can fit it.

Step 11: Reconnect linkage rods and electrical connector

• Insert each rod into its hole, then rotate the plastic clip back to the “locked” position.
• Plug in the connector until it clicks (use a flashlight to confirm it’s fully seated).

Step 12: Test before reassembling the door panel

• If you disconnected the battery, reconnect it using a 10mm socket and 1/4" drive ratchet.
• Test power lock/unlock with the key fob and the driver’s lock switch.
• Confirm the inside handle opens the door, and the child lock (if enabled) behaves correctly.

Step 13: Reseal the vapor barrier and reinstall the door panel

• Press the vapor barrier back into the sticky butyl; add butyl tape if it won’t stick.
• Hang the door panel on the top lip first, then press clips in around the perimeter.
• Reinstall screws using a Phillips #2 screwdriver, then snap trim covers back in place.

---

✅ After Repair

• Cycle lock/unlock 10+ times to confirm consistent operation.
• Make sure the door locks manually with the knob and with the key fob.
• Listen for any rattles; if you hear one, a panel clip may be loose or missing.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor)

DIY Cost: $60-$220 (parts only)

You Save: $190-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
