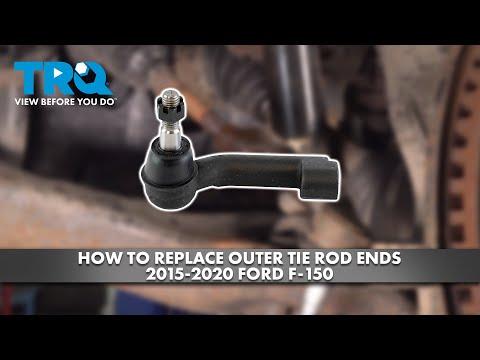

🔧 F-150 - Outer Tie Rod End Replacement

The outer tie rod end connects your steering rack to the steering knuckle, and it’s a common wear item that can cause loose steering, clunks, or uneven tire wear. Replacement is straightforward, but you must keep the new part adjusted close to the old setting and get an alignment afterward.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (one side)

Assumption: replacing the outer tie rod end (most common).

---

⚠️ Safety & Precautions

• ⚠️ Support the truck with jack stands; never rely on a floor jack.
• ⚠️ Keep fingers clear when separating the joint; it can “pop” loose suddenly.
• ⚠️ If using a hammer near the knuckle, avoid hitting ABS wiring/sensors.
• ⚠️ Steering alignment will be off if you don’t match the old length; get a professional alignment after.
• ⚠️ Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (20-200 ft-lbs range)
• Needle-nose pliers
• Diagonal cutters
• Paint marker
• Tape measure
• 18mm combination wrench
• 21mm combination wrench
• Tie rod end puller (specialty)
• Hammer (16-24 oz)
• Penetrating oil
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• Cotter pin (tie rod end) - Qty: 1
• Grease packet (if tie rod end has grease fitting) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Keep the steering wheel centered and don’t turn it while the tie rod is disconnected.
• Spray penetrating oil on the tie-rod jam nut and the tie-rod end nut at the knuckle.
• Plan to drive gently to the alignment shop afterward (no highway if steering feels off).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the wheel lug nuts

• Use a 21mm socket and breaker bar to loosen the front wheel lug nuts about 1 turn.

Step 2: Raise and support the front corner

• Use a floor jack (rated 3-ton minimum) to lift at the approved front jacking point.
• Set the truck onto jack stands (rated 3-ton minimum).
• Leave the floor jack lightly touching as a backup support.

Step 3: Remove the wheel

• Use a 21mm socket to remove the lug nuts, then remove the wheel.

Step 4: Mark the current tie-rod setting

• Use a paint marker to mark the position of the jam nut on the tie rod.
• Use a tape measure to measure from a fixed point (example: end of inner tie rod) to the center of the outer tie rod stud, and write it down.
• This helps keep toe close to original.

Step 5: Loosen the jam nut

• Hold the outer tie rod end with an 18mm combination wrench (if needed) and loosen the jam nut using a 21mm combination wrench.
• Only break it loose; do not spin it far yet.

Step 6: Remove the cotter pin (if equipped)

• Use needle-nose pliers to straighten the cotter pin legs.
• Use diagonal cutters and needle-nose pliers to pull the cotter pin out.
• Always install a new cotter pin.

Step 7: Remove the tie-rod end nut from the knuckle

• Use a 21mm socket (or 21mm combination wrench) to remove the nut from the tie rod stud at the steering knuckle.

Step 8: Separate the tie rod end from the knuckle

• Use a tie rod end puller (specialty) to press the stud out of the knuckle. (A puller is a clamp tool that pushes the stud out without damaging parts.)
• If needed, tap the knuckle boss lightly using a hammer (16-24 oz) while tension is on the puller.
• Avoid using a “pickle fork” unless you are replacing the boot; it can tear the rubber boot.

Step 9: Unscrew the old outer tie rod end

• Count the turns as you unscrew the tie rod end by hand (example: “18 turns”), and write it down.
• Spin the outer tie rod end off the inner tie rod.

Step 10: Install the new outer tie rod end

• Thread the new tie rod end on by hand the exact same number of turns you counted.
• Line up your paint mark and/or your measurement so the new part matches the old setting as closely as possible.

Step 11: Reconnect the stud to the knuckle and torque

• Insert the tie rod stud into the steering knuckle.
• Install the nut using a 21mm socket.
• Torque to 111 Nm (82 ft-lbs) using a 1/2" drive torque wrench (20-200 ft-lbs range).
• If it uses a castellated nut, tighten slightly as needed to align the cotter pin hole (do not loosen to align).
• Install a new cotter pin using needle-nose pliers.

Step 12: Tighten the jam nut

• Hold the tie rod end with an 18mm combination wrench and tighten the jam nut using a 21mm combination wrench.
• Torque to 70 Nm (52 ft-lbs) using a torque wrench if you can fit it; otherwise tighten firmly to match the original position.

Step 13: Reinstall the wheel

• Put the wheel back on and hand-thread the lug nuts.
• Lower the truck using the floor jack (rated 3-ton minimum), then remove the jack stands.
• Torque lug nuts in a star pattern using a torque wrench: Torque to 203 Nm (150 ft-lbs).

---

✅ After Repair

• Turn the steering wheel lock-to-lock while stopped and listen for clunks or binding.
• Test drive at low speed first. Confirm the steering wheel is close to centered and the truck tracks straight.
• Get a professional front-end alignment as soon as possible to prevent tire wear.
• If the new tie rod end has a grease fitting, add grease with a grease gun until the boot just starts to swell (do not overfill).

---

💰 DIY vs Shop Cost

Shop Cost: $200-$450 (parts + labor + basic alignment)

DIY Cost: $35-$120 (parts only)

You Save: $165-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
