🔧 Accord - Rear Door Lock Actuator Replacement

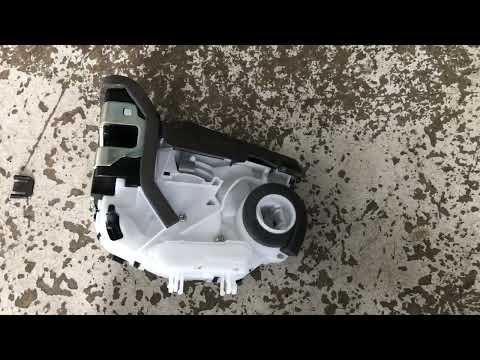

The rear door lock actuator is the small electric motor that moves the lock mechanism when you press the key fob or power lock switch. On your Accord, it’s mounted to the door latch assembly inside the rear door, so you’ll remove the interior door panel, peel back the moisture barrier, and swap the actuator/latch unit.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (one door)

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery before unplugging door wiring to prevent accidental shorts.
• ⚠️ Keep the window fully up while working inside the door.
• ⚠️ Don’t tear the moisture barrier (plastic sheet); it prevents water leaks into the cabin.
• ⚠️ Support the door panel as you disconnect wiring so it doesn’t hang by the harness.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 6" extension (1/4")
• Phillips #2 screwdriver
• Plastic trim removal tool set
• Pick tool
• Needle-nose pliers
• Flashlight
• Painter’s tape
• Torque wrench (in-lb or low-range ft-lb)
• Mechanic’s gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear door lock actuator / latch assembly - Qty: 1
• Door panel retainer clips - Qty: 4-10 (as needed)
• Butyl tape (moisture barrier adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground, turn the ignition off, and remove the key.
• Lower the rear window slightly, then raise it fully to confirm it’s seated at the top.
• Use a 10mm socket to disconnect the negative battery terminal and isolate it so it can’t spring back. Wait 3 minutes before unplugging connectors.
• Apply painter’s tape along the door edge and around the handle area to protect paint and trim.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear door switch/trim pieces

• Use a plastic trim removal tool to gently pry up the window switch panel (or small trim cover, depending on your door).
• Unplug the switch connector(s) by pressing the lock tab; use a pick tool only if needed to help lift the tab (don’t force it).
• Set the switch panel aside.

Step 2: Remove the rear door panel screws

• Look for screws behind the inside door handle trim and/or armrest pocket.
• Remove screws using a Phillips #2 screwdriver.
• Keep screws grouped so they go back in the same locations.

Step 3: Pop the door panel clips loose

• Slide a plastic trim removal tool under the bottom edge of the door panel.
• Pry outward to release each clip one-by-one as you work around the sides.
• If a clip stays in the door, remove it with needle-nose pliers and reinstall it onto the panel.

Step 4: Lift the door panel off the window ledge

• With the clips released, lift the entire panel straight upward to unhook it from the top window channel.
• Support the panel close to the door and unplug any remaining connectors using your hands (use a flashlight to see clearly).

Step 5: Remove the inside handle cable/rod (if equipped)

• Some setups use a cable to the inside handle. The cable is held by a plastic “keeper.”
• Use a pick tool to open the keeper, then lift the cable end out of the handle.
• Take a quick photo before disconnecting.

Step 6: Peel back the moisture barrier

• Carefully peel the plastic moisture barrier back just enough to access the latch area near the rear edge of the door.
• If the adhesive won’t stick later, you’ll replace it with butyl tape.

Step 7: Disconnect the actuator electrical connector

• Locate the latch/actuator assembly at the rear edge of the door (near the striker).
• Press the connector tab and unplug it. Use a pick tool lightly if the tab is stubborn.

Step 8: Disconnect the lock and handle linkage

• You’ll see metal rods (linkages) going into the latch.
• Each rod is held by a small colored plastic clip.
• Flip the clip open using a pick tool, then lift the rod out with needle-nose pliers.
• Don’t bend the rods—pull them straight out.

Step 9: Remove the latch/actuator mounting bolts

• At the rear edge of the door (where it closes), remove the latch mounting bolts using a 10mm socket, 1/4" ratchet, and extension.
• Support the latch with your free hand so it doesn’t drop inside the door.
• Remove the assembly through the access opening in the door.
• Torque to 9 Nm (80 in-lb) on reinstallation.

Step 10: Install the new actuator/latch assembly

• Place the new unit into the door in the same orientation as the old one.
• Start the latch bolts by hand first to avoid cross-threading, then tighten with a 10mm socket.
• Torque to 9 Nm (80 in-lb).
• Reconnect the linkage rods and snap each colored clip fully closed.
• Reconnect the electrical connector until it clicks.

Step 11: Refit the moisture barrier

• Press the moisture barrier back into place all the way around the perimeter.
• Use butyl tape anywhere the original adhesive no longer seals.

Step 12: Reinstall the door panel

• Reconnect all door electrical connectors by hand (listen/feel for the click).
• Hook the top of the door panel onto the window ledge first, then push the panel straight in.
• Press around the edges to snap all clips back in.
• Reinstall the screws using a Phillips #2 screwdriver.
• Reinstall the switch panel by plugging it in and pressing it into place.

---

✅ After Repair

• Reconnect the battery negative terminal using a 10mm socket.
• Test power locks from the driver switch and the key fob.
• From inside, test: door handle open, lock/unlock knob operation, and confirm the door locks securely.
• Check the rear door child safety lock (on the door edge) still works as expected.
• If the door won’t open from inside or outside, a linkage clip is likely not fully snapped closed—recheck Step 8.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor)

DIY Cost: $70-$220 (parts only)

You Save: $180-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
