🔧 F-150 - Tie Rod End Replacement

To give you the exact Ford-correct steps, tools/parts list, and torque specs, I need one quick detail about which part you’re replacing. “Tie rod end” usually means the outer end at the steering knuckle, but some people mean the inner tie rod at the steering rack.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Support your F-150 with jack stands before working under/around the suspension.
• ⚠️ Don’t hammer directly on the steering knuckle or stud threads.
• ⚠️ After replacement, you should get an alignment ASAP to prevent tire wear.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Breaker bar 1/2"
• Torque wrench 1/2" drive (30-250 ft-lbs range)
• Lug nut socket (21mm)
• Socket set (8mm-24mm)
• Wrench set (10mm-24mm)
• Pliers
• Diagonal cutters
• Pry bar
• Tie rod end puller (specialty)
• Penetrating oil
• Paint marker
• Tape measure

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• New cotter pin - Qty: 1
• Jam nut (if not reusable) - Qty: 1
• Inner tie rod - Qty: 1
• Steering rack boot clamp set (if damaged) - Qty: 1

---

📋 Before You Begin

• 🧭 Park on level ground, set the parking brake, and chock the rear wheels.
• Loosen the front wheel lug nuts slightly using a 21mm lug nut socket and breaker bar 1/2".
• Spray penetrating oil on the tie-rod jam nut and the tie-rod stud nut.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm which tie rod you’re replacing

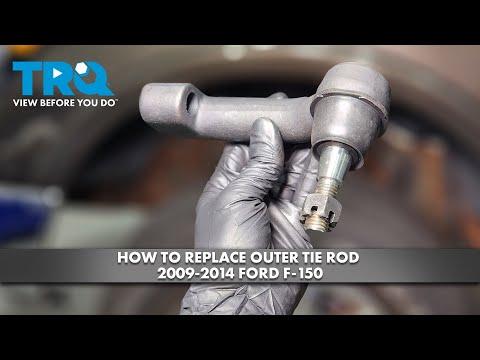

• Outer tie rod end = the ball-joint end that bolts into the steering knuckle.
• Inner tie rod = the joint at the steering rack, under the rubber boot.
• Reply with: Outer or Inner, and Driver or Passenger.

Step 2: Safely lift and remove the wheel

• Lift the front using a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove the lug nuts with a 21mm lug nut socket and take off the wheel.

Step 3: Mark the current tie rod setting (helps get you to the alignment shop)

• Use a paint marker to mark the relationship between the jam nut and the outer tie rod end.
• Use a tape measure to measure from a fixed point on the inner tie rod to the center of the outer tie rod stud; write it down.
• This helps keep toe close to original.

Step 4: Loosen the jam nut

• Hold the inner tie rod with an appropriate wrench.
• Break the jam nut loose using an appropriately sized wrench (size varies by brand).

Step 5: Separate the outer tie rod from the steering knuckle (Outer tie rod path)

• Remove the cotter pin using pliers or diagonal cutters.
• Remove the tie-rod stud nut using an appropriately sized socket.
• Use a tie rod end puller (specialty) to pop the stud out of the knuckle (this avoids damaging boots and threads).

Step 6: Remove and install the outer tie rod end (Outer tie rod path)

• Count the turns as you unthread the old outer tie rod end by hand; write the number down.
• Thread the new outer tie rod end on the same number of turns (or match your tape-measure measurement).
• Insert the stud into the steering knuckle.

Step 7: Tighten fasteners (torque-spec step)

• Use a torque wrench 1/2" drive (30-250 ft-lbs range) to torque the tie-rod stud nut and the jam nut to Ford spec.
• Important: Torque specs vary by steering/suspension build; I’ll provide the exact numbers once you reply Outer/Inner and Driver/Passenger.
• Install a new cotter pin using pliers (never reuse a cotter pin).

Step 8: Inner tie rod additional steps (Inner tie rod path only)

• Remove the steering rack boot clamps using pliers, then slide the boot back.
• Remove the inner tie rod from the rack using the correct inner tie rod tool; if you’re doing inner, tell me and I’ll list the exact specialty tool needed.
• Reinstall the boot and clamps, making sure the boot is not twisted.

Step 9: Reinstall wheel and lower

• Reinstall the wheel and hand-tighten lug nuts using a 21mm lug nut socket.
• Lower the truck, then torque lug nuts using a torque wrench 1/2" drive (30-250 ft-lbs range) to the correct spec.

---

✅ After Repair

• 🔍 Turn the steering wheel lock-to-lock and confirm nothing binds or rubs.
• Check the new boot/cotter pin are fully seated and secure.
• Get a front-end alignment as soon as possible (same day is best).
• Test drive slowly first; confirm the steering wheel is centered and it tracks straight.

---

💰 DIY vs Shop Cost

Shop Cost: $200-$500 (parts + labor + alignment)

DIY Cost: $40-$150 (parts only, alignment extra)

You Save: $160-$350 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
