🔧 Accord - Front Window Regulator Replacement

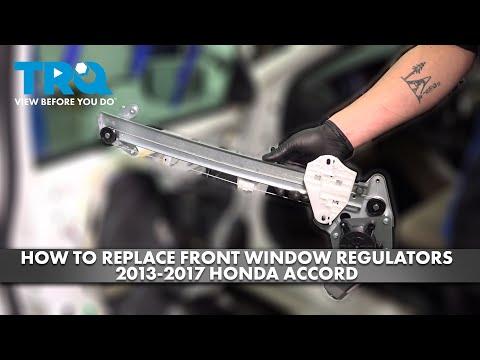

The window regulator is the cable-and-track mechanism that moves the glass up and down. On your Accord, replacing it means removing the door panel, supporting the glass, unbolting the regulator, and installing the new one.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

---

⚠️ Safety & Precautions

• ⚠️ Keep hands clear of the scissor/cable mechanism and glass edges.
• ⚠️ Support the door glass with tape before unbolting it from the regulator.
• ⚠️ Turn ignition OFF and remove the key before unplugging switches/connectors.
• ⚠️ Battery disconnect is recommended if you’ll have the airbag/impact area disturbed; use a 10mm socket and wait at least 3 minutes before working near harnesses.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 3" socket extension
• Phillips screwdriver #2
• Trim removal tool set
• Pick tool
• Needle-nose pliers
• Painter’s tape (1.5"-2" wide)
• Work gloves
• Safety glasses
• Torque wrench (in-lb or Nm range)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door window regulator - Qty: 1
• Front window regulator motor - Qty: 1 (only if not included)
• Door panel trim clips - Qty: 1 set (recommended)
• Butyl tape for vapor barrier - Qty: 1 (if original adhesive won’t reseal)

---

📋 Before You Begin

• Park on level ground and lower the window until you can access the glass-to-regulator fasteners (if the window still moves).
• If the window is stuck: you’ll remove the panel first and then manually move the glass.
• Optional but recommended: disconnect the battery negative cable using a 10mm socket.
• Quick check: confirm which side you’re doing (driver or passenger) and whether your replacement is regulator only or regulator + motor.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the door trim pieces and screws

• Use a trim removal tool to carefully pry up the window switch panel; unplug the connectors.
• Use a pick tool to pop off the small plastic caps hiding screws (usually in the pull handle area).
• Remove the door panel screws using a Phillips screwdriver #2 (and/or 10mm socket if equipped).

Step 2: Remove the door panel

• Use a trim removal tool to pop the panel clips around the perimeter (work from the bottom edge upward).
• Lift the door panel straight up to unhook it from the window ledge.
• Disconnect remaining connectors and any door-handle cable(s) using needle-nose pliers if needed.
• Pro tip: Take a photo before unplugging everything.

Step 3: Peel back the vapor barrier

• Carefully peel the plastic vapor barrier back using your hands and a trim removal tool.
• Try not to tear it; you must reseal it to prevent water leaks and wind noise.

Step 4: Support the window glass

• Use painter’s tape to secure the glass to the door frame (run multiple vertical strips from outside over the top of the door frame to inside).
• Wear work gloves and safety glasses while working around the glass edge.

Step 5: Unbolt the glass from the regulator

• If needed, temporarily plug the window switch back in and turn ignition ON to move the regulator until the glass fasteners line up with the access holes; then turn ignition OFF.
• Remove the glass-to-regulator bolts using a 10mm socket.
• Torque to factory specification when reinstalling (use your torque wrench).

Step 6: Remove the regulator (and motor if separate)

• Unplug the window motor connector.
• Remove the regulator mounting bolts using a 10mm socket and ratchet with a 3" extension.
• If your new regulator does not include a motor, transfer the motor by removing its fasteners using a 10mm socket (or Phillips if equipped), then install it onto the new regulator.
• Torque to factory specification for regulator and motor fasteners using your torque wrench.

Step 7: Install the new regulator

• Guide the new regulator into the door and loosely start all mounting bolts by hand.
• Tighten mounting bolts using a 10mm socket, then torque to factory specification using the torque wrench.
• Reconnect the motor electrical connector.

Step 8: Reattach the glass and verify smooth operation

• Lower or raise the regulator to meet the glass clamps (use the switch temporarily if needed).
• Install the glass-to-regulator bolts using a 10mm socket and torque to factory specification with the torque wrench.
• Remove the painter’s tape, then cycle the window up/down while watching for binding or tilt.
• Pro tip: Stop immediately if you hear cable popping.

Step 9: Reseal the vapor barrier and reinstall the door panel

• Press the vapor barrier back onto the door; use butyl tape if the original adhesive won’t stick.
• Reconnect all electrical connectors and door-handle cable(s).
• Hang the door panel on the top ledge, then press clips in by hand around the perimeter.
• Reinstall screws using a Phillips screwdriver #2 (and/or 10mm socket if equipped).
• Snap trim caps back on using the trim removal tool.

Step 10: Initialize the auto window (if equipped)

• Turn ignition ON.
• Hold the window switch to fully lower the window, then keep holding for 2 seconds.
• Hold the switch to fully raise the window, then keep holding for 2 seconds.

---

✅ After Repair

• Verify the window goes up/down smoothly and seals evenly at the top.
• Check that the door locks, handle, and speaker work (if removed).
• If you disconnected the battery, reset the clock/audio presets as needed and confirm no warning lights.
• Listen for rattles over bumps; loose clips are common—replace with the door panel trim clips set if needed.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor)

DIY Cost: $90-$250 (parts only)

You Save: $260-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
