🔧 F-150 - Rear Door Lock Actuator Replacement

On your F-150, the “lock actuator” is typically integrated into the rear door latch assembly. Replacing it means removing the rear door interior panel, peeling back the water shield, unplugging the latch connector, then swapping the latch/actuator unit at the door edge.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work with the window fully up and the key out of the truck.
• ⚠️ Use a trim removal tool (a plastic pry tool) to avoid breaking clips and scratching panels.
• ⚠️ Don’t rip the water shield (vapor barrier). It prevents water leaks and wind noise.
• ⚠️ If you choose to disconnect the battery: use a 10mm socket on the negative terminal and wait 2 minutes before unplugging door wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Plastic trim removal tool set
• Small pick tool
• Flathead screwdriver (small)
• Phillips screwdriver #2
• 7mm socket
• 8mm socket
• 10mm socket
• 1/4" drive ratchet
• 3" extension (1/4" drive)
• Torx T30 bit socket
• Torque wrench (inch-pound or small Nm range)
• Needle-nose pliers
• Painter’s tape
• Shop light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear door latch/lock actuator assembly (LH or RH as needed) - Qty: 1
• Rear door trim panel clips (optional, replace any broken) - Qty: 2-10
• Butyl tape for water shield (optional) - Qty: 1

---

📋 Before You Begin

• Park on level ground and open the rear door you’re repairing.
• Use painter’s tape to protect painted edges near the door handle/door panel corners.
• Set the window to the fully UP position.
• If disconnecting the battery: loosen the negative terminal with a 10mm socket and isolate the cable so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear door interior trim panel

• Use a plastic trim removal tool set to gently pop off the small trim covers in/near the interior pull handle and around the door handle area (where equipped).
• Remove any exposed screws using a 7mm socket (common on this door panel) and/or a Phillips screwdriver #2 depending on what you find.
• Starting at the bottom edge, slide the plastic trim removal tool set behind the panel and pop the panel clips free one-by-one.
• Lift the panel straight up to unhook it from the window channel.

Step 2: Disconnect switches and the interior handle cable/rod

• Unplug the window/lock switch connector(s) using a small pick tool to release any locking tab. Don’t pull wires—pull the connector.
• If your rear door uses a cable for the interior handle: rotate the cable housing out of its bracket, then lift the cable end out of the handle with a small pick tool.
• If it uses a metal rod: use a small pick tool or needle-nose pliers to flip the plastic retainer open, then lift the rod out.

Step 3: Peel back the water shield (vapor barrier)

• Carefully peel the water shield back just enough to access the latch area (rear edge of the door) using your hands and a plastic trim removal tool set.
• If the sticky sealer (butyl) won’t re-stick later, plan to use butyl tape during reassembly.

Step 4: Unplug the latch/actuator electrical connector

• Locate the latch connector near the door latch and press the tab to unplug it.
• If the tab is stubborn, use a small pick tool gently. Pick the tab, not the seal.

Step 5: Disconnect the latch linkages

• Disconnect the inside handle rod/cable from the latch (same style retainer as Step 2) using a small pick tool or needle-nose pliers.
• Disconnect the outside handle rod from the latch (you’ll usually see a colored plastic clip). Flip the clip open with a small pick tool, then lift the rod out.

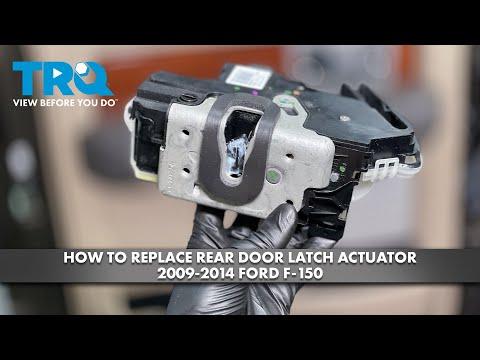

Step 6: Remove the rear door latch/actuator assembly

• At the door edge, remove the latch mounting screws (typically 3) using a Torx T30 bit socket with a 1/4" drive ratchet and 3" extension.
• Support the latch with your free hand so it doesn’t drop inside the door.
• Maneuver the latch/actuator assembly out through the access opening.

Step 7: Install the new latch/actuator assembly

• Feed the new latch/actuator into the door and align it at the door edge.
• Start all Torx screws by hand, then tighten with a Torx T30 bit socket.
• Torque to 8-10 Nm (71-89 in-lbs) using a torque wrench (inch-pound or small Nm range).

Step 8: Reconnect linkages and electrical connector

• Reconnect the outside handle rod and snap the plastic retainer fully closed using needle-nose pliers (gentle squeeze).
• Reconnect the inside handle rod/cable and lock its retainer using a small pick tool.
• Plug the latch connector back in until it clicks.

Step 9: Refit the water shield and reinstall the door panel

• Press the water shield back into place, re-sealing the edges by hand. Add butyl tape if needed.
• Reconnect the switch connector(s).
• Hang the door panel on the window channel (top edge first), then press the clips in around the perimeter with firm palm pressure.
• Reinstall screws using a 7mm socket and/or Phillips screwdriver #2 (snug only). Reinstall trim covers with the plastic trim removal tool set.

---

✅ After Repair

• Before fully closing the door, test: lock/unlock from the switch and key fob, and verify the inside/outside handles open the door normally.
• Listen for smooth actuator operation (no grinding/clicking loops).
• If you disconnected the battery, reconnect it using a 10mm socket, then re-test all door functions.
• Check that the door panel is fully clipped (no rattles) and that the water shield is sealed to prevent wet carpets.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$500 (parts + labor)

DIY Cost: $70-$200 (parts only)

You Save: $180-$300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
