🔧 Q50 - Outer Tie Rod End Replacement

The outer tie rod end connects your steering rack to the steering knuckle at the wheel. Replacing a worn tie rod end restores safe steering and helps prevent uneven tire wear.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (per side)

Assumption: outer tie rod end replacement; final torque specs should be verified in OEM service info for your exact build.

---

⚠️ Safety & Precautions

• ⚠️ Support the car with jack stands; never rely on a jack.
• ⚠️ Keep hands clear when separating the tie rod from the knuckle (it can “pop” free suddenly).
• ⚠️ Do not turn the steering wheel with the tie rod disconnected; it can strain the steering rack/clock spring.
• ⚠️ An alignment is strongly recommended immediately after this repair to prevent tire wear.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (pair, rated 2-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench
• Adjustable wrench (12" minimum)
• Open-end wrench set (17mm-22mm)
• Pliers
• Side cutters
• Paint marker
• Tape measure
• Penetrating oil
• Tie rod end puller (specialty)
• Pickle fork separator (specialty)
• Hammer (16 oz)
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• New tie rod end nut - Qty: 1
• Cotter pin - Qty: 1
• Anti-seize compound - Qty: 1

---

📋 Before You Begin

• Park on level ground, straighten the front wheels, and set the parking brake.
• Place wheel chocks behind the rear tires.
• Use a paint marker to mark the tie rod end position relative to the jam nut.
• Spray penetrating oil on the tie rod end threads and the jam nut, then wait 5–10 minutes.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the wheel lug nuts

• Use a 21mm socket and breaker bar to crack the lug nuts loose about 1/4 turn (don’t remove them yet).

Step 2: Lift and support the front corner

• Use a floor jack to lift the front corner at the proper jacking point.
• Set the car down onto jack stands and give the car a gentle shake to confirm it’s stable.
• Remove the wheel using the 21mm socket.

Step 3: Measure and mark for a “close” alignment

• Use a tape measure to record a reference length from a fixed point on the tie rod end to the jam nut (or count exposed threads).
• Use a paint marker to add a clear line across the jam nut and inner tie rod threads.
• This helps keep toe close to original.

Step 4: Loosen the jam nut

• Hold the inner tie rod with an adjustable wrench (12" minimum) if it wants to turn.
• Use the correct open-end wrench (17mm-22mm) to loosen the jam nut by turning it counterclockwise (just break it free; don’t spin it far).

Step 5: Remove the tie rod end nut at the steering knuckle

• If your tie rod end uses a cotter pin, straighten and remove it using pliers and side cutters.
• Remove the tie rod end nut using the correct socket/open-end wrench (17mm-22mm).

Step 6: Separate the tie rod end from the knuckle

• Install a tie rod end puller (specialty) over the joint and tighten it until the stud pops free.
• If using a pickle fork separator (specialty), drive it in with a hammer (16 oz) until the joint separates.
• Puller is gentler on parts than pickle fork.

Step 7: Remove the old tie rod end (count turns)

• Spin the outer tie rod end off the inner tie rod by hand while counting the exact number of turns (example: 17.5 turns).
• Write the number down using the paint marker on a piece of tape or note.

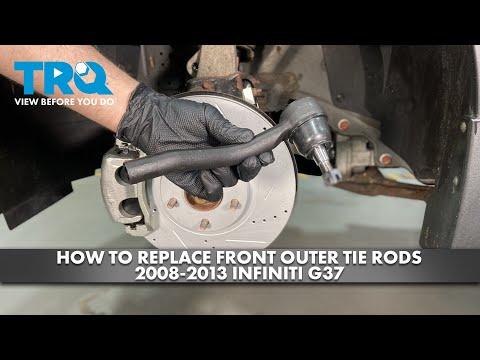

Step 8: Install the new tie rod end

• Apply a light coat of anti-seize compound to the inner tie rod threads.
• Thread the new outer tie rod end on the same number of turns you counted during removal.
• Align it to your paint marks and measurements using the tape measure.

Step 9: Reconnect to the steering knuckle and tighten

• Insert the tie rod stud into the steering knuckle.
• Install the new nut and tighten using a socket and torque wrench to Torque to OEM specification.
• If equipped, install a new cotter pin using pliers after torquing (never back the nut off to align; tighten slightly to align).

Step 10: Tighten the jam nut

• Hold the outer tie rod end so it doesn’t rotate using an adjustable wrench (12" minimum).
• Tighten the jam nut against the tie rod end using the correct open-end wrench (17mm-22mm) to Torque to OEM specification.

Step 11: Reinstall the wheel

• Install the wheel and hand-thread the lug nuts.
• Lower the car off the jack stands using the floor jack.
• Tighten lug nuts in a star pattern using a torque wrench to Torque to OEM specification.

---

✅ After Repair

• Start the engine and slowly turn the steering wheel lock-to-lock while parked; listen for clunks and confirm smooth movement.
• Road test at low speed first, then normal speed; the steering wheel may be slightly off-center until aligned.
• Get a professional front alignment as soon as possible (toe changes quickly destroy tires).
• Recheck the jam nut area for movement after a short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor + alignment)

DIY Cost: $40-$140 (parts only)

You Save: $210-$410 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours per side.

---
