🔧 Accord - Fuel Pump Replacement

Your Accord’s fuel pump sits inside the fuel tank as part of a pump module under the rear seat. Replacing it means safely relieving fuel pressure, opening the service access, swapping the module and seal, then checking carefully for leaks.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Work outside or in strong ventilation; fuel vapors ignite easily.
• ⚠️ No smoking, flames, heaters, or drop lights with hot bulbs near the car.
• ⚠️ Disconnect the battery negative cable before opening the tank access.
• ⚠️ Keep a Class B fire extinguisher nearby.
• ⚠️ Wear eye protection; fuel can spray when lines are opened.
• ⚠️ Clean the area before opening the tank to prevent dirt entering the fuel tank.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Nitrile gloves
• Safety glasses
• Fire extinguisher (Class B)
• 10mm socket
• 3/8" ratchet
• 3" extension
• Phillips screwdriver #2
• Trim removal tool (plastic)
• Needle-nose pliers
• Small flathead screwdriver
• Fuel line quick-disconnect tool set
• Fuel pump lock ring wrench (specialty)
• Brass punch
• Small hammer
• Torque wrench (10–60 Nm range)
• Shop towels
• Catch pan
• Permanent marker

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump module tank seal (O-ring gasket) - Qty: 1
• Fuel strainer (sock filter) - Qty: 1

---

📋 Before You Begin

• Park your Accord on level ground and open the windows for ventilation.
• Reduce fuel level if possible (under 1/2 tank is easier and safer).
• Have shop towels ready and a catch pan for small fuel spills.
• Plan to keep dirt out: vacuum the rear seat area before opening the access cover.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel pressure

• Open the hood.
• Use a 10mm socket to loosen the battery negative terminal and remove it from the battery post.
• Find the under-hood fuse/relay box and remove the fuel pump fuse or fuel pump relay (use needle-nose pliers if needed).
• Reconnect the battery negative temporarily using the 10mm socket, then start the engine and let it run until it stalls.
• Turn the key OFF, then disconnect the battery negative again using the 10mm socket.
• Tip: This minimizes fuel spray at the lines.

Step 2: Remove the rear seat bottom cushion

• From the rear seating area, locate the front edge of the rear seat bottom.
• Use a trim removal tool (plastic) to help release the seat bottom clips (pull upward at the front edge).
• Lift the seat bottom out and set it aside.

Step 3: Remove the fuel pump access cover

• Locate the round/oval metal service cover on the floor under the rear seat area.
• Use a Phillips screwdriver #2 or 10mm socket (fastener type varies) to remove the cover fasteners.
• Lift the cover off. Use shop towels to wipe and a vacuum if needed so no dirt falls into the opening.

Step 4: Disconnect electrical connector and fuel lines

• Unplug the fuel pump electrical connector by releasing the lock tab using a small flathead screwdriver (gentle—don’t break the tab).
• Place a catch pan and shop towels under the line connections.
• Disconnect the fuel line quick-connect fitting:
  • Use the fuel line quick-disconnect tool set if the connector requires it.
  • Then pull the line straight off while holding the fitting steady.
• Tip: Expect a small amount of fuel.

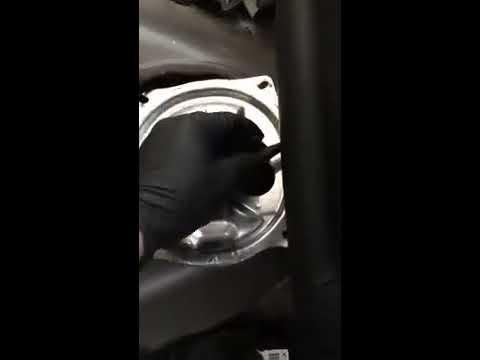

Step 5: Mark orientation and remove the lock ring

• Use a permanent marker to mark the pump module position relative to the tank (helps re-install correctly).
• Remove the lock ring:
  • Preferred: Use a fuel pump lock ring wrench (specialty) to turn the ring counterclockwise.
  • Alternate: Use a brass punch and small hammer to tap the ring counterclockwise in small steps. (Brass is softer and reduces spark risk.)

Step 6: Remove the fuel pump module

• Lift the module slowly straight up. Use shop towels to catch drips.
• Angle it as needed to clear the level float arm without bending it.
• Remove the old tank seal (O-ring) from the tank opening.

Step 7: Install the new seal and new module

• Install the new fuel pump module tank seal (O-ring gasket) into the tank groove (make sure it sits flat and not twisted).
• Lower the new module into the tank, keeping the float arm from catching.
• Align the module to your marker line.

Step 8: Reinstall the lock ring

• Thread/position the lock ring by hand first to avoid cross-binding.
• Tighten the lock ring using the fuel pump lock ring wrench (specialty) (or the brass punch and small hammer method) until fully seated and aligned like the original.
• If your replacement kit includes a lock ring torque spec sheet, follow it. If not, seat it firmly to the same stop position as removed.

Step 9: Reconnect fuel line and electrical

• Push the fuel line quick-connect straight on until it clicks/locks. Use shop towels to wipe any fuel.
• Reconnect the electrical connector until it clicks.

Step 10: Reinstall access cover and rear seat

• Reinstall the service cover using a Phillips screwdriver #2 or 10mm socket.
• If bolts are 10mm, snug them evenly and do not overtighten (small sheet metal fasteners strip easily).
• Reinstall the rear seat bottom and push down at the front until the clips snap in.

Step 11: Restore power and prime the system

• Reinstall the fuel pump fuse/relay.
• Reconnect the battery negative terminal using a 10mm socket. Torque to 5 Nm (44 in-lbs).
• Turn key to ON (do not crank) for 5 seconds, then OFF. Repeat 3 times to prime.

---

✅ After Repair

• Start the engine and let it idle.
• Check carefully for leaks at the pump top and fuel line connection (use a flashlight, not an open flame).
• If the engine cranks long or runs rough, repeat the key ON/OFF prime cycle.
• If a check engine light appears, scan for codes (often related to fuel pressure or connector not fully seated).

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,100 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $470-$650 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
