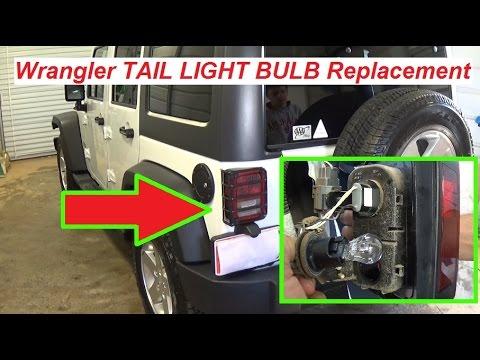

🔧 Wrangler - Taillight Bulb Replacement

On your Wrangler, the rear lamp assembly comes off with two small screws, then you twist out the bulb socket and swap the bulb. Replacing bulbs in pairs helps keep brightness and color consistent side-to-side.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition OFF and remove the key before starting.
• ⚠️ Let bulbs cool first; they get very hot.
• ⚠️ Wear gloves and don’t touch the glass bulb with bare fingers (skin oil can shorten bulb life).
• ⚠️ Support the lamp when pulling it out; don’t tug on the wiring.
• 🔋 Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Phillips #2 screwdriver
• Torx T20 screwdriver
• Trim/panel removal tool
• Nitrile gloves
• Safety glasses
• Clean rag

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear stop/turn/tail bulb (3157) - Qty: 2
• Rear reverse bulb (3156) - Qty: 2

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Open the tailgate to access the inner edge of each taillight.
• Check which bulb you’re replacing: brake/turn/tail (red lens) or reverse (clear lens).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the taillight screws

• Open the tailgate.
• Remove the two screws on the inboard edge of the taillight using a Phillips #2 screwdriver.
• If your screws are star-shaped instead, use a Torx T20 screwdriver instead of Phillips.
• Keep screws somewhere safe.

Step 2: Pull the taillight housing out

• Grip the taillight housing and pull it straight rearward.
• If it feels stuck, gently work it free with a trim/panel removal tool (a non-marring plastic pry tool).
• Do not pry hard against painted surfaces; use a clean rag as a buffer if needed.

Step 3: Remove the bulb socket

• Locate the socket for the bulb you’re replacing (stop/turn/tail or reverse).
• Twist the socket counterclockwise by hand and pull it out of the housing.

Step 4: Replace the bulb

• Wear nitrile gloves.
• Pull the old bulb straight out of the socket by hand.
• Push the new bulb straight into the socket until fully seated.
• If you accidentally touch the glass, wipe it with a clean rag.

Step 5: Reinstall the socket and housing

• Reinsert the socket into the housing and twist clockwise to lock by hand.
• Align the taillight housing locating pins and push it straight into place.
• Install the two screws using a Phillips #2 screwdriver or Torx T20 screwdriver.
• Torque: No published torque spec; tighten snug only (do not overtighten).

Step 6: Repeat on the other side

• Repeat Steps 1–5 for the other taillight.
• Replace bulbs in pairs for matching brightness.

---

✅ After Repair

• Turn ignition ON and test: tail lights, brake lights, turn signals, and reverse lights.
• If a bulb doesn’t work, remove the housing again and confirm the bulb is fully seated and the socket is locked.
• Watch for fast turn-signal blinking; it can indicate a bulb isn’t working.

---

💰 DIY vs Shop Cost

Shop Cost: $60-$150 (parts + labor)

DIY Cost: $10-$40 (parts only)

You Save: $50-$110 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.7 hours.

---
