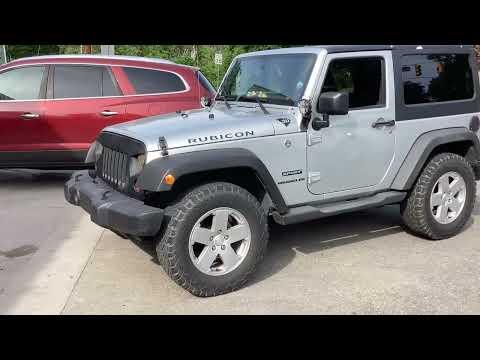

🔧 Wrangler - A/C Compressor Replacement

Replacing the A/C compressor on your Wrangler involves safely recovering the refrigerant, removing the drive belt and A/C lines, swapping the compressor, then evacuating and recharging the system. This is important because opening the A/C system introduces moisture and can damage the new compressor if the system isn’t vacuumed and recharged correctly.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant must be recovered with proper equipment; venting is illegal and dangerous.
• ⚠️ Wear safety glasses and gloves; liquid refrigerant can cause frostbite.
• ⚠️ Keep hands clear of pulleys/belt; do not run engine with tools near the belt drive.
• ⚠️ Do not let dirt enter open A/C lines; cap/plug lines immediately.
• ⚠️ Battery disconnect is recommended before working near the alternator and belt drive.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 10mm socket
• 13mm socket
• 15mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10–100 ft-lbs range)
• Serpentine belt tool (specialty)
• A/C line spring-lock/quick-disconnect tool set (specialty)
• Manifold gauge set for R-134a (specialty)
• Vacuum pump (specialty)
• Refrigerant recovery machine (specialty)
• Refrigerant charging scale (specialty)
• Trim clip tool
• Pick set (small hook pick)
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor clutch/pulley (if not included with compressor) - Qty: 1
• A/C line O-ring set (R-134a compatible) - Qty: 1
• PAG A/C oil (PAG 46) - Qty: 1
• R-134a refrigerant - Qty: Recharge to underhood label specification
• A/C accumulator/receiver-drier (recommended any time the system is opened) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and let the engine cool.
• Have the refrigerant professionally recovered using a recovery machine before disconnecting any A/C lines.
• Disconnect the negative battery cable using a 10mm socket.
• Lay out clean shop towels and have caps/plugs ready to seal open A/C lines immediately.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant (required)

• Use a refrigerant recovery machine (specialty) to fully recover the R-134a from the system.
• Do not loosen A/C fittings until empty.

Step 2: Disconnect the battery

• Use a 10mm socket to disconnect the negative battery terminal and move it aside so it can’t spring back.

Step 3: Remove any covers blocking access

• If equipped, remove the air intake snorkel/engine cover pieces that block access using a trim clip tool and 10mm socket.

Step 4: Remove the serpentine belt

• Use a serpentine belt tool (specialty) to rotate the belt tensioner and slide the belt off the A/C compressor pulley.
• Take a photo of the belt routing before removal.

Step 5: Disconnect the A/C compressor electrical connector

• Unplug the compressor clutch/control connector by hand; use a pick set (small hook pick) gently if the lock tab is stuck.

Step 6: Disconnect the A/C lines at the compressor

• Place shop towels under the fittings.
• Use an A/C line spring-lock/quick-disconnect tool set (specialty) to release the quick-connect fittings (this tool slides into the fitting to release the internal spring).
• Immediately cap/plug the open lines and compressor ports.
• Remove and discard the old O-rings using a pick set (small hook pick).

Step 7: Unbolt and remove the compressor

• Support the compressor with one hand.
• Use a 13mm socket and 3/8" drive ratchet to remove the compressor mounting bolts.
• Remove the compressor from the bracket and lift it out carefully.
• Torque to 34 Nm (25 ft-lbs) when reinstalling the compressor mounting bolts.

Step 8: Prepare the new compressor (oil handling)

• Drain and measure the oil from the old compressor into a clean container (this helps you match what came out).
• Add the same amount of fresh PAG 46 oil to the new compressor (unless the new unit’s instructions specify otherwise).
• Rotate the compressor hub by hand several turns to distribute oil before installation.

Step 9: Install the new compressor

• Position the compressor and start bolts by hand to avoid cross-threading.
• Use a 13mm socket to tighten mounting bolts evenly.
• Final tighten with a 3/8" drive torque wrench: Torque to 34 Nm (25 ft-lbs).

Step 10: Install new O-rings and reconnect A/C lines

• Lightly coat new O-rings with clean PAG 46 oil so they don’t tear during assembly.
• Install the correct-size O-ring on each line.
• Reconnect the lines until you feel/hear them fully seat.
• Do not reuse old O-rings.

Step 11: Reconnect compressor electrical connector

• Plug the connector back in until the lock clicks.

Step 12: Reinstall the serpentine belt

• Route the belt using your photo as reference.
• Use the serpentine belt tool (specialty) to rotate the tensioner and slip the belt back onto the A/C compressor pulley.
• Double-check the belt ribs are fully seated in every pulley groove.

Step 13: Evacuate the system (vacuum)

• Connect the manifold gauge set for R-134a (specialty) to the high and low service ports.
• Connect the vacuum pump (specialty) and pull vacuum.
• Hold vacuum for at least 30 minutes, then close valves and verify it holds (no rising pressure) for 10–15 minutes.
• If vacuum won’t hold, find the leak.

Step 14: Recharge with R-134a by weight

• Recharge using a refrigerant charging scale (specialty) to the exact amount listed on your Wrangler’s underhood A/C label.
• Use the manifold gauge set for R-134a (specialty) to monitor pressures during charging.

Step 15: Reconnect battery and run A/C performance check

• Reconnect the negative battery terminal using a 10mm socket.
• Start the engine and turn A/C on MAX with blower high.
• Confirm the compressor engages, vent air gets cold, and no abnormal noises are present.

---

✅ After Repair

• Inspect all A/C connections for oily residue (a common sign of a leak).
• Verify the belt runs straight and quiet with A/C on and off.
• If cooling is weak or pressures are abnormal, stop and re-check charge amount and for leaks.
• If the old compressor failed internally (metal debris), strongly consider replacing the condenser and receiver-drier and flushing lines to protect the new compressor.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,800 (parts + labor)

DIY Cost: $250-$750 (parts only)

You Save: $650-$1,050 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
