🔧 Outback - A/C Compressor Replacement

Replacing the A/C compressor on your Outback involves safely recovering the refrigerant, removing the drive belt, swapping the compressor and sealing O-rings, then evacuating and recharging the system. The most important parts are (1) refrigerant handling, (2) keeping dirt/moisture out of the A/C lines, and (3) adding the correct oil amount.

Difficulty Level: Advanced | Estimated Time: 2-4 hours (plus evacuate/recharge time)

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant is hazardous and illegal to vent—have the system professionally recovered.
• ⚠️ Do not open A/C lines until refrigerant is fully recovered (system at 0 psi).
• ⚠️ Keep ports capped—moisture ruins A/C components quickly.
• ⚠️ Work on a cool engine; keep hands clear of belts and pulleys.
• 🔋 Disconnect the negative battery cable before unplugging the compressor clutch connector.
• 🧤 Wear safety glasses and gloves—oil/refrigerant can injure eyes/skin.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive extension set
• Torque wrench (3/8" drive)
• Serpentine belt tool
• Line wrench set
• Pick tool set
• Trim clip tool
• Shop rags
• A/C manifold gauge set (specialty)
• Vacuum pump (specialty)
• Refrigerant recovery machine (specialty)
• Refrigerant scale (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor manifold O-ring set - Qty: 1
• A/C compressor oil (ND-OIL 8 equivalent) - Qty: 1
• R134a refrigerant - Qty: As required for recharge
• Serpentine drive belt - Qty: 1 (optional, if worn/cracked)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Have an A/C shop (or proper equipment) recover the refrigerant before you loosen any A/C fitting.
• Disconnect the negative battery cable using a 10mm socket.
• Plan to replace every O-ring you open; lightly oil new O-rings with the correct compressor oil before assembly.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant (required)

• Connect an A/C manifold gauge set (specialty) to the high/low service ports.
• Use a refrigerant recovery machine (specialty) to fully recover the R134a.
• Verify system pressure is at 0 psi on both gauges before continuing.

Step 2: Gain access to the front of the engine

• Lift the front of the vehicle with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove any lower splash shield/undertray fasteners using a trim clip tool and appropriate 10mm socket.

Step 3: Remove the drive belt

• Relieve belt tension using a serpentine belt tool.
• Slip the belt off the A/C compressor pulley and move it aside.
• Tip: Take a quick belt-routing photo first.

Step 4: Disconnect the compressor electrical connector

• Unplug the compressor clutch connector by hand; if needed, gently help the tab with a pick tool set.

Step 5: Disconnect the A/C lines at the compressor

• Place shop rags under the compressor to catch oil drips.
• Remove the suction/discharge manifold retaining bolt(s) using the correct 10mm socket or 12mm socket (varies by compressor/manifold style).
• Carefully pull the manifold straight off—do not pry on sealing surfaces.
• Immediately cap/cover the open lines and compressor ports with clean rags to keep moisture out.

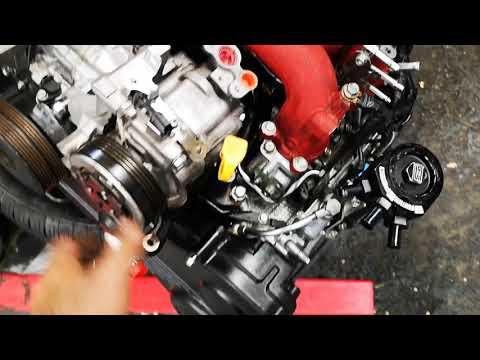

Step 6: Remove the compressor

• Support the compressor by hand.
• Remove the compressor mounting bolts using a 12mm socket or 14mm socket (varies by bracket/bolt location).
• Lift the compressor out from below/above depending on access.

Step 7: Prep the new compressor (oil balance)

• Drain the old compressor oil into a measuring container (if the old compressor still turns) and note the amount.
• Add the same amount of fresh A/C compressor oil (ND-OIL 8 equivalent) into the new compressor unless the new unit’s instructions specify otherwise.
• Rotate the compressor hub by hand a few turns to distribute oil evenly.
• Tip: Too much oil hurts cooling performance.

Step 8: Install new O-rings and reinstall the A/C manifold

• Remove old O-rings with a pick tool set (don’t scratch the metal groove).
• Lightly coat new O-rings with clean compressor oil and install them.
• Seat the line manifold squarely and install its retaining bolt(s) using a 10mm socket or 12mm socket.
• Torque: I need the exact Outback torque spec for the manifold bolt(s). Upload a photo/screenshot of the A/C compressor torque-spec page you’re using, and I’ll plug in the exact Nm/ft-lbs.

Step 9: Bolt in the new compressor

• Install compressor mounting bolts by hand first to avoid cross-threading.
• Tighten with a 12mm socket or 14mm socket, then final-tighten using a torque wrench (3/8" drive).
• Torque: I need the exact Outback torque spec for the compressor mounting bolts. Upload the torque page you have, and I’ll provide the exact values.

Step 10: Reinstall belt, undertray, and reconnect battery

• Route and install the belt using a serpentine belt tool.
• Reinstall the undertray using a trim clip tool and 10mm socket.
• Reconnect the negative battery terminal using a 10mm socket.

Step 11: Evacuate and recharge

• Connect the A/C manifold gauge set (specialty) and pull vacuum with a vacuum pump (specialty) to remove air/moisture.
• Verify the system holds vacuum (no leak-down).
• Recharge by weight using a refrigerant scale (specialty) with R134a refrigerant.
• Charge amount: I can give the exact factory charge spec once you tell me what’s printed on your under-hood A/C label (just type the oz/g shown).

---

✅ After Repair

• Start the engine and turn A/C on MAX; confirm the compressor clutch engages and the center vents blow cold.
• Check for abnormal belt noise or squeal.
• With gauges connected, confirm pressures look stable and not excessively high.
• Inspect the compressor manifold area for oily residue that would indicate a leak.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor + evac/recharge)

DIY Cost: $300-$850 (parts only, assuming you have evac/recharge handled)

You Save: $600-$750 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
