🔧 A/C Compressor - Replacement

Replacing the A/C compressor on your F-150 is a mechanical job plus an A/C system service job. The compressor can’t be safely removed or installed correctly unless the refrigerant is recovered first and the system is vacuumed and recharged afterward.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant is hazardous and illegal to vent—have the system professionally recovered first.
• ⚠️ Keep hands/tools clear of the belt drive; work with the engine OFF and keys out.
• ⚠️ Wear eye protection; liquid refrigerant/oil can cause severe eye injury.
• Disconnecting the battery is recommended before unplugging compressor wiring.
• Never mix A/C oils; use the oil type specified on the under-hood A/C label.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 1/2" drive breaker bar
• Serpentine belt removal tool
• 3/8" drive ratchet
• 1/4" drive ratchet
• Socket set (8mm-15mm)
• Torque wrench (10-150 ft-lbs range)
• Trim clip removal tool
• Flat-blade screwdriver
• O-ring pick set
• Line/cap plug kit (A/C line plugs)
• Manifold gauge set (specialty)
• Vacuum pump (specialty)
• Refrigerant scale (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor manifold seal/O-ring set - Qty: 1
• A/C accumulator/receiver-drier - Qty: 1
• A/C orifice tube - Qty: 1
• A/C system oil (per under-hood A/C label spec) - Qty: 1
• R-134a refrigerant (for recharge) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Plan for refrigerant recovery first (shop or certified equipment). Do not loosen any A/C fittings until the system is empty.
• Two quick questions so I can give the correct exact procedure (and torque specs) for your setup:
  • Is the A/C system already professionally recovered (empty), or do you need a recover/recharge plan?
  • Are you replacing only the compressor, or the compressor + accumulator and orifice tube (recommended after a compressor failure)?

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover refrigerant (required)

• Have a shop recover the refrigerant, or use a manifold gauge set (specialty) with approved recovery equipment.
• Do not proceed until pressure is verified at zero on the gauges.

Step 2: Disconnect battery

• Use an 8mm-10mm socket to disconnect the negative battery terminal and isolate it.

Step 3: Raise and support the front (as needed for access)

• Use a floor jack (rated 3-ton minimum) to lift the front and set it on jack stands (rated 3-ton minimum).
• Use wheel chocks to prevent rolling.

Step 4: Remove splash shields/air deflectors (if equipped)

• Use a trim clip removal tool and socket set (8mm-10mm) to remove fasteners and lower the shield.

Step 5: Remove the serpentine belt from the A/C compressor

• Use a serpentine belt removal tool (or 1/2" drive breaker bar if applicable) to rotate the belt tensioner.
• Slip the belt off the A/C compressor pulley and slowly release tension.
• Take a quick belt-routing photo first.

Step 6: Unplug the compressor electrical connector

• Use a flat-blade screwdriver carefully to release the lock tab (if tight), then pull the connector straight off.

Step 7: Disconnect the A/C lines from the compressor

• Use the correct socket set (8mm-13mm) to remove the compressor manifold/block retaining bolt(s) (varies by build).
• Gently wiggle the manifold free; remove old seals with an O-ring pick set.
• Immediately cap/plug the open lines and compressor ports using an A/C line plugs kit to keep moisture out.

Step 8: Unbolt and remove the compressor

• Support the compressor by hand.
• Use a socket set (13mm-15mm) and 3/8" drive ratchet to remove the compressor mounting bolts.
• Remove the compressor from the engine bay from below or above, whichever has best clearance.

Step 9: Prepare the new compressor (oil balancing)

• Confirm the new compressor shipping oil amount per the compressor instructions.
• Drain and measure oil from the old compressor into a clean container, then add the correct amount/type of new oil to the new compressor (use the under-hood A/C label for oil type and total capacity).
• Rotate the compressor hub by hand a few turns to distribute oil.
• Moisture is the enemy—keep ports capped.

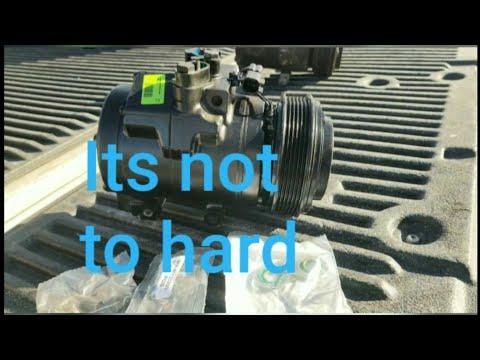

Step 10: Install the new compressor

• Position the compressor and hand-start all mounting bolts using a socket set (13mm-15mm).
• Tighten mounting bolts evenly using a torque wrench (10-150 ft-lbs range).
• Torque to the factory specification for your exact bolt size/location (I’ll provide the exact numbers after your two answers above).

Step 11: Install new A/C line seals and reconnect lines

• Install new O-rings/seals from the A/C compressor manifold seal/O-ring set.
• Lightly coat seals with clean A/C oil before assembly.
• Reconnect the manifold/lines and tighten the retaining bolt(s) using a socket set (8mm-13mm) and torque wrench (10-150 ft-lbs range).
• Torque to the factory specification (I’ll provide exact values after your two answers).

Step 12: Reinstall belt and shields

• Route the belt correctly and use the serpentine belt removal tool to apply tension and slip the belt back on.
• Reinstall shields using a trim clip removal tool and socket set (8mm-10mm).

Step 13: Evacuate and recharge the A/C system

• Use a manifold gauge set (specialty) and vacuum pump (specialty) to pull vacuum and check for leaks.
• Recharge by weight using a refrigerant scale (specialty) with the exact charge amount shown on the under-hood label.

---

✅ After Repair

• Reconnect the battery using an 8mm-10mm socket.
• Start the engine and set HVAC to MAX A/C; verify cold air and stable idle.
• Check for abnormal noises (grinding/squeal) and inspect A/C line connections for oily residue (leak clue).
• If the old compressor failed catastrophically (metal debris), plan to replace the condenser and thoroughly flush lines (a shop often handles this).

---

💰 DIY vs Shop Cost

Shop Cost: $1,200-$2,500 (parts + labor)

DIY Cost: $450-$1,200 (parts only)

You Save: $750-$1,300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
