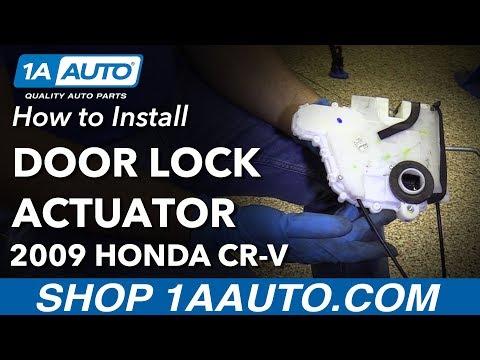

🔧 CR-V - Front Door Lock Actuator Replacement

On your CR-V, the “door lock actuator” is typically built into the door latch assembly inside the door. Replacing it means removing the interior door panel, peeling back the moisture barrier, disconnecting the lock/link rods and wiring, then swapping the latch/actuator unit.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (first time)

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable to prevent shorts and accidental power-lock movement while your fingers are inside the latch area.
• ⚠️ Wear gloves—inner door metal edges are sharp.
• ⚠️ Support the door panel as you unplug connectors so you don’t pull on wiring.
• ⚠️ Do not tear the plastic moisture barrier; it prevents water leaks and window fogging.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" 1/4" drive extension
• Phillips #2 screwdriver
• Flat trim tool
• Needle-nose pliers
• Pick tool
• Torx T30 bit socket
• Magnetic pickup tool
• Work light
• Painters tape
• Plastic razor blade
• Torque wrench (inch-pound)
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door latch/lock actuator assembly - Qty: 1
• Door panel retaining clips - Qty: 1 set
• Butyl tape (moisture barrier adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground and lower the window about halfway (gives better access inside the door).
• Turn the ignition OFF and keep the key away from the vehicle.
• Use a 10mm socket to disconnect the negative battery cable and isolate it so it can’t spring back.
• Put painters tape along the door edge and around the interior pull handle area to prevent scratches.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior door panel

• Use a flat trim tool to gently pry up the power window switch panel.
• Unplug the switch connector(s) by pressing the lock tab with a pick tool, then pulling the connector straight out.
• Use a Phillips #2 screwdriver to remove the screw(s) hidden behind the inner handle trim/cover (pop the cover with a trim tool first).
• Use a Phillips #2 screwdriver to remove the screw in the door pull/armrest pocket (location varies slightly).
• Use a flat trim tool to pop the door panel clips around the perimeter, then lift the panel straight up and off the window ledge.
• Tip: Pop clips close to each clip point.

Step 2: Disconnect the handle cable/rod and wiring

• Support the panel and disconnect any remaining electrical connectors (use a pick tool to press the lock tab).
• If equipped with a cable-style inside handle, unhook the cable end from the handle and release the cable housing from its bracket.
• Set the door panel somewhere clean and flat.

Step 3: Peel back the moisture barrier

• Use a plastic razor blade to carefully separate the moisture barrier from the butyl adhesive.
• Peel it back just enough to access the latch area at the rear of the door.
• If the adhesive is messy or won’t re-stick, plan to use new butyl tape during reassembly.

Step 4: Disconnect the latch/actuator electrical connector

• Locate the latch/actuator connector near the rear of the door (close to the door striker area).
• Press the lock tab with a pick tool and unplug the connector.

Step 5: Detach the lock and handle rods (link rods)

• Find the metal rods going to the latch (from the inside lock knob and from the exterior handle).
• Use needle-nose pliers to flip the small plastic retaining clips off the rod, then lift the rod out of the clip.
• Tip: Take a photo before unhooking rods.

Step 6: Remove the latch/actuator from the door

• At the rear edge of the door, use a Torx T30 bit socket with a ratchet to remove the 3 latch mounting screws.
• Reach through the service opening and guide the latch/actuator assembly out of the door.
• If it hangs up, reposition the rods and wiring so they don’t snag.
• Torque to 8.5 Nm (75 in-lbs) when reinstalling the latch screws.

Step 7: Transfer any brackets/clips (if needed) and install the new actuator/latch

• Compare the old and new latch assemblies side-by-side to confirm the connector and rod levers match.
• Transfer any foam pads or small brackets using a Phillips #2 screwdriver (only if the new part does not include them).
• Feed the new latch/actuator into position and align it to the door edge holes.
• Install the 3 Torx T30 screws by hand first, then tighten with a ratchet.
• Torque to 8.5 Nm (75 in-lbs).

Step 8: Reconnect rods and the electrical connector

• Reinstall each rod into its lever hole, then rotate the plastic retaining clip back over the rod until it locks.
• Plug in the latch/actuator connector until it clicks.

Step 9: Function-test before reassembling the door

• Reconnect the negative battery cable using a 10mm socket.
• Test power lock/unlock with the switch and key fob (if equipped).
• Test exterior handle operation and interior handle operation.
• If anything feels wrong, disconnect the battery again and re-check rod routing and clip seating.

Step 10: Reinstall the moisture barrier and door panel

• Press the moisture barrier firmly back into the butyl adhesive; add new butyl tape if needed.
• Hang the door panel on the upper window ledge first, then press the perimeter clips back in by hand.
• Reinstall the screws using a Phillips #2 screwdriver.
• Reconnect and snap the window switch panel back into place.

---

✅ After Repair

• Verify the door locks/unlocks smoothly from: key fob (if equipped), driver switch, and inside lock knob.
• Close the door and confirm it latches securely and opens from inside and outside.
• Check that the window switch works and the panel is fully seated (no rattles).

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor)

DIY Cost: $80-$220 (parts only)

You Save: $170-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
