🔧 Rogue - A/C Compressor Replacement

You’ll be removing the old A/C compressor from your Rogue, installing a new one with fresh seals, then having the system vacuumed and recharged. Because A/C systems are pressurized with refrigerant, you must have the refrigerant professionally recovered before loosening any A/C lines.

Difficulty Level: Advanced | Estimated Time: 3–5 hours (plus shop time for A/C service)

---

⚠️ Safety & Precautions

• ⚠️ Do NOT vent refrigerant to the atmosphere. Have an A/C shop recover the refrigerant with a proper machine before you start any work on A/C lines.
• ⚠️ Refrigerant can cause instant frostbite and eye damage. Always wear safety glasses and gloves when working near A/C lines and fittings.
• ⚠️ Support the vehicle with jack stands on solid, level ground. Never rely only on a floor jack while working under or beside the vehicle.
• ⚠️ Disconnect the negative battery cable before unplugging the compressor connector to avoid accidental shorts or the engine cranking.
• ⚠️ Let the engine cool fully before working in the engine bay to avoid burns from hot components.
• ⚠️ If the old compressor seized or sent metal shavings through the system, a full system flush and more parts (condenser, expansion valve) are often required. If you see lots of metal debris in lines, stop and consult a professional.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum, pair)
• 🛠️ Wheel chocks
• 🛠️ Metric socket set (8mm–19mm)
• 🛠️ 10mm socket
• 🛠️ 12mm socket
• 🛠️ 14mm socket
• 🛠️ 3/8" drive ratchet
• 🛠️ 3/8" drive torque wrench (10–80 Nm range)
• 🛠️ Serpentine belt tool or 3/8" breaker bar
• 🛠️ Short extension (3"–6")
• 🛠️ Flathead screwdriver (medium)
• 🛠️ Trim clip removal tool
• 🛠️ Needle-nose pliers
• 🛠️ Fender cover
• 🛠️ Clean drain pan or measuring container (for compressor oil)
• 🛠️ Shop rags
• 🛠️ Safety glasses
• 🛠️ Mechanic gloves or nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 A/C compressor assembly (with clutch) - Qty: 1
• 🔩 PAG A/C compressor oil (Nissan-spec viscosity) - Qty: As required per compressor spec
• 🔩 A/C line O-ring kit (for compressor connections) - Qty: 1 set
• 🔩 Serpentine drive belt - Qty: 1 (recommended if old or cracked)
• 🔩 Brake cleaner or A/C-safe cleaner - Qty: 1 can
• 🔩 R-134a refrigerant - Qty: As specified for Rogue system (shop usually supplies)
• 🔩 Anti-seize compound - Qty: small tube (optional for mounting bolts)
• 🔩 Dielectric grease - Qty: small tube (optional for electrical connector)

---

📋 Before You Begin

• Park the Rogue on a flat, level surface, engage the parking brake, and place wheel chocks behind the rear wheels.
• Visit an A/C shop and have them recover the refrigerant from the A/C system. Tell them you are replacing the compressor and will return for vacuum, leak test, and recharge.
• Open the hood and remove any loose items from the engine bay.
• Disconnect the negative battery terminal using a 10mm socket to avoid any electrical issues.
• Gather all tools and parts so you don’t have to stop mid-job.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Safely lift and support the vehicle

• Loosen the front right wheel lug nuts one turn with the 14mm socket and ratchet while the Rogue is still on the ground.
• Position the floor jack under the front jacking point or subframe and lift the front right side high enough to work in the wheel well.
• Place jack stands under the proper front support points and slowly lower the vehicle onto the stands.
• Remove the front right wheel completely using the 14mm socket and ratchet.
• Give the car a shake to confirm it’s stable.

Step 2: Remove splash shields for access

• Use a flathead screwdriver or trim clip removal tool to remove plastic clips holding the wheel-well splash shield near the lower front area.
• Use a 10mm socket and ratchet to remove any small bolts securing the splash shield.
• Pull the splash shield out to expose the lower front of the engine and the A/C compressor area.
• If needed, use the 10mm socket to remove part of the lower engine under-cover for more room.
• Tighten splash shield bolts on reassembly to 7 Nm (62 in-lbs).

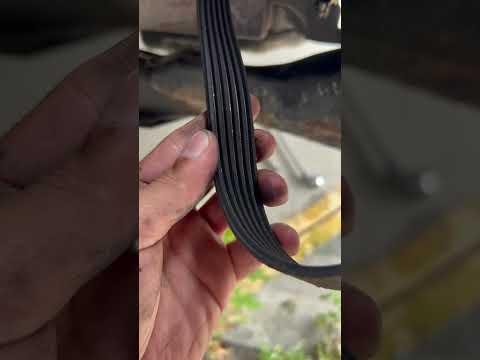

Step 3: Remove the serpentine belt from the compressor

• Locate the serpentine belt on the front of the engine. The mechanic’s belt diagram sticker under the hood can help you understand the belt routing.
• Locate the belt tensioner pulley (a spring-loaded pulley that keeps the belt tight).
• Insert the serpentine belt tool or 3/8" breaker bar into the tensioner square hole or bolt head and rotate it to relieve tension.
• While holding the tensioner, slip the belt off the A/C compressor pulley using your free hand.
• Gently release the tensioner. You can leave the belt on other pulleys if there’s enough slack, or fully remove it if replacing it.
• Take a photo of belt routing before removal.

Step 4: Disconnect the compressor electrical connector

• Locate the electrical connector on the A/C compressor body.
• Press the release tab with your fingers or a flathead screwdriver and pull the connector straight off.
• If there is any dirt in the connector, gently blow it out and wipe with a shop rag.
• You can apply a small amount of dielectric grease later during reassembly if desired.

Step 5: Disconnect A/C lines from the compressor (after recovery)

• Confirm the refrigerant has been professionally recovered—the system should not hiss or spray when opened.
• Place a shop rag under the compressor line connections to catch any leftover oil.
• Use a 12mm socket and ratchet with extension to remove the bolts holding the A/C suction and discharge lines to the compressor manifold.
• Carefully pull the lines away from the compressor. Slight twisting by hand may help break the seal on the old O-rings.
• Immediately plug or cover the open line ends with clean tape or caps to keep dirt and moisture out.
• Torque for A/C line bolts on reassembly: 10 Nm (89 in-lbs).

Step 6: Remove the compressor mounting bolts

• Support the compressor with one hand so it doesn’t drop when the bolts come out.
• Use a 14mm socket and ratchet to remove the compressor mounting bolts (usually 3–4 bolts) from the front of the engine block or bracket.
• Note the bolt lengths and positions so you can put them back in the same locations.
• Carefully lower the compressor out through the opening by the wheel well or underside. You may need to angle it slightly to clear the subframe.
• Torque for compressor mounting bolts on reassembly: 25 Nm (18 ft-lbs).

Step 7: Prepare the new compressor (oil and O-rings)

• Place the old compressor upright in a drain pan or measuring container.
• Slowly rotate the compressor clutch hub by hand and drain all the oil from the old compressor into the container. This tells you how much oil was inside.
• Check the new compressor instructions for the correct PAG oil type and total amount for your Rogue.
• Adjust the oil in the new compressor so it matches what came out of the old one (unless the instructions say otherwise). Add or remove oil as directed by the manufacturer.
• On the A/C lines, remove the old O-rings using needle-nose pliers, being careful not to scratch the metal.
• Install new O-rings from the A/C line O-ring kit and lightly coat them with fresh PAG oil for a good seal.
• Never reuse old O-rings on A/C lines.

Step 8: Install the new compressor

• Position the new compressor in place where the old one was, aligning the mounting holes.
• Apply a tiny amount of anti-seize compound to the bolt threads if desired (avoid the first few threads).
• Install all compressor mounting bolts by hand first to avoid cross-threading.
• Use the 14mm socket and ratchet to snug all bolts evenly.
• Then use the torque wrench with 14mm socket to tighten each mounting bolt to 25 Nm (18 ft-lbs).

Step 9: Reconnect A/C lines and electrical connector

• Carefully align the A/C suction and discharge lines with the compressor ports, making sure the new O-rings stay seated and undamaged.
• Install the line bolts by hand using the 12mm socket, then snug them evenly.
• Use the torque wrench with 12mm socket to tighten each line bolt to 10 Nm (89 in-lbs). Do not overtighten.
• Reconnect the compressor electrical connector until it clicks into place. Use your fingers or a flathead screwdriver gently if needed.
• If using, apply a small dab of dielectric grease inside the connector seals before plugging in.

Step 10: Reinstall the serpentine belt

• Route the serpentine belt over the pulleys according to your photo or the belt routing diagram, leaving the compressor pulley for last.
• Use the serpentine belt tool or 3/8" breaker bar to rotate the tensioner and create slack.
• Slip the belt over the A/C compressor pulley, then slowly release the tensioner.
• Visually inspect the belt in all pulley grooves to be sure it is seated correctly and not twisted.
• A misrouted belt can quickly damage the engine.

Step 11: Reinstall splash shields and wheel

• Reinstall the lower engine cover (if removed) using the 10mm socket. Tighten to 7 Nm (62 in-lbs).
• Reinstall the wheel-well splash shield with clips and bolts using the flathead screwdriver, trim clip tool, and 10mm socket. Tighten bolts to 7 Nm (62 in-lbs).
• Put the front right wheel back on and hand-tighten the lug nuts in a star pattern.
• Use the floor jack to lift the Rogue slightly, remove the jack stands, then lower to the ground.
• Torque the lug nuts in a star pattern with the torque wrench and 14mm socket to the factory spec (typically about 108 Nm / 80 ft-lbs for Nissan, verify if possible).

Step 12: Reconnect battery and prepare for A/C service

• Reconnect the negative battery terminal using the 10mm socket and tighten snugly (do not overtighten).
• Wipe any spilled oil from the compressor area with shop rags and a bit of brake cleaner.
• Double-check all connections: compressor bolts, line bolts, electrical connector, belt routing, and splash shields.
• It’s easier to fix mistakes now than later.

Step 13: Have the system evacuated, leak-checked, and recharged

• Drive the Rogue to an A/C shop. Explain that you have installed a new compressor and need the system:
• • Vacuumed down to remove air and moisture
  • Leak-tested
  • Recharged with the correct amount of R-134a refrigerant and oil adjustment if needed
• The shop will use a professional A/C service machine to do this. This is essential for proper cooling and compressor life.

---

✅ After Repair

• With the system fully recharged, start the engine and let it idle.
• Turn the A/C to MAX cold, fan on high, and recirculation on. Make sure the compressor clutch engages and stays on steadily after initial cycling.
• Check for cool air from the center vents; it should get cold within a few minutes.
• Inspect the compressor and line connections for any signs of oil or refrigerant leaks (oily residue or hissing).
• Listen for unusual noises such as grinding, squealing, or rattling from the compressor or belt.
• After a short test drive, recheck under the hood to confirm everything is still dry and quiet.

---

💰 DIY vs Shop Cost

Shop Cost: $900–$1,400 (parts + labor + A/C service)

DIY Cost: $350–$650 (compressor, O-rings, belt, plus A/C evac/recharge at shop)

You Save: $250–$800 by doing the mechanical work yourself!

Shop labor rates usually run $100–$150/hour. This repair takes a shop about 2–3 hours for R&R plus A/C service time.

---
