🔧 GX460 - Front Window Regulator Replacement

The front window regulator is the cable-and-track mechanism that moves the door glass up and down. When it fails, the window may move slowly, tilt, make grinding/clicking noises, or drop into the door. You’ll remove the door panel, secure the glass, swap the regulator, then test and reassemble.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours per front door

Assumption: replacing the regulator assembly (with motor or reusing motor).

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging door wiring to prevent shorts.
• ⚠️ Support the door glass securely with painter’s tape before removing the regulator.
• ⚠️ Wear cut-resistant gloves; the door’s inner sheet metal edges are sharp.
• ⚠️ Do not pull on wiring; release connector locks first.
• ⚠️ Keep fingers clear of the regulator scissor/cable paths when testing.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 1/4" drive ratchet
• 3/8" drive ratchet
• 3" socket extension
• Torque wrench (5–30 ft-lbs range)
• Phillips screwdriver #2
• Flat trim screwdriver
• Plastic trim removal tool set
• Panel clip pliers
• Pick tool
• Needle-nose pliers
• Painters tape (1.5" wide)
• Work light
• Cut-resistant gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator assembly (Left/Driver) - Qty: 1
• Front window regulator assembly (Right/Passenger) - Qty: 1
• Front window regulator motor - Qty: 1 (only if motor is faulty)
• Door trim panel clips - Qty: 1 set
• Vapor barrier butyl sealant strip - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and keep the key away from the vehicle.
• Lower the window to about halfway if possible (this usually lines up the glass clamp bolts in the access holes).
• Use a 10mm socket to disconnect the negative battery cable and isolate it so it can’t spring back.
• Have painter’s tape ready to hold the glass to the door frame.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the switch panel and hidden screws

• Use a plastic trim removal tool set to pry up the window switch panel from the armrest.
• Unplug the switch connectors by releasing the lock with a pick tool. Don’t yank the wires.
• Use a Phillips screwdriver #2 to remove any exposed screws under/near the switch panel.
• Pop off the small trim cover behind the interior door handle using a plastic trim removal tool set, then remove the screw with a Phillips screwdriver #2.

Step 2: Remove the door panel (trim panel)

• Use a plastic trim removal tool set to start releasing the door panel clips around the edges.
• If clips are stubborn, use panel clip pliers to pull them straight out (prevents breaking).
• Lift the door panel upward to unhook it from the top window ledge.
• Unplug any remaining connectors using a pick tool and set the panel aside on a soft surface.

Step 3: Remove the vapor barrier carefully

• Peel back the plastic water shield (vapor barrier) slowly by hand.
• If the sticky sealant fights you, use a plastic trim removal tool set to separate it without tearing.
• Keep the barrier clean; you’ll reinstall it to prevent water leaks and wind noise.

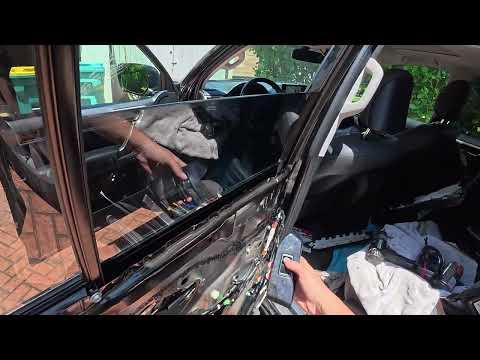

Step 4: Secure the window glass

• Locate the glass clamp bolts through the access holes in the door.
• If the window still moves, reconnect the window switch temporarily (do not reconnect battery yet) and position the clamps where you can reach them; then unplug the switch again.
• Use painters tape (1.5" wide) to tape the glass to the upper door frame in 2–3 long strips.
• Use extra tape; the glass is heavier than it looks.

Step 5: Unbolt the glass from the regulator

• Use a 10mm socket and 1/4" drive ratchet to loosen/remove the two glass clamp bolts/nuts (as equipped).
• Carefully slide the glass fully upward by hand, then add more painters tape (1.5" wide) to hold it at the top.
• Torque on reassembly: Torque to 8 Nm (71 in-lbs)

Step 6: Disconnect the regulator/motor wiring

• Unplug the regulator motor connector using a pick tool to release the lock tab.
• Free any harness clips from the door using needle-nose pliers or a plastic trim removal tool set.

Step 7: Remove the regulator assembly

• Use a 10mm socket with a 3" socket extension and 3/8" drive ratchet to remove the regulator track/slider bolts.
• Use a 10mm socket to remove the motor/regulator mounting bolts.
• Maneuver the regulator assembly out through the largest access opening in the door.
• Torque on reassembly: Torque to 10 Nm (89 in-lbs)

Step 8: Swap the motor (only if your new regulator doesn’t include it)

• On a workbench, use a 10mm socket to remove the motor bolts from the old regulator.
• Transfer the motor to the new regulator and snug the bolts evenly.
• Torque: Torque to 6 Nm (53 in-lbs)
• Keep hands clear of the gear teeth.

Step 9: Install the new regulator assembly

• Feed the new regulator into the door and align it with the mounting holes.
• Start all bolts by hand to avoid cross-threading.
• Tighten with a 10mm socket and torque wrench (5–30 ft-lbs range).
• Torque: Torque to 10 Nm (89 in-lbs)

Step 10: Reattach the glass to the regulator

• Remove some tape, lower the glass carefully until it sits in the regulator clamps.
• Install/tighten the clamp bolts using a 10mm socket.
• Torque: Torque to 8 Nm (71 in-lbs)
• Remove the remaining painter’s tape once the glass is clamped.

Step 11: Quick function test (before reassembly)

• Reconnect the negative battery cable using a 10mm socket.
• Plug in the window switch and run the window fully down and fully up while watching for binding/tilting.
• If it tilts or chatters, loosen the regulator bolts slightly with a 10mm socket, align, then retorque.
• Disconnect the negative battery cable again using a 10mm socket before reinstalling the vapor barrier/trim.

Step 12: Reinstall the vapor barrier and door panel

• Press the vapor barrier back into place; add vapor barrier butyl sealant strip if the original no longer sticks.
• Reconnect all door electrical connectors.
• Hang the door panel on the top edge first, then press the clips in around the perimeter with your hands.
• Reinstall screws using a Phillips screwdriver #2, then snap trim covers back on.
• Reinstall the switch panel and press it in until it clicks.

---

✅ After Repair

• Reconnect the negative battery cable using a 10mm socket.
• Test window operation from the driver switch and the affected door switch.
• If auto up/down doesn’t work, initialize it: hold the window switch to fully lower, keep holding 2 seconds; then fully raise and keep holding 2 seconds.
• Check for wind noise or water leaks after the next car wash/rain (vapor barrier must seal).

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 per front door (parts + labor)

DIY Cost: $120-$300 per front door (parts only)

You Save: $330-$600 per door by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours per door.

---
