🔧 F-150 - Front Door Lock Actuator Replacement

On your F-150, the “door lock actuator” is typically built into the door latch assembly. Replacing it means removing the interior door panel, peeling back the moisture barrier, then swapping the latch/actuator unit inside the door.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

---

⚠️ Safety & Precautions

• ⚠️ Keep fingers clear of the window regulator and lock linkage while the panel is off.
• ⚠️ If your door has a side airbag, disconnect the battery before unplugging door wiring.
• ⚠️ Support the door panel as you lift it off—wiring harnesses are still attached.
• ⚠️ Work with the window fully up to prevent accidental glass movement.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• 10mm socket
• 1/4" drive ratchet
• 3" extension (1/4" drive)
• Torx T27 bit
• Torx T30 bit
• Phillips screwdriver #2
• Small flathead screwdriver
• Trim removal tool (specialty)
• Pick tool (specialty)
• Magnetic pickup tool (specialty)
• Work light
• Painters tape (1")

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door latch/lock actuator assembly - Qty: 1
• Door panel retaining clips - Qty: 6-12 (as needed)
• Butyl sealant tape (moisture barrier) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and remove the key.
• Roll the window fully up.
• If equipped with a side airbag in the door: use a 10mm socket to disconnect the negative battery cable and wait 5 minutes.
• Put painters tape (1") along painted edges near the panel to prevent scratches.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior trim pieces

• Use a trim removal tool (specialty) to carefully pop off the small trim cover(s) near the interior door handle and/or pull handle.
• Use a small flathead screwdriver to lift any screw covers hiding fasteners.
• Go slow—plastic tabs break easily.

Step 2: Remove the door panel screws

• Remove screws in the pull handle/armrest area using a Phillips screwdriver #2 or 10mm socket (varies by panel).
• Remove any lower/edge screws using a Torx T27 bit or Torx T30 bit (varies by panel).
• Keep screws grouped by location so reassembly is easier.

Step 3: Release the door panel clips and lift the panel off

• Slide the trim removal tool (specialty) under the panel edge and pop the retaining clips free around the perimeter.
• Lift the whole panel straight upward to unhook it from the window ledge.
• Support the panel with your knee or a box so it doesn’t hang by the wiring.

Step 4: Disconnect switches, handle cable, and speaker (as needed)

• Unplug the window/lock switch connectors by pressing the tabs using a pick tool (specialty) (a pick is a small pointed tool used to release stubborn connector locks).
• If your inside handle uses a cable: unclip the cable housing and lift the cable end out using a small flathead screwdriver.
• If needed, unplug the speaker connector by hand.

Step 5: Peel back the moisture barrier

• Carefully peel the plastic moisture barrier back far enough to access the latch area (rear edge of the door).
• If the butyl adhesive stretches, use a small flathead screwdriver to help separate it without tearing the plastic.
• Don’t throw it away—it must seal again.

Step 6: Disconnect the latch electrical connector

• Locate the latch/actuator electrical connector near the rear of the door.
• Press the connector lock and unplug it using a pick tool (specialty) if needed.

Step 7: Disconnect the lock/handle linkages from the latch

• Inside the door, locate the metal rods and/or cables going to the latch.
• Open the plastic retaining clips and swing the rod out using a pick tool (specialty) or small flathead screwdriver.
• Note the routing before removal so nothing binds on reassembly.

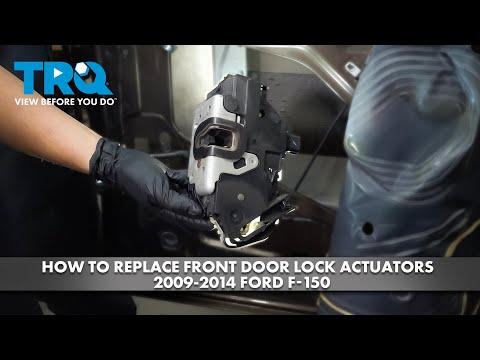

Step 8: Remove the latch/actuator assembly

• At the rear edge of the door (where it latches to the body), remove the latch mounting screws using a Torx T27 bit or Torx T30 bit with a 1/4" drive ratchet and 3" extension (1/4" drive).
• Carefully work the latch assembly out through the access opening.
• Use a magnetic pickup tool (specialty) if a screw drops into the door.

Step 9: Install the new latch/actuator assembly

• Transfer any clips/brackets from the old unit to the new one as needed (use a small flathead screwdriver).
• Position the new latch into place and start the Torx screws by hand to avoid cross-threading.
• Tighten the latch screws using a Torx T27 bit or Torx T30 bit and 1/4" drive ratchet: Torque to 10 Nm (89 in-lbs).

Step 10: Reconnect linkages and the electrical connector

• Reconnect each rod/cable to its original position and snap the retaining clips fully closed.
• Plug the latch electrical connector back in until it clicks.
• If a clip won’t close, the rod isn’t seated.

Step 11: Quick function test before closing the door

• If you disconnected the battery, reconnect it using a 10mm socket.
• With the door still open, use the power lock switch to lock/unlock and verify the latch responds.
• Pull the interior handle and confirm it releases properly (don’t slam the door yet).

Step 12: Reseal the moisture barrier

• Press the moisture barrier back into the butyl seal.
• If it no longer sticks well, apply butyl sealant tape and press firmly by hand.

Step 13: Reinstall the door panel

• Reconnect the switch and speaker connectors by hand.
• Hook the top of the panel onto the window ledge, then press around the perimeter to engage the clips.
• Reinstall screws using a Phillips screwdriver #2, 10mm socket, and/or Torx T27 bit/Torx T30 bit as removed.
• Snug the screws: Torque to 3 Nm (27 in-lbs) (do not over-tighten into plastic).
• Reinstall trim covers using a trim removal tool (specialty).

---

✅ After Repair

• Test: power lock/unlock from the switch and key fob, and verify the door locks reliably every time.
• Test: inside handle, outside handle, and (if equipped) the child safety lock function.
• Confirm the moisture barrier is fully sealed to prevent water leaks and speaker issues.

---

💰 DIY vs Shop Cost

Shop Cost: $300-$650 (parts + labor)

DIY Cost: $80-$250 (parts only)

You Save: $220-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
