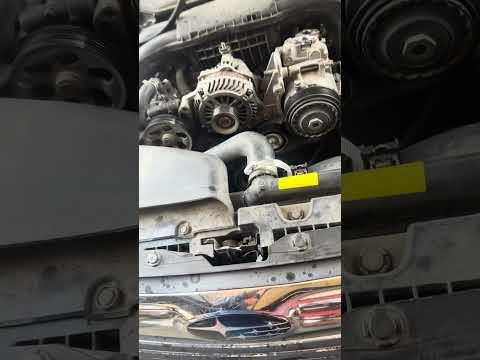

🔧 Outback - A/C Compressor Replacement

Replacing the A/C compressor on your Outback means removing the drive belt, disconnecting the refrigerant lines, swapping the compressor, then evacuating and recharging the A/C system. The “must-do” part is handling refrigerant correctly and pulling a deep vacuum before recharging, or the new compressor can fail quickly.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Assumption: R-134a system with factory-style compressor.

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant is regulated—recover it with proper equipment; do not vent to air.
• ⚠️ Wear eye protection and gloves; liquid refrigerant can cause frostbite.
• ⚠️ Work on a cool engine; keep hands clear of radiator fans (they can turn on unexpectedly).
• ⚠️ Keep all A/C openings capped; moisture/dirt can ruin the new compressor.
• ⚠️ Disconnect the negative battery cable before unplugging the compressor connector.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Metric socket set (8mm-14mm)
• 3/8" ratchet

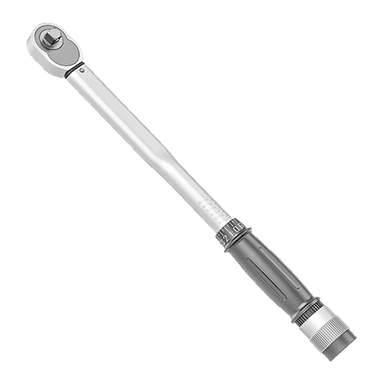

• 3/8" torque wrench
• Serpentine belt tool (long-handle) (specialty)
• Trim clip remover
• Flat-blade screwdriver
• Line wrenches (flare nut) set (10mm-17mm)
• Pick set
• A/C manifold gauge set for R-134a
• Vacuum pump (specialty)
• Refrigerant recovery machine (specialty)
• Refrigerant scale (specialty)
• Shop rags
• Fender cover

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor (new or remanufactured) - Qty: 1
• A/C compressor clutch coil connector seal (if equipped) - Qty: 1
• A/C line O-ring set (HNBR green) - Qty: 1 set
• PAG A/C oil (ND-OIL 8 or equivalent for R-134a) - Qty: 1 bottle
• R-134a refrigerant - Qty: As required by under-hood label
• Serpentine/drive belt (recommended if worn/cracked) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and open the hood.
• Recover the refrigerant using a refrigerant recovery machine (this pulls refrigerant into a tank). Many DIYers have a shop do this step.
• Disconnect the negative battery cable using a 10mm socket.
• Identify the exact refrigerant charge amount on the under-hood A/C label (you will recharge by weight, not by pressure).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant (required)

• Connect the A/C manifold gauge set for R-134a to the high and low service ports.
• Use the refrigerant recovery machine (specialty) to recover the refrigerant completely.
• Once pressures are at/near zero, disconnect the recovery equipment.

Step 2: Remove any intake ducting for access (if needed)

• Remove clips with a trim clip remover.
• Loosen hose clamps with a flat-blade screwdriver.
• Move the ducting out of the way so you can reach the compressor and belt.

Step 3: Remove the drive belt

• Use a serpentine belt tool (long-handle) to rotate the belt tensioner and relieve tension.
• Slip the belt off the A/C compressor pulley and remove the belt from the front of the engine.
• Tip: Take a quick photo of belt routing.

Step 4: Unplug the compressor electrical connector

• Press the lock tab and unplug it by hand (use a pick set gently if the tab is stubborn).
• Tuck the connector aside so it can’t snag during removal.

Step 5: Disconnect the A/C refrigerant lines from the compressor

• Place shop rags under the compressor to catch any oil residue.
• Use line wrenches (flare nut) set to loosen the line fasteners (line wrenches reduce rounding).
• Pull the lines straight off and immediately cap/cover the open ends with a clean rag.
• Remove old O-rings with a pick set (do not scratch the metal sealing surfaces).

Step 6: Remove the A/C compressor

• Support the compressor with one hand.
• Remove the compressor mounting bolts using a metric socket set (12mm-14mm) and 3/8" ratchet.
• Lift the compressor out carefully (it’s heavier than it looks).
• Reinstall bolts on the new compressor to Subaru factory specification using a 3/8" torque wrench.

Step 7: Prepare the new compressor (oil balance)

• Check the new compressor instructions for oil type/amount.
• If instructed, drain shipping oil into a measuring container and adjust using PAG A/C oil (ND-OIL 8 or equivalent).
• Rotate the compressor hub by hand a few turns to distribute oil (do not use power tools).
• Tip: Too much oil can reduce cooling.

Step 8: Install new O-rings and reconnect A/C lines

• Install new O-rings from the A/C line O-ring set (HNBR green).
• Lightly coat each O-ring with clean PAG A/C oil (this prevents tearing).
• Reconnect the lines, threading fasteners by hand first to avoid cross-threading.
• Tighten line fasteners to Subaru factory specification using line wrenches (flare nut) set and verify the lines sit flush.

Step 9: Reconnect electrical and reinstall the belt

• Plug in the compressor connector until it clicks.
• Route the belt correctly and use the serpentine belt tool (long-handle) to set tension.
• Double-check the belt is fully seated in every pulley groove.

Step 10: Evacuate the system (vacuum)

• Connect the A/C manifold gauge set for R-134a again.
• Connect the center hose to the vacuum pump (specialty).
• Pull vacuum and hold it long enough to remove moisture; verify the system holds vacuum (a rise indicates a leak).

Step 11: Recharge by weight (not by pressure)

• Place the refrigerant source on a refrigerant scale (specialty).
• Add exactly the amount listed on the under-hood label.
• Close valves, disconnect the gauges, and reinstall service port caps by hand (caps help seal).

Step 12: Reconnect battery and reassemble

• Reconnect the negative battery cable using a 10mm socket.
• Reinstall any intake ducting using the trim clip remover and flat-blade screwdriver.

---

✅ After Repair

• Start the engine and set A/C to MAX cold with the blower on high.
• Confirm the compressor clutch engages and the air gets cold within a few minutes.
• Listen for belt squeal or rubbing noises; shut off and re-check belt alignment if heard.
• Check for leaks at the compressor line connections (oil residue is a common clue).

---

💰 DIY vs Shop Cost

Shop Cost: $1,000-$1,800 (parts + labor, includes evac/recharge)

DIY Cost: $350-$900 (parts only, assuming you have A/C equipment)

You Save: $300-$1,200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
