🔧 Outback - CVT Transmission Fluid Drain & Refill

On your Outback, the “transmission fluid” is Subaru Lineartronic CVT fluid. A proper service is a drain-and-refill, then setting the fluid level at a specific CVT fluid temperature using the overflow/check plug.

Difficulty Level: Advanced | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🛑 Work on a level surface; the CVT fluid level check is very sensitive to vehicle angle.
• 🔥 CVT fluid and exhaust parts can be hot; wear gloves and safety glasses.
• ⬆️ Use jack stands; never rely on a jack alone.
• ⚙️ Keep the engine running only when instructed; keep hands/clothes away from moving parts.
• 🔌 No battery disconnect is required for this procedure.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum) x4
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (10-quart minimum)
• Torque wrench (10–100 N·m range)
• Socket set (metric)
• Hex bit socket set (metric)
• Trim clip remover
• Funnel with hose
• Fluid transfer pump (specialty)
• OBD2 scan tool that reads CVT fluid temperature (specialty)
• Shop rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Subaru CVT fluid (Subaru CVTF-II equivalent) - Qty: 6 quarts
• CVT drain plug crush washer - Qty: 1
• CVT overflow/check plug gasket or sealing washer - Qty: 1

---

📋 Before You Begin

• 🚗 Park on level ground, set the parking brake, and chock the rear wheels.
• ⬆️ Lift the vehicle and support it on 4 jack stands so it sits level front-to-rear and side-to-side.
• 🧰 Have your OBD2 scan tool ready; you must monitor CVT fluid temperature to set the level correctly. (An OBD2 scan tool is a plug-in reader that shows live data from the car.)
• 🧼 Clean around the CVT plugs before opening them to prevent dirt from entering.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Warm the CVT fluid slightly

• Start the engine and let it idle 2–3 minutes.
• Plug in your OBD2 scan tool that reads CVT fluid temperature (specialty) and confirm the CVT fluid temp is rising.
• Shut the engine off.
• Warm fluid drains faster and more completely.

Step 2: Remove the underbody splash shield

• Use a trim clip remover to pop the plastic clips.
• Use your socket set (metric) to remove any bolts holding the shield.
• Set the shield and clips aside in a tray so you don’t lose them.

Step 3: Identify the correct plugs (important)

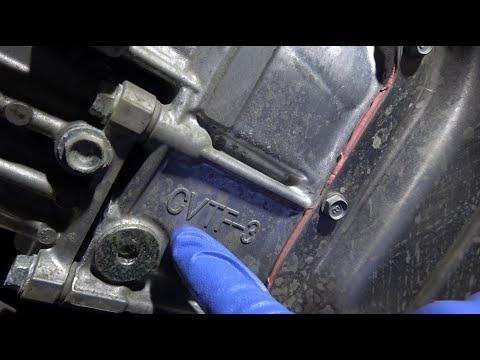

• Locate the CVT fill plug, drain plug, and the overflow/check plug.
• Use shop rags to wipe the area clean.
• Always loosen the fill plug first.

Step 4: Loosen the fill plug first

• Use the correct socket set (metric) or hex bit socket set (metric) (depends on plug style) to crack the fill plug loose.
• If it won’t loosen, stop and do not drain the CVT—you don’t want an empty transmission you can’t refill.

Step 5: Drain the CVT fluid

• Place the drain pan (10-quart minimum) under the CVT drain plug.
• Remove the drain plug using the correct socket set (metric) or hex bit socket set (metric).
• Let the fluid drain until it slows to a drip.
• Replace the drain plug crush washer with the new one.

Step 6: Reinstall and torque the drain plug

• Thread the drain plug in by hand first to avoid cross-threading.
• Tighten using a torque wrench (10–100 N·m range): Torque to 50 N·m (37 ft-lbs).

Step 7: Add new CVT fluid (initial fill)

• Remove the fill plug fully using your socket set (metric) or hex bit socket set (metric).
• Use a fluid transfer pump (specialty) (a hand pump that pushes fluid upward into the transmission) and pump in about 5 quarts of Subaru CVTF-II equivalent.
• Reinstall the fill plug finger-tight for now (you will open/close it as needed during level setting).

Step 8: Run through the gear positions to fill circuits

• Start the engine and keep it idling.
• Hold the brake pedal firmly.
• Move the shifter slowly through P-R-N-D, pausing ~3 seconds in each, then return to P.
• Keep monitoring CVT fluid temperature with the OBD2 scan tool that reads CVT fluid temperature (specialty).

Step 9: Set CVT fluid level at the correct temperature

• With the engine idling and the vehicle level, wait until CVT fluid temperature is 35–45°C (95–113°F).
• Place the drain pan (10-quart minimum) under the overflow/check plug area.
• Carefully remove the overflow/check plug using the correct hex bit socket set (metric).
• If fluid does not drip out:
  • Reinstall the overflow/check plug loosely.
  • Remove the fill plug using your socket set (metric) or hex bit socket set (metric).
  • Add fluid using the fluid transfer pump (specialty) in small amounts (about 0.25 quart at a time).
  • Recheck by removing the overflow/check plug again.
• If fluid streams out:
  • Let it drain until it becomes a steady drip.
  • That steady drip is the correct level at the specified temperature.

Step 10: Reinstall and torque the overflow/check plug and fill plug

• Install the new sealing washer/gasket on the overflow/check plug (if equipped).
• Tighten the overflow/check plug with a torque wrench (10–100 N·m range): Torque to 7.5 N·m (5.5 ft-lbs).
• Reinstall the fill plug and tighten with a torque wrench (10–100 N·m range): Torque to 50 N·m (37 ft-lbs).
• Wipe everything clean using shop rags so leaks are easy to spot.

Step 11: Reinstall the splash shield and lower the vehicle

• Reinstall the underbody shield using the socket set (metric) and clips with the trim clip remover.
• Lower the vehicle safely using the floor jack (rated 3-ton minimum).

---

✅ After Repair

• 🧪 Test drive 10–15 minutes with gentle acceleration; confirm no slipping or warning lights.
• 🧻 Park on a clean surface and check for drips under the CVT.
• 🔍 Re-scan for codes with your OBD2 scan tool that reads CVT fluid temperature (specialty) if any lights appear.
• 🧴 Dispose of used CVT fluid properly (most parts stores accept waste fluid).

---

💰 DIY vs Shop Cost

Shop Cost: ₹8,000-₹15,000 (parts + labor)

DIY Cost: ₹4,000-₹8,000 (parts only)

You Save: ₹4,000-₹7,000 by doing it yourself!

Shop labor rates vary but typically run ₹1,000-₹2,000/hour. This repair takes a shop approximately 2-4 hours.

---
