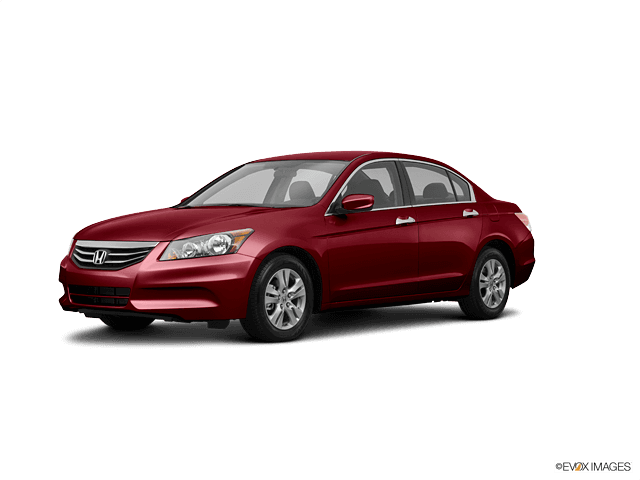

🔧 Accord - Outer Tie Rod End Replacement

The outer tie rod end connects your steering rack to the front wheel knuckle. Replacing it restores tight steering and eliminates play, but the wheel alignment (toe) can change, so you’ll want an alignment after.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (one side)

---

⚠️ Safety & Precautions

• 🛑 Support your Accord with jack stands before working under/around the suspension.
• 🧱 Chock the rear wheels and keep the car on level ground.
• 🔥 Avoid working near hot brakes/rotors if you just drove.
• 🔩 Do not reuse the old cotter pin; always install a new one.
• 🧭 Plan on a professional alignment after replacement to prevent tire wear.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 19mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (20-200 Nm range)
• 17mm socket
• 22mm open-end wrench
• Needle-nose pliers
• Hammer (16 oz)
• Tie rod end puller (specialty)
• Paint marker
• Measuring tape
• Penetrating oil
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• Cotter pin - Qty: 1

---

📋 Before You Begin

• Park on level ground, center the steering wheel, and turn the ignition OFF.
• Chock the rear wheels with wheel chocks.
• Crack the front wheel lug nuts loose slightly using a 19mm socket and breaker bar (do not remove yet).
• Measure and record a baseline toe reference: use a measuring tape to measure from the outer tie rod end to a fixed point on the inner tie rod, or count/record exposed threads. This helps you drive to the alignment shop.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and secure the front corner

• Lift the front corner with a floor jack (rated 2-ton minimum).
• Set the car onto jack stands (rated 2-ton minimum) and gently shake the car to confirm it’s stable.
• Remove the wheel using a 19mm socket.

Step 2: Mark the current position

• Spray the jam nut and threads with penetrating oil.
• Use a paint marker to mark the jam nut position against the tie rod threads.
• Use a measuring tape to re-check your recorded measurement (or count exposed threads).

Step 3: Remove the cotter pin from the tie rod end stud

• Straighten and pull the cotter pin using needle-nose pliers.
• If it breaks, remove all pieces before continuing.

Step 4: Remove the tie rod end castle nut

• Remove the nut from the knuckle using a 17mm socket.
• If the stud spins, apply light upward pressure on the tie rod end while loosening the nut.

Step 5: Separate the tie rod end from the steering knuckle

• Install and tighten the tie rod end puller (specialty) until the taper pops free.
• A tie rod end puller is a clamp-style tool that presses the stud out of the knuckle without damaging the boot.
• If needed, tap the side of the knuckle boss (where the stud goes through) with a hammer (16 oz) to help it release while the puller is tight.

Step 6: Loosen the jam nut

• Hold the outer tie rod end and loosen the jam nut using a 22mm open-end wrench.
• Do not move the jam nut more than needed—just break it free.

Step 7: Remove the old outer tie rod end

• Unscrew the tie rod end by hand, counting the turns as you remove it (example: “18 turns”).
• Write the number down. This keeps toe close enough to drive.

Step 8: Install the new outer tie rod end

• Screw the new tie rod end on the same number of turns you counted.
• Line up your paint marker mark (or your measurement) to match the old position as closely as possible.

Step 9: Attach the stud to the knuckle and torque the nut

• Insert the stud into the knuckle.
• Install the new castle nut and tighten with a 17mm socket, then final-tighten with a torque wrench.
• Torque to 49 Nm (36 ft-lbs), then tighten further only as needed to align the cotter pin hole with the castle nut slots.
• Install a new cotter pin using needle-nose pliers and bend the ends over securely.

Step 10: Tighten the jam nut

• Hold the tie rod end and tighten the jam nut with a 22mm open-end wrench.
• Torque to 55 Nm (41 ft-lbs)

Step 11: Reinstall the wheel

• Reinstall the wheel and hand-tighten lug nuts using a 19mm socket.
• Lower the car off the jack stands using the floor jack.
• Torque the lug nuts in a star pattern with a torque wrench.
• Torque to 108 Nm (80 ft-lbs)

---

✅ After Repair

• With the engine running, turn lock-to-lock slowly and confirm there’s no binding or popping noise.
• Road test at low speed first, then normal speed. Steering wheel may be slightly off-center until aligned.
• Get a 4-wheel alignment as soon as possible to prevent rapid tire wear.
• Recheck the castle nut/cotter pin and jam nut visually after the test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor + typical alignment add-on)

DIY Cost: $25-$90 (parts only)

You Save: $90-$260 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
