🔧 Tucson - Fuel Pump Replacement

On your Tucson, the fuel pump is part of an in-tank fuel pump module. Replacement usually involves lifting the rear seat to access the module from inside the cabin (if equipped with a service cover), relieving fuel pressure, disconnecting the fuel lines/electrical connector, and swapping the module and seal.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🔥 Work outside or in a well-ventilated area; fuel vapors are highly flammable.
• 🔥 No smoking, no sparks, no trouble lights with hot bulbs; use an LED work light.
• 🧤 Wear fuel-resistant gloves and safety glasses; fuel can irritate skin/eyes.
• 🔋 Disconnect the negative battery terminal after relieving fuel pressure.
• 🧯 Keep a Class B fire extinguisher nearby.
• 🧼 Clean around the pump opening before removal to keep dirt out of the tank.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Fuel-resistant nitrile gloves
• LED work light
• 10mm socket
• 12mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (Nm/ft-lb)
• Phillips screwdriver
• Plastic trim removal tool
• Small pick tool
• Fuel line quick-disconnect tool set (specialty)
• Brass drift/punch (specialty)
• Small hammer
• Shop towels
• Drain pan
• Permanent marker

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• In-tank fuel pump module assembly - Qty: 1
• Fuel pump module tank seal / O-ring - Qty: 1
• Fuel pump lock ring - Qty: 1 (optional, if damaged)

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Lower the fuel level if possible (under 1/2 tank is easier and cleaner).
• Find the fuel pump relay/fuse using the fuse box cover legend (engine bay junction box). You’ll use it to relieve fuel pressure.
• Quick question (1 of 2): Does your Tucson have a metal service cover under the rear seat cushion (usually on the passenger-side area)? If yes, you can replace the pump from inside the cabin. If not, the fuel tank must be lowered.
• Quick question (2 of 2): Are you replacing the entire fuel pump module (recommended), or just the pump motor inside the module?

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel system pressure

• Open the hood and remove the fuse/relay box cover.
• Use the legend on the cover to identify the fuel pump fuse or fuel pump relay.
• Remove it using your fingers or a fuse puller (often clipped inside the box).
• Start the engine and let it run until it stalls. Crank for 2–3 seconds once more to clear remaining pressure.
• Turn the key OFF and remove the key.

Step 2: Disconnect the battery

• Use a 10mm socket to disconnect the negative battery terminal and isolate it so it can’t spring back.

Step 3: Access the pump module (service-cover method)

• Fold the rear seat bottoms up if equipped; otherwise remove the rear seat cushion as needed.
• Use a plastic trim removal tool to lift clips without breaking them.
• Look for a metal access/service cover on the floor under the seat area.
• If present, remove the cover fasteners using a Phillips screwdriver or 10mm socket (fastener type varies).
• Peel back any butyl sealer carefully and set the cover aside.
• Tip: Bag bolts/clips so nothing gets lost.

Step 4: If there is NO service cover (tank-lowering method)

• Stop here and reply: “No service cover.” Lowering the tank is a different procedure with additional tools and safety steps, and I’ll guide you through it specifically for your Tucson.

Step 5: Clean and mark orientation

• Use shop towels to wipe loose dirt.
• Use a permanent marker to mark the module position relative to the tank (helps reinstall in the same orientation).

Step 6: Disconnect the electrical connector

• Press the connector lock tab and unplug the pump module connector by hand.
• If the lock is stubborn, use a small pick tool gently. Tip: Don’t break the tab.

Step 7: Disconnect the fuel lines

• Place a drain pan and shop towels to catch fuel drips.
• Release the quick-connect fitting(s) using the appropriate fuel line quick-disconnect tool set (specialty) if required.
• Cap/cover the open lines with clean towels to keep dirt out.

Step 8: Remove the lock ring

• The module is usually held by a lock ring (a large retaining ring that twists to lock/unlock).
• Use a brass drift/punch (specialty) and small hammer to tap the lock ring counterclockwise until it releases.
• Avoid steel punches here; brass reduces spark risk.

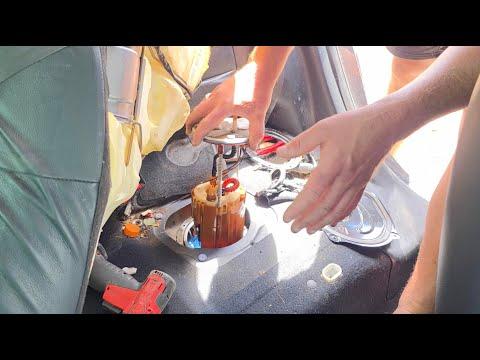

Step 9: Remove the pump module

• Lift the module straight up slowly, guiding the float arm (fuel level sender) out without bending it.
• Let fuel drain from the module into the tank for a moment, then move it to the drain pan.
• Remove the old tank seal / O-ring from the tank opening.

Step 10: Install the new seal and module

• Install the new fuel pump module tank seal / O-ring into the tank groove.
• Lower the new module into the tank in the same orientation as your marks.
• Reinstall the lock ring and tighten by tapping clockwise with the brass drift/punch (specialty) and small hammer until fully seated at its stops.

Step 11: Reconnect lines and wiring

• Reconnect the fuel line(s) until you hear/feel a solid “click.”
• Reconnect the electrical connector until it locks.

Step 12: Reinstall the service cover and seat

• Reinstall the service cover and fasteners using a Phillips screwdriver or 10mm socket.
• Torque to factory specification (fastener size/type varies by cover design).
• Reinstall the rear seat cushion and any clips/bolts using a 12mm socket if equipped.
• Torque to factory specification (seat fasteners vary by configuration).

---

✅ After Repair

• Reconnect the negative battery terminal using a 10mm socket.
• Reinstall the fuel pump fuse/relay.
• Prime the system: turn ignition ON for 5 seconds, OFF for 5 seconds, repeat 3 times (do not crank).
• Start the engine and check carefully for leaks at the fuel line connections and around the lock ring.
• If you smell strong fuel inside, shut it down and recheck the seal and lock ring seating.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor)

DIY Cost: $250-$700 (parts only)

You Save: $650-$900 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
