🔧 Outback - Fuel Pump Replacement

The fuel pump on your Outback sits inside the fuel tank as part of an in-tank fuel pump module. Replacing it usually involves lifting the rear seat, opening the service cover, disconnecting the fuel lines and wiring, and swapping the pump/module and seal so you restore proper fuel pressure and reliability.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: rear-seat service access panel fuel pump module (typical for your Outback).

---

⚠️ Safety & Precautions

• ⚠️ Work outside or in a very well-ventilated area (fuel vapors are flammable).
• ⚠️ No smoking, no flames, no hot work lights near the car.
• ⚠️ Disconnect the negative battery cable to prevent sparks.
• ⚠️ Relieve fuel pressure before disconnecting fuel lines to avoid a high-pressure spray.
• ⚠️ Keep a class B fire extinguisher nearby and clean spills immediately.
• ⚠️ Do not reuse the old pump seal/gasket—leaks and fuel smell can result.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Fire extinguisher (Class B)
• Trim removal tool set
• Phillips screwdriver
• Flathead screwdriver
• 10mm socket
• 3/8" ratchet
• 3" extension
• Torque wrench (in-lb capable)
• Pliers
• Pick tool
• Shop towels
• Drain pan
• Permanent marker
• Handheld vacuum

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump module seal/gasket - Qty: 1
• Replacement hose clamps - Qty: 2
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the fuel door and loosen the gas cap (this helps vent tank pressure).
• Relieve fuel pressure: remove the fuel pump fuse/relay, start the engine, and let it run until it stalls; crank 2-3 more seconds.
• Disconnect the battery: use a 10mm socket to remove the negative (-) cable and tuck it aside.
• Vacuum around the rear seat area first (dirt must not fall into the tank).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear seat bottom cushion

• Use a trim removal tool set to pop the front edge of the rear seat bottom upward (it’s held by clips).
• Lift the cushion out and set it aside.
• Tip: Pull up sharply near each clip.

Step 2: Open the fuel pump service cover

• Locate the service cover on the floor under the rear seat.
• Use a Phillips screwdriver (or 10mm socket if bolts are used) to remove the cover fasteners.
• Use a handheld vacuum to clean all dirt around the pump module top.

Step 3: Disconnect the electrical connector

• Press the lock tab and unplug the pump/module connector by hand.
• Apply a tiny amount of dielectric grease to the seal during reassembly (this helps prevent corrosion).

Step 4: Disconnect fuel lines (after pressure is relieved)

• Place a drain pan and shop towels under the lines.
• For quick-connect fittings: squeeze the connector tabs with your fingers or pliers and pull the line straight off.
• Use a pick tool only to help release the tab—do not gouge the plastic.
• Tip: Twist slightly, then pull straight.

Step 5: Mark orientation, then remove the pump/module fasteners

• Use a permanent marker to mark the module position relative to the tank (helps reinstall correctly).
• Use a 10mm socket, 3/8" ratchet, and 3" extension to remove the retaining nuts/bolts evenly in a crisscross pattern.

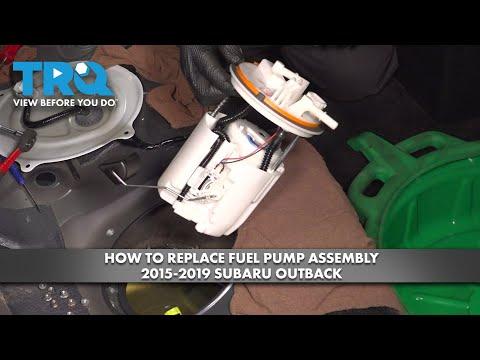

Step 6: Lift out the fuel pump/module

• Carefully lift the module straight up. Angle it as needed to clear the level float (the float is the small “arm” that reads fuel level).
• Keep the opening covered with a clean shop towel to prevent debris entry.
• Remove and discard the old fuel pump module seal/gasket.

Step 7: Install the new seal and pump/module

• Install the new fuel pump module seal/gasket onto the tank opening (make sure it sits flat, not twisted).
• Lower the new module in, aligning it to your marker line.
• Hand-start all retaining nuts/bolts to avoid cross-threading.

Step 8: Torque the module fasteners evenly

• Use a torque wrench (in-lb capable) and tighten in a crisscross pattern.
• Torque to 4.5 N·m (40 in-lb).
• Tip: Even torque prevents seal leaks.

Step 9: Reconnect fuel lines and electrical connector

• Push fuel lines on until they click/seat fully by hand.
• Install any new replacement hose clamps using pliers if your line style uses clamps.
• Plug in the electrical connector until it locks.

Step 10: Reinstall the service cover and rear seat

• Reinstall the service cover using a Phillips screwdriver or 10mm socket.
• Reinstall the rear seat cushion by lining up the clips and pushing down firmly until it snaps in.

Step 11: Reconnect battery and prime the fuel system

• Reconnect the negative battery cable using a 10mm socket.
• Prime: turn the key to ON (engine off) for 3 seconds, then OFF for 3 seconds; repeat 3-4 times (this lets the pump build pressure).
• Tighten the gas cap.

---

✅ After Repair

• Start the engine and let it idle for 2-3 minutes.
• Check carefully for leaks and fuel smell at the pump cover area and line connections.
• Take a short test drive, then re-check for any dampness or odor.
• If a check engine light appears, scan for codes (a loose connector or line can trigger EVAP/fuel pressure codes).

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,200 (parts + labor)

DIY Cost: $220-$650 (parts only)

You Save: $430-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
