🔧 Tucson - Fuel Pump Module Replacement

On your Tucson, the fuel pump is part of an in-tank “fuel pump module” (pump + level sensor + housing). Replacement is usually done through an access panel under the rear seat, so you don’t need to drop the fuel tank.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• 🧯 Fuel vapors are flammable—work outside or in a very well-ventilated area, no smoking, no heat guns, no shop lights that can spark.
• 🛑 Depressurize the fuel system before disconnecting lines to prevent fuel spray.
• 🔋 Disconnect the negative battery terminal to reduce spark risk.
• 😷 Avoid breathing fumes; wipe spills immediately and dispose of rags safely.
• 🧤 Wear gloves and safety glasses—fuel in eyes burns and can injure.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Fire extinguisher (Class B)
• 10mm socket
• 3/8" ratchet
• 6" extension
• Trim removal tool (plastic pry tool)
• Small flat-blade screwdriver
• Pick tool (small)
• Needle-nose pliers
• Brass punch (specialty)
• Small hammer
• Shop towels
• Catch pan (fuel-safe)
• Paint marker

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump module tank seal (O-ring/gasket) - Qty: 1
• Fuel-resistant cleaner - Qty: 1

---

📋 Before You Begin

• Park your Tucson on level ground and open the fuel door to relieve tank vapor pressure.
• Have a catch pan and towels ready before you touch fuel lines.
• Depressurize the fuel system: remove the fuel pump fuse in the under-hood fuse box (labeled F/PUMP), then start the engine and let it run until it stalls.
• Turn ignition OFF and disconnect the battery: use a 10mm socket to remove the negative (-) battery terminal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Depressurize and make the area safe

• Remove the under-hood fuel pump fuse using a small flat-blade screwdriver to lift the fuse-box cover and pull the fuse by hand.
• Start the engine, let it die, then crank 2–3 seconds more to finish bleeding pressure.
• Disconnect the negative battery cable using a 10mm socket and 3/8" ratchet.

Step 2: Access the fuel pump service cover

• Remove the rear seat bottom cushion: use a trim removal tool (plastic pry tool) to pop the front edge clips, then lift the cushion out.

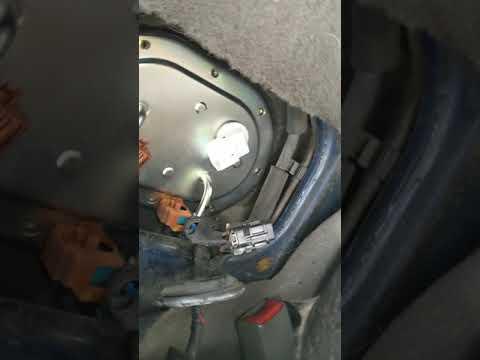

• Locate the round/oval service cover in the floor and remove it (typically held with sealant or small fasteners) using a trim removal tool and small flat-blade screwdriver.
• Clean the area around the module with fuel-resistant cleaner and shop towels so dirt can’t fall into the tank. Cleanliness here prevents future pump failure.

Step 3: Disconnect wiring and fuel lines

• Unplug the electrical connector by releasing the tab using a pick tool (small) if needed.
• Place shop towels around the fuel line connections.
• Disconnect the fuel quick-connect fittings by squeezing the release tabs (use needle-nose pliers gently only if your fingers can’t press the tabs).
• Have a catch pan (fuel-safe) ready for the small amount of fuel that will drip out.

Step 4: Remove the retaining ring

• Mark the module and tank alignment with a paint marker so you reinstall in the same orientation.
• Use a brass punch (specialty) and small hammer to tap the retaining ring counterclockwise until it unlocks.
• Brass reduces spark risk versus steel.

Step 5: Remove the fuel pump module

• Carefully lift the module straight up by hand; angle it as needed to clear the float arm (the float arm is the thin arm that reads fuel level).
• Let fuel drain from the module into the tank, then move it to the catch pan (fuel-safe).
• Remove the old tank seal (O-ring) by hand or with a trim removal tool. Do not scratch the sealing surface.

Step 6: Install the new seal and module

• Install the new fuel pump module tank seal (O-ring/gasket) into the tank groove by hand.
• Lower the new module into the tank, keeping the float arm from bending, and line up your paint marker marks.
• Reinstall the retaining ring and tap it clockwise using the brass punch and small hammer until it fully locks in place.

Step 7: Reconnect lines, connector, and close up

• Reconnect fuel lines until you feel/hear a click; then gently tug-check by hand to confirm they’re locked.
• Reconnect the electrical connector by pushing it on until it clicks.
• Reinstall the service cover using a trim removal tool (and any fasteners removed) and refit the rear seat cushion by pressing it down to re-engage the clips.
• Reconnect the negative battery terminal using a 10mm socket.
• Reinstall the fuel pump fuse in the under-hood fuse box by hand.

---

✅ After Repair

• Prime the system: turn ignition ON for 5 seconds, OFF for 5 seconds, repeat 3–4 times (do not crank during priming).
• Start the engine and let it idle while you check for leaks at the top of the module and the quick-connect fittings.
• If you have a check engine light after the repair, scan for codes—loose connectors or an unlocked line fitting are common causes.
• Confirm the fuel gauge reads normally on the dash after a short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,200 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $400-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
