🔧 Tucson - Rear Window Regulator Replacement

The rear window regulator is the cable-and-track mechanism that raises and lowers the rear door glass. When it fails, the window may move crooked, fall into the door, make grinding/clicking noises, or stop moving completely.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the 12V battery negative terminal before unplugging door wiring.
• ⚠️ Support the glass with tape so it can’t drop and shatter.
• ⚠️ Work slowly around the vapor barrier (plastic sheet); tearing it can cause water leaks.
• ⚠️ Don’t pull on wiring; press connector locks before unplugging.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim removal tool (plastic)
• Panel clip pliers
• Phillips #2 screwdriver
• Flat-blade screwdriver (small)
• 10mm socket
• 1/4" drive ratchet
• 6" extension for ratchet
• Torque wrench (in-lb)
• Needle-nose pliers
• Painter’s tape (2")
• Pick tool (small)
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear window regulator - Qty: 1
• Rear window regulator motor - Qty: 1 (only if not included with regulator)
• Door trim panel clips - Qty: 6-12 (replace any that break)
• Vapor barrier butyl tape - Qty: 1

---

📋 Before You Begin

• Park on level ground and turn the ignition OFF.
• Open the rear door fully and lower the window if it still moves.
• Disconnect the battery negative cable using a 10mm socket.
• Keep screws/clips in a labeled cup.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear door switch panel

• Use a trim removal tool (plastic) to carefully pry up the window switch panel from the armrest.
• Unplug the switch connector by pressing the lock tab with a pick tool (small) (a lock tab is a small catch that must be pressed to release the plug).

Step 2: Remove screws hidden in the door pull/handle area

• Pop off any small covers using a flat-blade screwdriver (small).
• Remove the door panel screws using a Phillips #2 screwdriver.

Step 3: Remove the rear door trim panel

• Start at the bottom edge and use a trim removal tool (plastic) to pop the panel clips loose.
• If clips are stubborn, use panel clip pliers to pull them straight out without cracking the panel.
• Lift the door panel straight up to unhook it from the window ledge.
• Unplug any remaining connectors using a pick tool (small) as needed.

Step 4: Peel back the vapor barrier (plastic sheet)

• Use your hands and a trim removal tool (plastic) to slowly peel the barrier back.
• If the butyl adhesive strings, cut it cleanly with a pick tool (small) and save the barrier to reinstall.

Step 5: Secure the glass so it can’t drop

• If the window still works: reconnect the switch temporarily, reconnect battery briefly, and move the glass until the glass-to-regulator fasteners are accessible through the service holes; then disconnect battery again using a 10mm socket.
• Hold the glass fully up and apply several long strips of painter’s tape (2") from the outside of the glass over the door frame to support it.
• If the window is already dropped: lift the glass by hand and tape it in the fully-up position.

Step 6: Disconnect the glass from the regulator

• Through the access holes, remove the glass clamp/fasteners using a 10mm socket and 1/4" drive ratchet.
• Torque to 8-10 N·m (71-89 in-lb) during reassembly.
• Once the glass is free, confirm it’s still held securely by the painter’s tape (2").

Step 7: Unplug the regulator motor

• Disconnect the motor electrical connector by pressing the lock tab with a pick tool (small).

Step 8: Remove the regulator/motor assembly

• Remove the regulator mounting bolts using a 10mm socket, 1/4" drive ratchet, and 6" extension for ratchet.
• Torque to 8-10 N·m (71-89 in-lb) during reassembly.
• Maneuver the regulator out through the large service opening. Use a work light to avoid snagging cables.

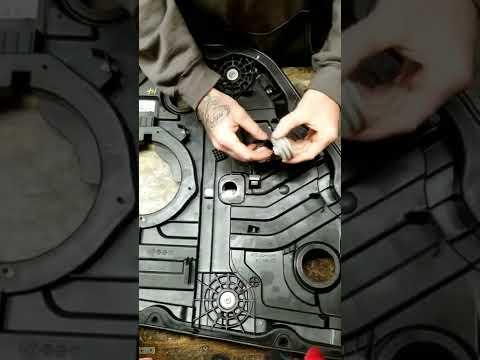

Step 9: Transfer the motor (only if your new regulator doesn’t include it)

• Remove the motor fasteners using a 10mm socket (or the same tool that fits your motor screws on the assembly).
• Install the motor onto the new regulator and tighten using a torque wrench (in-lb).
• Torque to 8-10 N·m (71-89 in-lb).
• Keep fingers clear of the cable drum.

Step 10: Install the new regulator

• Position the regulator in the door and start all bolts by hand to avoid cross-threading.
• Tighten the mounting bolts with a 10mm socket and finish with a torque wrench (in-lb).
• Torque to 8-10 N·m (71-89 in-lb).
• Plug in the motor connector until it clicks.

Step 11: Reattach the glass to the regulator

• Remove some of the painter’s tape (2") so the glass can drop slightly into the regulator clamps.
• Install the glass fasteners using a 10mm socket and 1/4" drive ratchet, then use a torque wrench (in-lb).
• Torque to 8-10 N·m (71-89 in-lb).

Step 12: Function test before closing the door up

• Reconnect the battery negative cable using a 10mm socket.
• Plug the switch back in and cycle the window up/down while watching the regulator through the access hole.
• If it binds or tilts, loosen the regulator bolts slightly with a 10mm socket, align, then re-torque with a torque wrench (in-lb).
• Torque to 8-10 N·m (71-89 in-lb).
• Disconnect the battery negative cable again using a 10mm socket before reassembly.

Step 13: Reinstall the vapor barrier

• Press the barrier back into the original position.
• Use vapor barrier butyl tape to reseal any areas that won’t stick.

Step 14: Reinstall the door panel

• Reconnect all electrical connectors (they should click in).
• Hang the panel on the top window ledge, then press the clips in around the edges using your hands.
• Reinstall screws using a Phillips #2 screwdriver.
• Snap trim covers back on by hand.

Step 15: Final power-up

• Reconnect the battery negative cable using a 10mm socket.
• Test the rear window switch and the driver’s master switch.

---

✅ After Repair

• Run the window fully down, then fully up 2-3 times to confirm smooth travel and proper sealing.
• Listen for cable clicking or popping; that usually means the glass isn’t seated squarely in the clamps.
• Check that the door panel is fully clipped in (no rattles) and that the vapor barrier is sealed (helps prevent water leaks).

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (₹29,000-₹54,000) (parts + labor)

DIY Cost: $90-$220 (₹7,500-₹18,500) (parts only)

You Save: $260-$430 (₹21,500-₹35,500) by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
