🔧 Accord - Front Door Lock Actuator Replacement

On your Accord, the “door lock actuator” is typically built into the door latch assembly inside the door. Replacement requires removing the interior door panel, peeling back the water shield, disconnecting linkage rods/cables, and swapping the latch/actuator unit.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• 🧤 Disconnect the battery negative cable before unplugging door wiring connectors.
• 🪟 Keep the window fully up (or support the glass) so nothing drops into the door.
• 🗡️ Door sheet metal edges are sharp; wear gloves and work slowly.
• 💧 Don’t tear the water shield; it prevents leaks and wind noise.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4" drive)
• Phillips screwdriver #2
• Phillips screwdriver #3
• Trim panel removal tool
• Small flat-blade screwdriver
• Needle-nose pliers
• Pick tool
• Flashlight
• Painters tape
• Razor blade or plastic scraper
• Butyl tape (automotive)
• Floor mat or fender cover
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door latch/lock actuator assembly (choose Left/Driver or Right/Passenger) - Qty: 1
• Door panel retaining clips (optional, as-needed) - Qty: 1 set
• Butyl tape (automotive) (for resealing water shield, as-needed) - Qty: 1

---

📋 Before You Begin

• Park on level ground, key out, and open the front door you’re working on.
• Use painters tape to protect the door edge/paint near the latch area.
• Lower the window slightly, then raise it fully (helps prevent accidental binding).
• Disconnect the battery using a 10mm socket (negative terminal first) and wait 3 minutes before unplugging connectors.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior door handle trim

• Use a trim panel removal tool to gently pry off the small trim piece around/behind the interior door handle.
• Use a Phillips screwdriver #2 to remove any exposed screw(s) behind that trim.
• Go slow—plastic tabs snap easily.

Step 2: Remove the armrest/door pull screws

• Look in the armrest/door pull pocket for a cover cap.
• Use a small flat-blade screwdriver to pop the cap, then remove the screw(s) using a Phillips screwdriver #2.

Step 3: Remove the window/lock switch panel

• Use a trim panel removal tool to pry up the switch panel from the armrest.
• Unplug the electrical connectors by pressing the tab and pulling straight out (use a pick tool only if needed).

Step 4: Release the door panel clips and lift the panel off

• Start at the bottom edge of the door panel.
• Use a trim panel removal tool to pop the push-clips free around the perimeter.
• Lift the whole panel upward to unhook it from the top window channel.
• Support the panel and unplug any remaining connectors (use a flashlight to see them).

Step 5: Disconnect the interior handle cable(s)

• At the back of the door panel, locate the interior handle cable (a cable with a ball-end).
• Use needle-nose pliers to rotate the cable housing out of its bracket, then lift the ball-end out of the lever.
• Take a photo before removal.

Step 6: Peel back the water shield

• Use a razor blade or plastic scraper to gently separate the butyl adhesive.
• Peel the water shield back only as far as needed to reach the latch area.
• If the adhesive won’t stick later, you’ll use butyl tape (automotive) during reassembly.

Step 7: Disconnect the latch/actuator electrical connector

• Locate the latch/actuator connector near the rear edge of the door.
• Press the locking tab and unplug it; use a pick tool carefully if the tab is stubborn.

Step 8: Disconnect the lock rod and outside handle rod (if equipped)

• Locate the metal rod(s) that clip into the latch (they use small colored plastic retainers).
• Use a small flat-blade screwdriver to flip the retainer open, then lift the rod out.
• Tip: The rod does not pull out until the clip is rotated open.

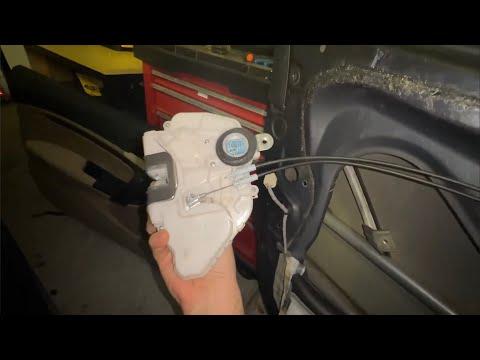

Step 9: Remove the latch/actuator assembly from the door

• At the rear edge of the door (where the latch meets the body), remove the latch mounting screws using a Phillips screwdriver #3.
• From inside the door, maneuver the latch/actuator assembly out through the access opening.
• Keep track of rod routing so it goes back the same way.

Step 10: Install the new latch/actuator assembly

• Place the new latch/actuator assembly into the door the same way the old one came out.
• Start the latch screws by hand, then tighten using a Phillips screwdriver #3.
• Reconnect the rod(s) and close each plastic retainer clip fully (use needle-nose pliers if your fingers can’t reach).
• Reconnect the electrical connector until it clicks.

Step 11: Reseal the water shield

• Press the water shield back into the butyl adhesive.
• If needed, add butyl tape (automotive) to any area that won’t stick.
• A poor seal can cause wet carpet.

Step 12: Reinstall the door panel

• Reconnect the interior handle cable(s) on the door panel (use needle-nose pliers if needed).
• Plug in all door electrical connectors.
• Hang the panel on the top lip by the window, then press the clips in around the perimeter.
• Reinstall screws using a Phillips screwdriver #2, then snap trim pieces back on.
• Reinstall the switch panel and press it down until fully seated.

---

✅ After Repair

• Reconnect the battery negative terminal using a 10mm socket.
• Test before fully closing the door: lock/unlock with the switch and remote, and confirm the inside/outside handles open the door normally.
• Close the door and confirm the latch holds properly and the door locks/unlocks consistently.
• If the door won’t open from inside or outside, a rod clip is likely not fully seated—recheck Step 8.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$500 (parts + labor)

DIY Cost: $80-$220 (parts only)

You Save: $170-$280 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
