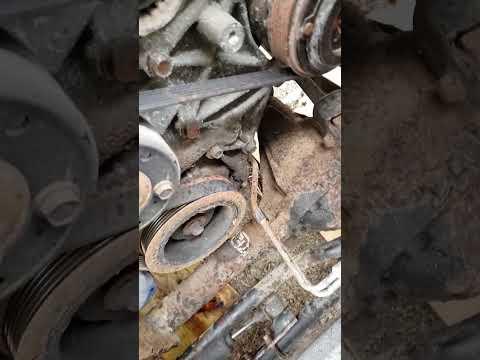

🔧 Wrangler - A/C Compressor Replacement

Replacing the A/C compressor on your Wrangler involves safely recovering the refrigerant, removing the belt and A/C lines, swapping the compressor (and seals), then pulling a deep vacuum and recharging with the correct amount of R-134a. The critical part is keeping dirt/moisture out of the system and charging it correctly so it cools and the new compressor survives.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• Refrigerant must be recovered with proper equipment—venting R-134a is unsafe and illegal.
• Wear eye protection and gloves; liquid refrigerant can cause frostbite instantly.
• Work on a cool engine; keep hands clear of the belt drive.
• Do not open A/C lines longer than necessary; moisture ruins A/C components.
• Disconnect the negative battery cable before working near the compressor wiring/clutch.
• If the old compressor failed “internally” (metal debris), more parts and flushing are required before installing the new one.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Metric socket set (8mm-18mm)
• 3/8" drive ratchet
• 3/8" drive extensions (3" and 6")
• Torque wrench (10-100 ft-lbs range)
• Serpentine belt tool (3/8" drive) (specialty)
• Trim clip remover
• Flathead screwdriver
• A/C manifold gauge set for R-134a (specialty)
• Vacuum pump (A/C) (specialty)
• Refrigerant recovery machine (specialty)
• Refrigerant scale (specialty)
• Line caps/plugs kit (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor (with clutch) - Qty: 1
• A/C compressor manifold O-ring seal kit - Qty: 1
• PAG A/C oil (PAG 46) - Qty: 1
• R-134a refrigerant - Qty: 20 oz
• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks.
• Plan refrigerant handling: arrange recovery/recharge equipment (or schedule a shop to recover and recharge).
• Disconnect the negative battery terminal using a 10mm socket. Torque to 7 Nm (62 in-lbs) on re-install.
• If the old compressor seized or grenaded (metal in oil), plan to replace the condenser/drier and flush lines before charging.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant

• Connect the A/C manifold gauge set for R-134a to the high and low service ports.
• Use the refrigerant recovery machine (specialty) to fully recover the system per the machine instructions.
• Once recovered, disconnect the machine but leave the manifold set available for later vacuum/charge.

Step 2: Gain access under the front

• Lift the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove any lower splash shield/air dam pieces as needed using a trim clip remover and metric sockets.

Step 3: Remove the serpentine belt

• Use a serpentine belt tool (3/8" drive) (specialty) to rotate the belt tensioner and slip the belt off the A/C compressor pulley.
• Snap a photo of belt routing.

Step 4: Unplug the compressor clutch connector

• Locate the compressor electrical connector and unplug it by hand; use a flathead screwdriver gently if the lock tab is stubborn.

Step 5: Remove the A/C line manifold from the compressor

• Place a rag under the connection area.
• Use the correct metric socket and 3/8" drive ratchet to remove the manifold retaining bolt at the compressor.
• Carefully pull the manifold straight off the compressor.
• Immediately cap/plug the open lines using a line caps/plugs kit (specialty).
• Discard the old O-rings; you will install new ones.
• On reassembly, install the manifold bolt and Torque to 28 Nm (21 ft-lbs).

Step 6: Remove the compressor mounting bolts and remove the compressor

• Support the compressor by hand.
• Use a metric socket, extensions, and a 3/8" drive ratchet to remove the compressor mounting bolts.
• Lower the compressor out carefully without stressing nearby hoses/wiring.
• On installation, tighten compressor mounting bolts evenly and Torque to 41 Nm (30 ft-lbs).

Step 7: Prepare the new compressor (oil balancing)

• Confirm the new compressor has the correct amount of oil for your Wrangler; follow the compressor manufacturer’s sheet.
• If you must add oil, measure and add using PAG A/C oil (PAG 46) (use only what the instructions specify).
• Rotate the compressor hub by hand a few turns to distribute oil (do not force it).

Step 8: Install the new compressor

• Position the compressor and start all mounting bolts by hand.
• Tighten bolts with a torque wrench to 41 Nm (30 ft-lbs).
• Reconnect the clutch electrical connector by hand until it clicks.

Step 9: Install new O-rings and reconnect the A/C manifold

• Install new O-rings from the A/C compressor manifold O-ring seal kit.
• Lightly coat O-rings with clean PAG A/C oil (PAG 46) so they don’t tear.
• Push the manifold straight into place (no twisting), then install the retaining bolt.
• Tighten with a torque wrench to 28 Nm (21 ft-lbs).

Step 10: Reinstall the serpentine belt

• Route the belt using your photo/reference and relieve tension using the serpentine belt tool (3/8" drive) (specialty).
• Confirm the belt ribs are centered on every pulley.

Step 11: Evacuate (vacuum) the A/C system

• Connect the A/C manifold gauge set for R-134a (specialty) and the vacuum pump (A/C) (specialty).
• Pull vacuum for at least 30 minutes, then close the manifold valves and verify it holds vacuum (leak check) for 10-15 minutes.
• If vacuum decays, stop and re-check O-rings/manifold seating before charging.

Step 12: Recharge with the correct amount of R-134a

• Charge by weight using a refrigerant scale (specialty) (not by pressure alone).
• Add R-134a refrigerant to the specified total: 20 oz.
• Use the manifold set procedures for charging (engine off for initial charge, then finish with A/C running as needed).

---

✅ After Repair

• Reconnect the negative battery cable using a 10mm socket and Torque to 7 Nm (62 in-lbs).
• Start the engine and set HVAC to MAX A/C, recirculation ON, blower high.
• Verify the compressor clutch engages and the low-side line gets cold.
• Check for leaks at the manifold connection (listen/inspect for oily residue).
• If cooling is weak or pressures look abnormal, stop—over/undercharge or debris can damage the new compressor.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor)

DIY Cost: $250-$700 (parts only)

You Save: $650-$900 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.5 hours.

---
