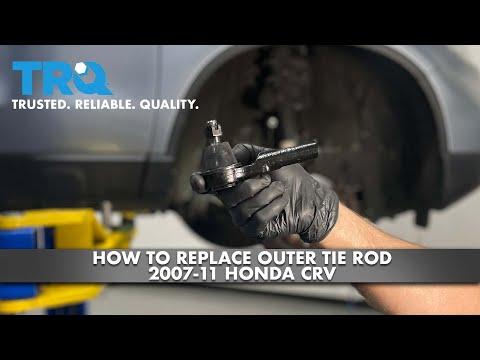

🔧 CR-V - Outer Tie Rod End Replacement

The outer tie rod end connects your steering rack to the front wheel knuckle. Replacing it restores tight steering and fixes looseness, clunks, or uneven tire wear when the joint is worn.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours (one side)

---

⚠️ Safety & Precautions

• 🛑 Support your CR-V with jack stands; never rely on a floor jack alone.
• 🛑 Work on level ground and use wheel chocks behind the rear wheels.
• 🛑 After replacement, your toe alignment can change—schedule a front-end alignment ASAP to prevent tire wear.
• 🛑 Use a new cotter pin; never reuse the old one.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Breaker bar (1/2")
• Torque wrench (10-150 ft-lbs range)
• 19mm socket
• 19mm wrench
• 17mm socket
• 17mm wrench
• Needle-nose pliers
• Hammer (16 oz)
• Tie rod end puller (specialty)
• Tape measure (metric or inch)
• Paint marker
• Penetrating oil
• Wire brush

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• Cotter pin (tie rod end) - Qty: 1
• Anti-seize compound - Qty: 1

---

📋 Before You Begin

• Park on level ground, steering wheel centered, and set the parking brake.
• Place wheel chocks behind both rear tires.
• Loosen the front wheel lug nuts about 1/2 turn with a 19mm socket and breaker bar before lifting.
• Spray penetrating oil on the tie rod end castle nut and the jam nut threads; let it soak 5-10 minutes.
• Tip: Take a quick photo for reference.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the wheel

• Lift the front corner with a floor jack (rated 3-ton minimum) at the proper jacking point.
• Set the vehicle onto jack stands (rated 3-ton minimum).
• Remove the lug nuts using a 19mm socket, then remove the wheel.

Step 2: Mark the current adjustment

• Locate the jam nut (the nut behind the outer tie rod end).
• Use a paint marker to mark a line across the jam nut and inner tie rod threads.
• Measure from the center of the outer tie rod stud to a fixed point on the inner tie rod using a tape measure; write it down.
• Tip: This helps keep alignment close.

Step 3: Loosen the jam nut

• Hold the outer tie rod end with a 17mm wrench if needed.
• Loosen the jam nut using a 19mm wrench (turn it counterclockwise), but do not spin it far yet.

Step 4: Remove the cotter pin

• Straighten and pull out the cotter pin using needle-nose pliers.
• If it’s rusty, spray more penetrating oil and work it out slowly.

Step 5: Remove the castle nut

• Remove the tie rod end castle nut using a 17mm socket and breaker bar.

Step 6: Separate the tie rod end from the steering knuckle

• Install a tie rod end puller (specialty) and tighten it until the taper pops free.
• If needed, tap the side of the knuckle (not the stud threads) with a hammer (16 oz) to help it release.
• Tip: Keep the stud threads protected.

Step 7: Remove the old outer tie rod end

• Spin the outer tie rod end off the inner tie rod while counting turns (example: “17 turns”).
• Use a paint marker to note the exact turn count.

Step 8: Install the new outer tie rod end

• Apply a light coat of anti-seize compound to the inner tie rod threads.
• Thread the new outer tie rod end on the same number of turns you counted.
• Line up the stud with the knuckle hole and push it into place.

Step 9: Torque the castle nut and install a new cotter pin

• Install the new castle nut and tighten using a 17mm socket.
• Torque to 49 N·m (36 ft-lbs).
• If the cotter pin hole doesn’t line up, tighten the nut slightly more until it aligns (do not loosen to align).
• Insert a new cotter pin and bend it over using needle-nose pliers.

Step 10: Tighten the jam nut

• Hold the outer tie rod end and tighten the jam nut using a 19mm wrench.
• Torque to 54 N·m (40 ft-lbs).

Step 11: Reinstall the wheel

• Reinstall the wheel and hand-thread the lug nuts.
• Lower the CR-V off the jack stands using the floor jack (rated 3-ton minimum).
• Tighten lug nuts in a star pattern with a torque wrench (10-150 ft-lbs range).
• Torque to 108 N·m (80 ft-lbs).

---

✅ After Repair

• Turn the steering wheel lock-to-lock while parked and listen for clunks or rubbing.
• Road test at low speed first; confirm the steering wheel is close to centered.
• Schedule a front-end alignment as soon as possible.
• Recheck the jam nut and lug nut torque after your first short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $200-$450 (parts + labor + typical alignment)

DIY Cost: $35-$120 (parts only)

You Save: $165-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
