🔧 Tucson - Fuel Pump Module Replacement

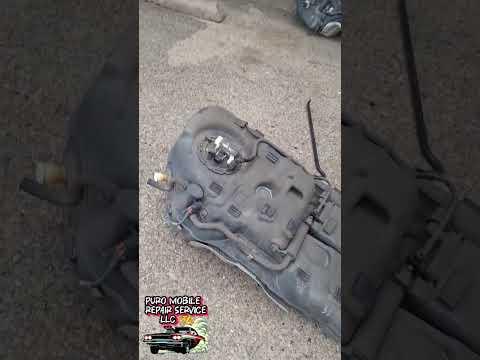

The fuel pump on your Tucson is part of an in-tank fuel pump module (pump + level sender + housing). Replacing it means safely relieving fuel pressure, accessing the tank opening (usually under the rear seat), swapping the module, then checking carefully for leaks.

Assumption: Your Tucson has an access panel under the rear seat (common on U.S. models), so the fuel tank does not need to be dropped.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Work outside or in a well-ventilated area; fuel fumes ignite easily.
• ⚠️ No smoking, flames, heaters, or grinding/sparks anywhere nearby.
• ⚠️ Disconnect the negative battery terminal before opening the tank.
• ⚠️ Relieve fuel pressure before disconnecting any fuel line.
• ⚠️ Keep a Class B fire extinguisher nearby.
• ⚠️ Clean dirt off the top of the tank before opening it (dirt in the tank can damage the new pump).

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 3/8" drive ratchet
• 3" extension (3/8" drive)
• Torque wrench (5–60 Nm range)
• Flat trim removal tool
• Phillips screwdriver #2
• Needle-nose pliers
• Fuel line quick-disconnect tool set
• Fuel pump lock ring tool (specialty)
• Brass punch
• Small hammer
• Shop vacuum
• Clean shop towels
• Catch pan
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump module tank seal/O-ring - Qty: 1
• Fuel line retaining clips (if damaged) - Qty: 1 set

---

📋 Before You Begin

• Park on level ground, set the parking brake, and open the fuel door to reduce tank vapor pressure.
• Use a shop vacuum to clean under/around the rear seat area before opening the access panel.
• Relieve fuel pressure: remove the fuel pump fuse/relay, start the engine, and let it run until it stalls; crank 2–3 more seconds.
• Disconnect the battery: use a 10mm socket to remove the negative (-) battery terminal and isolate it.
• Keep the tank under 1/2 if possible.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear seat cushion

• Use a flat trim removal tool to pop the front seat-cushion clips upward (work gently so you don’t crack the cushion frame).
• If your cushion is bolted: use a 12mm socket and ratchet to remove the bolts.
• Set the seat cushion aside.

Step 2: Remove the fuel pump access cover

• Find the round/oval metal access cover in the floor.
• Use a Phillips screwdriver #2 or 10mm socket (varies by cover) to remove fasteners.
• Use a flat trim removal tool to lift the cover.
• Use shop towels and a shop vacuum to clean all dirt around the pump module top.

Step 3: Disconnect the electrical connector(s)

• Press the lock tab and unplug the pump module connector by hand.
• Don’t pull on the wires.

Step 4: Disconnect the fuel line(s)

• Place a catch pan and shop towels under the connections.
• Use needle-nose pliers to remove any safety clip (if equipped).
• Use the fuel line quick-disconnect tool set to release the line(s), then pull the line straight off.
• Cap/cover the open line ends with clean towels to keep dirt out.

Step 5: Remove the fuel pump lock ring

• The lock ring is the big ring that clamps the module to the tank.
• Use a fuel pump lock ring tool (specialty) to turn the ring counterclockwise and remove it.
• If you don’t have the lock ring tool: use a brass punch and small hammer to tap the ring counterclockwise (brass helps reduce spark risk).
• Lift off the lock ring and set it aside.

Step 6: Remove the fuel pump module

• Carefully lift the module straight up; angle it as needed to clear the float arm (fuel level sensor).
• Let fuel drain off the module into the tank for a few seconds, then move it to the catch pan.
• Remove the old tank seal/O-ring from the tank opening.

Step 7: Install the new tank seal/O-ring

• Wipe the tank sealing surface with a clean shop towel.
• Install the new fuel pump module tank seal/O-ring into the tank groove (make sure it is flat, not twisted).

Step 8: Install the new fuel pump module

• Lower the new module into the tank carefully, guiding the float arm in without bending it.
• Align the module’s index marks/arrows with the tank marks (there is usually a molded pointer).
• Reinstall the lock ring.
• Use the fuel pump lock ring tool (specialty) to tighten the ring until the alignment marks fully seat/line up.

Step 9: Reconnect the fuel line(s) and wiring

• Push the fuel line(s) on until you feel/hear a solid click.
• Reinstall any safety clip using needle-nose pliers.
• Reconnect the electrical connector(s) until they click.

Step 10: Reinstall the access cover and rear seat cushion

• Reinstall the access cover fasteners using a Phillips screwdriver #2 or 10mm socket.
• Reinstall the rear seat cushion: push the cushion down firmly to engage the clips.
• If your cushion uses bolts: install with a 12mm socket and torque wrench, Torque to 35 Nm (26 ft-lbs).

Step 11: Restore power and prime the fuel system

• Reconnect the negative battery terminal using a 10mm socket.
• Reinstall the fuel pump fuse/relay.
• Key ON (engine OFF) for 5 seconds, then OFF for 5 seconds; repeat 3 times to prime.
• Start the engine and let it idle.

---

✅ After Repair

• With the engine idling, inspect the pump top and all fuel line connections for any wetness or fuel smell.
• Clear any fuel that spilled and recheck after a short drive.
• If the engine cranks but won’t start, cycle the key ON/OFF a few more times to finish priming.
• Stop immediately if you see any leak.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor)

DIY Cost: $350-$900 (parts only)

You Save: $550-$700 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
