🔧 Tucson - A/C Compressor Replacement

Replacing the A/C compressor on your Tucson is part mechanical removal/installation and part refrigerant-handling. The refrigerant must be properly recovered, then the system must be vacuumed and recharged to the exact under-hood label spec to avoid poor cooling or compressor damage.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant handling: It must be recovered with proper equipment; do not vent to air.
• ⚠️ Burn risk: Let the engine cool before working near the radiator and belt drive.
• ⚠️ Pinch hazard: Keep fingers clear of the belt and pulleys when releasing tension.
• ⚠️ Support safely: If lifting the front, use jack stands on solid points.
• ⚠️ Battery: Disconnect negative terminal before unplugging the compressor.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Trim clip removal tool
• Ratchet (3/8" drive)
• Ratchet (1/2" drive)
• Socket set (8mm-19mm)
• Wrench set (10mm-19mm)
• Torque wrench (5-60 Nm)
• Torque wrench (40-200 Nm)
• Serpentine belt tool or 17mm socket
• Line/flare-nut wrench set (10mm-17mm)
• O-ring pick set
• A/C manifold gauge set for R-1234yf (specialty)
• A/C vacuum pump (specialty)
• Refrigerant recovery machine for R-1234yf (specialty)
• Refrigerant scale (specialty)
• Electronic leak detector (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor clutch-free drive pulley (if not included) - Qty: 1
• A/C line O-ring set - Qty: 1
• PAG A/C oil (Hyundai-compatible) - Qty: 1
• R-1234yf refrigerant - Qty: As specified on under-hood label
• Serpentine drive belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• If the A/C system still has pressure, schedule refrigerant recovery before opening any A/C lines.
• Disconnect the negative battery cable using a 10mm socket.
• Take a photo of the belt routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant (required)

• Connect an A/C manifold gauge set for R-1234yf (specialty) to the high/low service ports.
• Use an A/C refrigerant recovery machine for R-1234yf (specialty) to fully recover the refrigerant.
• Manifold gauges show system pressure on two dials.

Step 2: Raise the front and remove the lower splash shield

• Lift the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove underbody/splash shield fasteners using a trim clip removal tool and 10mm socket.
• Reinstall later: Torque to 7-9 Nm (62-80 in-lbs).

Step 3: Remove the serpentine belt from the A/C compressor pulley

• Relieve belt tension using a serpentine belt tool or 17mm socket on the belt tensioner.
• Slip the belt off the A/C compressor pulley and slowly release the tensioner.
• If the belt is cracked/glazed, replace it now.

Step 4: Unplug the A/C compressor electrical connector

• Press the lock tab and disconnect the compressor connector by hand.
• If access is tight, use an 8mm socket to remove any small brackets blocking access.

Step 5: Remove the A/C refrigerant lines from the compressor

• Clean around the fittings to keep dirt out using a clean rag.
• Remove the line retaining bolt(s) using a 10mm socket.
• Carefully wiggle the suction/discharge manifold off the compressor.
• Cap/cover the open lines to keep moisture out.
• During reassembly: Torque the line retaining bolt(s) to 9.8 Nm (7.2 ft-lbs).
• Replace the O-rings using an O-ring pick set; lubricate new O-rings with a thin film of PAG A/C oil (Hyundai-compatible) before installation.

Step 6: Unbolt and remove the A/C compressor

• Support the compressor with one hand from below.
• Remove the compressor mounting bolts using a 14mm socket and ratchet (3/8" drive).
• Remove the compressor from the vehicle from below.
• During reassembly: Torque the compressor mounting bolts to 25 Nm (18 ft-lbs).

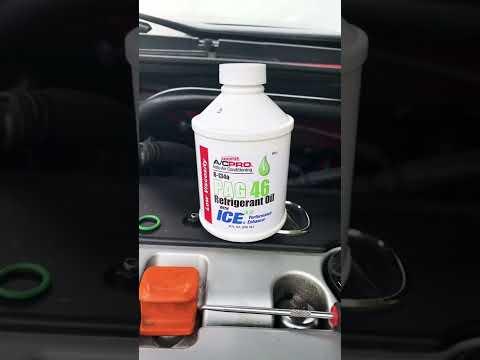

Step 7: Set the correct compressor oil amount

• Drain the old compressor oil into a measuring container.
• Drain the new compressor (some are shipped with oil) and measure what comes out.
• Add PAG A/C oil (Hyundai-compatible) to the new compressor equal to the amount you measured from the old compressor (accounting for what you drained from the new one).
• Too much oil reduces cooling and can damage parts.

Step 8: Install the new compressor and reconnect everything

• Position the compressor and start all mounting bolts by hand.
• Tighten mounting bolts with a 14mm socket, then torque wrench (5-60 Nm): Torque to 25 Nm (18 ft-lbs).
• Install new O-rings on the lines using an O-ring pick set and lubricate with PAG A/C oil (Hyundai-compatible).
• Reinstall the line retaining bolt(s) using a 10mm socket: Torque to 9.8 Nm (7.2 ft-lbs).
• Reconnect the electrical connector by hand until it clicks.

Step 9: Reinstall the belt and splash shield

• Route the belt using your photo and slip it on using a serpentine belt tool or 17mm socket.
• Double-check the belt is fully seated in every pulley groove.
• Reinstall the splash shield using a 10mm socket and clips with a trim clip removal tool: Torque to 7-9 Nm (62-80 in-lbs).

Step 10: Evacuate (vacuum) and recharge the system

• Connect the A/C manifold gauge set for R-1234yf (specialty).
• Pull a deep vacuum using an A/C vacuum pump (specialty) for at least 30-45 minutes.
• Close valves and verify vacuum holds for 10-15 minutes (this checks for leaks).
• Recharge by weight using a refrigerant scale (specialty) with R-1234yf refrigerant to the exact amount listed on the under-hood A/C label.
• A vacuum pump removes air and moisture.

Step 11: Leak-check

• With the engine running and A/C on MAX, check fittings using an electronic leak detector (specialty).
• Confirm the compressor engages and the air gets cold.

---

✅ After Repair

• Start the engine and run A/C MAX for 10 minutes; verify steady cold air and no abnormal noises.
• Check the belt tracking visually; it should run centered on pulleys.
• Recheck for leaks around the compressor line manifold after the first drive.

---
