🔧 F-150 - Rear Window Regulator Replacement

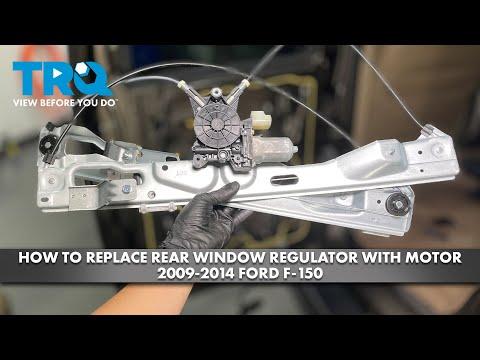

The rear window regulator is the cable-and-track assembly inside the rear door that moves the glass up and down. Replacing it requires removing the rear door trim panel, securing the glass in the up position, then swapping the regulator (and possibly the motor) and reassembling.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (one door)

---

⚠️ Safety & Precautions

• ⚠️ Keep fingers clear of the glass and regulator cables; they can pinch hard.
• ⚠️ Support the window glass before loosening the clamps; the glass can drop suddenly.
• ⚠️ If you unplug the window motor, keep the key OFF to avoid accidental movement.
• ⚠️ Battery disconnect is recommended if you’re worried about accidental switch activation.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Trim removal tool set
• Phillips screwdriver
• 7mm socket
• 8mm socket
• 10mm socket
• 1/4" drive ratchet
• 3" socket extension
• Torque wrench (in-lb or low Nm range)
• Needle-nose pliers
• Painters tape (2")
• Work gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear window regulator - Qty: 1
• Rear window regulator motor - Qty: 1 (only if needed)
• Rear door trim panel clips - Qty: 1 set (recommended)
• Butyl tape (water shield adhesive) - Qty: 1 (if the vapor barrier won’t reseal)

---

📋 Before You Begin

• Park your F-150 on level ground and set the parking brake.
• Open the rear door fully for working space.
• Lower the rear window until the glass-to-regulator clamps are accessible through the door access holes (if the regulator still moves).
• If the regulator is jammed and the glass won’t move, plan to remove the panel first and then move the glass by hand.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Answer these two quick questions (so the steps match your exact setup)

• Which rear door are you working on: left rear or right rear?
• Are you replacing regulator only or regulator + motor (as one assembly)?

Step 2: Remove the rear door trim panel

• Use a trim removal tool set to carefully pop off the small trim cover behind the interior door handle.
• Remove the screw(s) using a Phillips screwdriver or 7mm socket (varies by door panel).
• Remove the screws in the armrest/pull handle pocket using a 7mm socket and 1/4" drive ratchet.
• Use the trim removal tool set to pop the panel clips around the edges, then lift the panel straight up and off the window ledge.
• Unplug electrical connectors (window switch, speaker) by hand; use needle-nose pliers only if a tab is stubborn. Press the tab—don’t yank wires.

Step 3: Remove the vapor barrier (water shield)

• Peel the plastic vapor barrier back slowly by hand.
• If the adhesive strings, use the trim removal tool set to help separate it without tearing.
• If it won’t stick later, plan to use butyl tape (water shield adhesive) during reassembly.

Step 4: Support the window glass

• Raise the glass fully by hand (if possible) and hold it in the up position.
• Use painters tape (2") across the top of the door frame and onto the glass (2–3 strips) to keep the glass from dropping.
• Wear work gloves and safety glasses while working around the glass edges.

Step 5: Disconnect the glass from the regulator

• Through the access holes, locate the glass clamps (the points where the regulator attaches to the bottom of the glass).
• Use a 10mm socket, 3" socket extension, and 1/4" drive ratchet to loosen/remove the clamp bolts.
• Once loose, confirm the glass is still secured with painters tape (2").

Step 6: Remove the regulator (and motor if replacing)

• Unplug the window motor connector by hand.
• Remove the regulator mounting bolts using a 10mm socket, 3" socket extension, and 1/4" drive ratchet.
• If swapping the motor onto the new regulator, remove the motor fasteners using an 8mm socket (some versions vary), then transfer the motor to the new regulator.
• Carefully maneuver the regulator out through the largest door opening. Watch the cable ends.

Step 7: Install the new regulator

• Slide the new regulator into the door and align it with the mounting holes by hand.
• Start all mounting bolts by hand first, then snug them with a 10mm socket and 1/4" drive ratchet.
• Tighten fasteners using a torque wrench (in-lb or low Nm range) to the correct spec for your exact rear door regulator/motor fasteners.

Step 8: Reattach the glass to the regulator

• Lower the regulator attachment points until they line up with the glass clamps (plug in the motor temporarily and use the switch if needed).
• Remove and reapply painters tape (2") as needed so the glass can settle into the clamps safely.
• Install/tighten the clamp bolts using a 10mm socket and finish with the torque wrench (in-lb or low Nm range) to the correct spec.

Step 9: Function test before reassembly

• Plug in all connectors and run the window up/down using the switch.
• Listen for popping/clicking and watch for the glass tilting; if it tilts, loosen clamps slightly and re-center the glass, then retorque.

Step 10: Reinstall the vapor barrier and door panel

• Press the vapor barrier back into place by hand; use butyl tape (water shield adhesive) if it won’t seal.
• Reconnect door panel electrical connectors by hand.
• Hang the door panel on the top window ledge, then press clips in around the perimeter using your palm.
• Reinstall screws using a 7mm socket or Phillips screwdriver (where applicable).

---

✅ After Repair

• Cycle the rear window fully down and fully up 5–10 times to confirm smooth movement.
• Check that the door locks, speaker, and window switch work normally.
• Inspect for wind noise or water leaks later; the vapor barrier must seal fully.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor)

DIY Cost: $90-$250 (parts only)

You Save: $260-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
