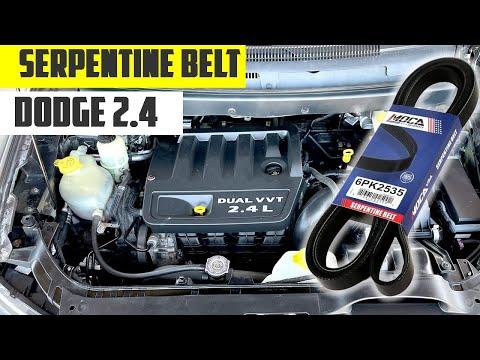

🔧 Journey - Serpentine Belt Replacement

The serpentine belt drives accessories like the alternator and A/C. If it’s cracked, noisy, or slipping, replacing it prevents breakdowns and charging/overheating issues.

Difficulty Level: Intermediate | Estimated Time: 0.8-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool completely before working near the radiator and exhaust.
• ⚠️ Keep fingers and tools away from pulleys; never work with the engine running.
• ⚠️ Support the vehicle with jack stands; never rely on a floor jack alone.
• ⚠️ If you remove the wheel, set the parking brake and chock the rear wheels.
• 🔋 Battery disconnect is not required, but avoid shorting the alternator wiring with tools.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 21mm socket
• 3/8" drive ratchet
• 3/8" drive breaker bar
• 3/8" drive extension set (3"-6")
• 15mm socket
• Flat trim clip tool
• Torque wrench (20-200 Nm range)
• Work light
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt (accessory drive belt) - Qty: 1
• Fender liner / splash shield clips - Qty: 2-6

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Place wheel chocks behind both rear tires.
• Open the hood and locate the belt routing diagram (often on the radiator support). If missing, take a clear photo of the belt routing before removal.
• Tip: Draw the routing on paper first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift the front-right corner

• Use a floor jack (rated 2-ton minimum) to lift the front-right jacking point.
• Set the vehicle onto jack stands (rated 2-ton minimum) before working in the wheel well.

Step 2: Remove the front-right wheel

• Use a 21mm socket with a 3/8" drive breaker bar to loosen the lug nuts, then remove them.
• Remove the wheel and set it aside.
• When reinstalling later: Torque to 135 Nm (100 ft-lbs) using a torque wrench (20-200 Nm range).

Step 3: Open access to the belt (splash shield / liner)

• Use a flat trim clip tool to remove the push-pins/clips from the front-right inner fender liner / lower splash shield area.
• Pull the liner back enough to see the belt and the belt tensioner (spring-loaded arm with a pulley).
• Tip: Work light makes this much easier.

Step 4: Relieve belt tension

• Install a 15mm socket on the tensioner bolt head using a 3/8" drive ratchet (add a 3/8" drive extension set (3"-6") if needed).
• Rotate the tensioner to release tension (it will feel strong because it’s spring-loaded).
• Tensioner is spring-loaded: keep steady control.

Step 5: Remove the old belt

• While holding the tensioner rotated with the 15mm socket and 3/8" drive ratchet, slip the belt off the easiest-to-reach pulley (usually an upper smooth pulley).
• Slowly release the tensioner back to its resting position.
• Remove the belt from the remaining pulleys and take it out through the wheel well.

Step 6: Inspect pulleys and tensioner

• Spin each pulley by hand (alternator, idler, tensioner pulley, A/C). They should spin smoothly and quietly.
• Wiggle each pulley gently. Any looseness, grinding, or wobble means that part may need replacement.
• Check the tensioner pulley surface for cracks or a “wavy” feel.

Step 7: Route the new belt

• Compare the new belt length to the old belt to confirm it’s the same.
• Route the new belt around the pulleys following the under-hood routing diagram.
• Make sure the belt ribs sit fully inside the grooved pulleys (no ribs hanging off an edge).
• Tip: Leave an easy pulley for last.

Step 8: Apply tension and seat the belt

• Use the 15mm socket and 3/8" drive ratchet to rotate the tensioner again.
• Slip the belt fully onto the last pulley, then slowly release the tensioner.
• Visually check every pulley: the belt must be centered and fully seated on each one.

Step 9: Reinstall the liner/splash shield and wheel

• Reposition the liner/splash shield and reinstall clips using the flat trim clip tool.
• Reinstall the wheel and hand-thread lug nuts.
• Lower the vehicle off the jack stands (rated 2-ton minimum) using the floor jack (rated 2-ton minimum).
• Use a torque wrench (20-200 Nm range) and 21mm socket to tighten lug nuts in a star pattern: Torque to 135 Nm (100 ft-lbs).

---

✅ After Repair

• Start the engine and let it idle for 30-60 seconds while you watch the belt path (from a safe distance).
• Listen for squeal, slapping, or chirping. Shut off immediately if the belt walks off a pulley.
• Turn A/C on and headlights on; confirm no belt noise under load.
• Recheck belt seating after a short 5-10 minute drive.

---

💰 DIY vs Shop Cost

Shop Cost: $140-$280 (parts + labor)

DIY Cost: $25-$60 (parts only)

You Save: $115-$220 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.5 hours.

---
