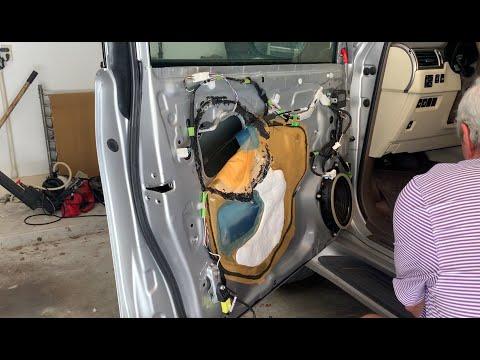

🔧 GX460 - Front Door Lock Actuator Replacement

On your GX460, the “door lock actuator” is built into the door latch assembly. Replacing it means removing the interior door panel, peeling back the moisture barrier, unplugging the latch wiring, then swapping the latch/actuator unit.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative terminal before working in the door—there’s a side airbag in the door and you don’t want an accidental deployment.
• ⚠️ After disconnecting the battery, wait at least 90 seconds before unplugging any connectors in the door.
• ⚠️ Keep the window fully up while you work to avoid broken glass and extra disassembly.
• ⚠️ Use plastic trim tools—metal screwdrivers easily crack trim and scratch paint.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 6" socket extension (1/4")

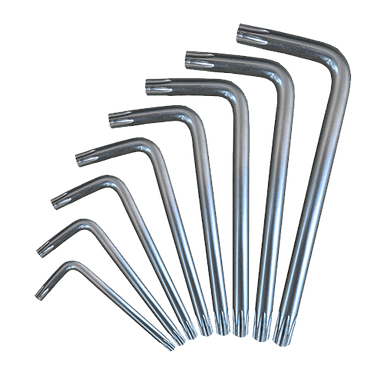

• Torx T30 driver
• Phillips #2 screwdriver
• Plastic trim removal tool set
• Small pick tool
• Needle-nose pliers
• Magnetic pickup tool
• Painter’s tape
• Torque wrench (in-lb)
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door latch/lock actuator assembly - Qty: 1
• Door trim panel retainer clips - Qty: 6-12
• Moisture barrier butyl tape - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and turn the ignition OFF.
• Lower the window slightly, then raise it fully (so it’s firmly seated at the top).
• Use a 10mm socket to disconnect the battery negative terminal, then wait 90 seconds.
• Apply painter’s tape along the door edge/painted areas near where you’ll work. Prevents accidental scratches.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Assumption: The actuator is integrated into the latch (common on GX460); fastener torques can vary by fastener/location—use a torque wrench where listed and match the “snug” feel of factory fasteners if your service info differs.

Step 1: Remove the front door switch panel

• Use a plastic trim removal tool set to gently pry up the window/lock switch panel from the armrest.
• Unplug the electrical connectors by pressing the tab and pulling straight out (no twisting). Use a small pick tool if a tab is stubborn.

Step 2: Remove hidden screws from the door panel

• Look behind the inside door pull/handle area for trim covers; pop covers off using a plastic trim removal tool set.
• Remove the door panel screws using a Phillips #2 screwdriver (and a 10mm socket if equipped).
• Keep screws organized by location. They’re not always the same length.

Step 3: Remove the interior door panel

• Starting at the bottom edge, use a plastic trim removal tool set to pop the panel clips free.
• Once clips are loose, lift the whole door panel straight up to unhook it from the top window ledge.
• Disconnect any remaining connectors (courtesy light, etc.). Use needle-nose pliers only if needed to release stubborn clip tabs.

Step 4: Remove the moisture barrier (vapor sheet)

• Carefully peel the plastic moisture barrier back—use your fingers first, then a plastic trim removal tool set.
• Try not to tear it; you must reseal it to prevent wind noise and water leaks.
• If the butyl is messy or won’t reseal, plan to use moisture barrier butyl tape during reassembly.

Step 5: Disconnect the latch wiring connector

• Locate the latch connector near the rear edge of the door (inside). Press the tab and unplug it.
• If the tab won’t release, use a small pick tool gently—don’t break the locking tab.

Step 6: Disconnect the inside handle cable/rod

• Find the inside door handle cable/rod leading to the latch.
• Release the plastic retainer clip (it flips off the rod/cable end), using a small pick tool if needed.
• Lift the rod/cable end out of its hole. Take a photo first for routing.

Step 7: Remove the latch/actuator from the door

• At the door’s rear edge, remove the latch fasteners using a Torx T30 driver.
• Support the latch with your free hand so it doesn’t drop inside the door.
• Work the latch out through the access opening. Use a magnetic pickup tool if a fastener is dropped inside the door.
• Torque to 7.5 Nm (66 in-lbs) for the latch Torx fasteners (typical for this size).

Step 8: Transfer any brackets/clips (if equipped)

• Compare the old and new latch assemblies.
• Move over any foam pads, cable brackets, or clip holders using a Phillips #2 screwdriver or 10mm socket (as equipped).
• Torque to 5 Nm (44 in-lbs) for small interior fasteners (typical).

Step 9: Install the new latch/actuator

• Feed the new latch into the door and align it to the mounting holes.
• Install the Torx fasteners by hand first to avoid cross-threading, then tighten using a Torx T30 driver.
• Torque to 7.5 Nm (66 in-lbs).

Step 10: Reconnect rods/cables and wiring

• Reconnect the inside handle rod/cable end, then lock the retaining clip back into place.
• Plug in the latch electrical connector until it clicks.
• Gently tug each connection to confirm it’s locked.

Step 11: Re-seal the moisture barrier

• Press the moisture barrier back into the butyl all the way around the edges.
• If needed, apply moisture barrier butyl tape to restore a full seal.

Step 12: Reinstall the door panel

• Reconnect all door panel electrical connectors.
• Hang the top of the panel on the window ledge, then press the panel inward to seat the clips.
• Reinstall screws using a Phillips #2 screwdriver and/or 10mm socket.
• Torque to 5 Nm (44 in-lbs) for trim screws (typical).

Step 13: Reconnect the battery

• Reconnect the battery negative terminal using a 10mm socket.
• Torque to 5 Nm (44 in-lbs) (light clamp torque—do not over-tighten).

---

✅ After Repair

• Test the lock function using the key fob and the interior lock switch (lock/unlock repeatedly).
• Test both the inside and outside door handles to confirm the door opens smoothly.
• Confirm the door locks/unlocks with the key and that the door ajar light behaves normally.
• If the auto-up/down window feature acts odd after battery disconnect, cycle the window fully down then fully up using the driver switch (re-initializes on many Toyota/Lexus systems).
• Listen for water/air noise on a short drive—if you hear it, recheck the moisture barrier seal.

---
