🔧 Outback - Front Window Regulator Replacement

The front window regulator is the cable-and-track assembly that moves the glass up and down. Replacing it means removing the inner door panel, securing the glass, unbolting the regulator (and sometimes transferring the window motor), then reassembling and testing.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

Quick questions (so I guide you correctly): Which front door are you doing (driver or passenger)? And did your new regulator come with the window motor or is it regulator-only?

---

⚠️ Safety & Precautions

• ⚠️ Keep fingers clear of the regulator cables and scissor points while the glass is loose.
• ⚠️ Support the window glass with tape before unbolting it, so it can’t drop and shatter.
• ⚠️ Disconnect the battery negative cable if you’ll unplug the window switch or motor connectors.
• ⚠️ Don’t pry on the glass or hit the door inner metal; sharp edges are common.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket

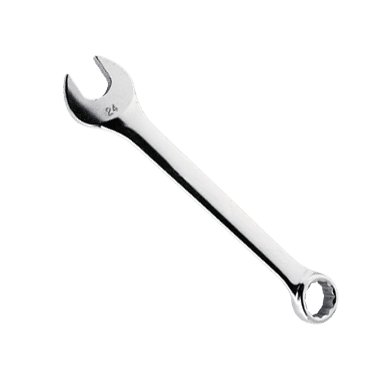

• 10mm wrench
• 1/4" ratchet
• 3" extension
• Phillips #2 screwdriver
• Flat trim removal tool
• Pick tool
• Needle-nose pliers
• Torque wrench (inch-pound)
• Painters tape (2" wide)
• Work gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator (driver or passenger) - Qty: 1
• Front window motor - Qty: 1 (only if not reusing yours)
• Door panel retainer clips - Qty: 6-10 (as needed)
• Butyl tape (door moisture barrier adhesive) - Qty: 1 (as needed)

---

📋 Before You Begin

• Park on level ground and remove the key.
• Lower the window until you can access the glass-to-regulator clamps (if it still moves). If it’s stuck, you’ll free it later through the service holes.
• Use a flat trim removal tool (a plastic pry tool) to avoid cracking the door panel.
• If you’ll unplug switches/motor: use a 10mm socket to disconnect the battery negative cable and isolate it so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the front door trim panel

• Use a pick tool to pop off the small plastic covers hiding screws (typically near the inside door handle and armrest).
• Remove the door panel screws with a Phillips #2 screwdriver.
• Use a flat trim removal tool to pop the panel clips around the edges (work from the bottom up).
• Lift the panel straight up to unhook it from the window ledge.
• Unplug electrical connectors with a pick tool (press the locking tab first), then set the panel aside.

Step 2: Peel back the moisture barrier

• Carefully peel the plastic moisture barrier back by hand. If the butyl adhesive strings, use a pick tool to separate it cleanly.
• Stick it back later to prevent leaks.

Step 3: Secure the window glass

• Use painters tape (2" wide) to tape the glass to the door frame (run 2–3 strips from outside of glass over the top of the door frame to the inside).
• If the glass is already down, manually raise it into the fully-up position and tape it.

Step 4: Separate the glass from the regulator

• Look through the door’s service holes and find the two glass clamp points.
• Use a 10mm socket to loosen/remove the glass clamp bolts.
• Once loose, verify the glass is free from the regulator and still held up by the tape.
• Torque on reassembly: Torque to 7.5 Nm (66 in-lbs)

Step 5: Unbolt and remove the regulator assembly

• Unplug the window motor connector (if accessible) using a pick tool.
• Use a 10mm socket and 3" extension to remove the regulator mounting bolts.
• Maneuver the regulator out through the large access opening in the door.
• Torque on reassembly: Torque to 7.5 Nm (66 in-lbs)

Step 6: If needed, transfer the window motor to the new regulator

• If your replacement is regulator-only, use a 10mm socket (or the fastener type supplied on your unit) to remove the motor fasteners from the old regulator.
• Install the motor onto the new regulator and tighten evenly.
• Torque: Torque to 7.5 Nm (66 in-lbs)

Step 7: Install the new regulator

• Feed the new regulator into the door through the access opening.
• Start all regulator bolts by hand, then tighten with a 10mm socket.
• Torque: Torque to 7.5 Nm (66 in-lbs)

Step 8: Attach the glass to the regulator

• Lower the regulator carrier/clamps into position (if the battery is connected, you can briefly plug in the switch and motor to move it; otherwise, move the track by hand as allowed).
• Remove some tape as needed, lower the glass carefully into the clamps, and reinstall the clamp bolts using a 10mm socket.
• Torque: Torque to 7.5 Nm (66 in-lbs)

Step 9: Function test before closing the door up

• Reconnect the battery negative cable using a 10mm socket (if disconnected).
• Plug in the window switch connector(s) and run the window up/down while watching the track (keep hands clear).
• If the glass tilts, stop and re-seat the glass in the clamps, then retest.

Step 10: Reinstall the moisture barrier and door panel

• Press the moisture barrier back onto the butyl. Add butyl tape if it won’t stick.
• Reconnect all door panel connectors.
• Hang the panel on the top lip first, then press clips in around the edges by hand.
• Reinstall screws using a Phillips #2 screwdriver, then snap the covers back on.

---

✅ After Repair

• Run the window fully down, then fully up several times to confirm smooth travel and no clicking/popping.
• Check that the door locks, handle, and mirror controls work (if equipped).
• If the auto-up/down acts weird: hold the switch in the UP position for ~2 seconds after it reaches the top, then repeat once (relearn on many Subarus).
• After a car wash or rain, verify the door isn’t leaking (moisture barrier fully sealed).

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor, per front door)

DIY Cost: $90-$250 (parts only, per front door)

You Save: $260-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
